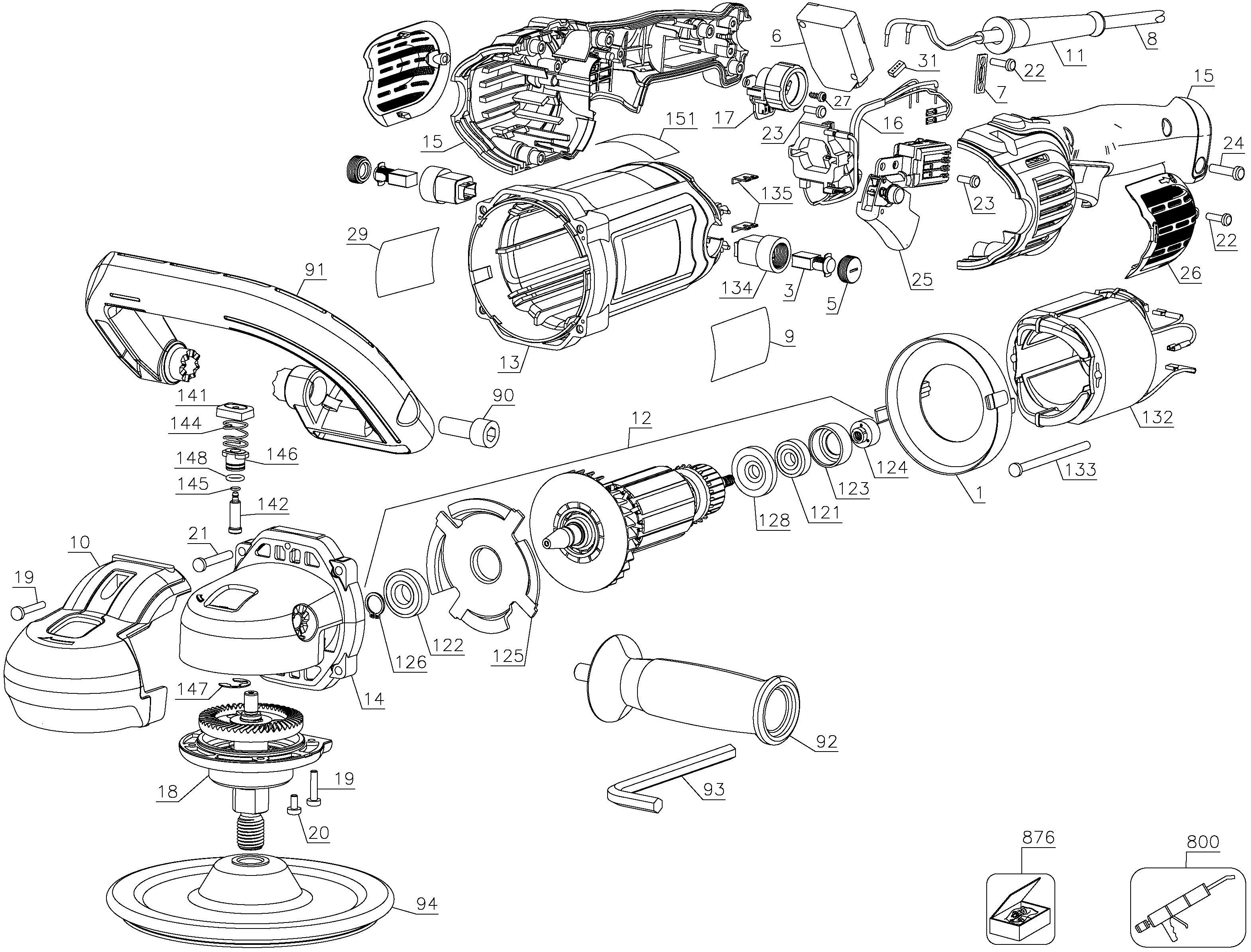

DWP849X POLISHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N024146 | 1 | BAFFLE FAN | B3 | |||
| 3 | N398321 | 1 | BRUSH PAIR 120V | B3 | |||
| 5 | N024448 | 2 | BRUSH CAP | B3 | |||
| 6 | N089178 | 1 | CONTROL MODULE SA | B3 | |||
| 7 | 930103-00 | 1 | CORD CLAMP | B3 | |||
| 8 | N060518 | 1 | CORD,PWR.SUPPLY | B3 | |||
| 9 | 605523-00 | 1 | IDENTITY LABEL | B3 | |||
| 10 | N048091 | 1 | BUMPER | B3 | |||
| 11 | 330005-01 | 1 | CORD PROTECTOR | B3 | |||
| 12 | N398320 | 1 | ARMATURE 120V | WUP | B3 | ||
| 13 | N020976 | 1 | FIELDCASE | DATE CODE LOCATED BELOW NAMEPLATE | B3 | ||
| 14 | N107294 | 1 | GEARCASE SA | PKGD N024747 | Incl. 141-148 | B3 | |
| 15 | N020852 | 1 | HANDLE SA | B3 | |||
| 16 | N084855 | 1 | WIRE HARNESS | B3 | |||
| 17 | N036455 | 1 | POTENTIOMETER SA | B3 | |||
| 18 | N107430 | 1 | GEAR & SPINDLE SA | 5/8-11 THD | B3 | ||
| 19 | 330045-06 | 5 | SCREW | B3 | |||
| 20 | 330045-44 | 2 | SCREW | B3 | |||
| 21 | 330019-45 | 4 | SCREW | B3 | |||
| 22 | 330019-02 | 4 | SCREW | B3 | |||
| 23 | 330019-01 | 2 | SCREW | B3 | |||
| 24 | 330019-13 | 5 | SCREW | M4X19 T20 | B3 | ||
| 25 | N024326 | 1 | SWITCH | B3 | |||
| 26 | N048024 | 2 | FILTER/DEFLECTOR | B3 | |||
| 27 | N086775 | 1 | SCREW | B3 | |||
| 29 | N081480 | 1 | NAMEPLATE | B3 | |||
| 31 | N401529 | 1 | SEAL | DUST SEAL | B3 | ||
| 90 | 383450-00 | 2 | SCREW | B3 | |||
| 91 | N034970 | 1 | HANDLE UPPER | B3 | |||
| 92 | N058043 | 1 | SIDE HANDLE | B3 | |||
| 93 | N080692 | 1 | HEX KEY 8 MM | 8MM x 120MM | B3 | ||
| 94 | 146546-01 | 1 | PAD | 6.5 INCH, RUBBER | B3 | ||
| 121 | 330003-05 | 1 | BEARING | B3 | |||
| 122 | N079012 | 1 | BEARING | B3 | |||
| 123 | N101909 | 1 | BEARING HOLDER | B3 | |||
| 124 | N027942 | 1 | MAGNET | B3 | |||
| 125 | N022834 | 1 | RETAINING PLATE | B3 | |||
| 126 | N027674 | 1 | RETAINER | B3 | |||
| 128 | 393238-00 | 1 | SHIELD | B3 | |||
| 132 | N031494 | 1 | FIELD 120V | 120V | B3 | ||
| 133 | 330044-23 | 2 | SCREW | B3 | |||
| 134 | N172018 | 2 | BRUSH HOLDER | B3 | |||
| 135 | N034419 | 2 | TERMINAL | MALE | B3 | ||
| 141 | N046147 | 1 | LOCK BUTTON | SPINDLE | B3 | ||
| 142 | N027961 | 1 | LOCK PIN | SPINDLE | B3 | ||
| 144 | N073927 | 1 | SPRING | B3 | |||
| 145 | 603608-00 | 1 | O RING | B3 | |||
| 145 | N119059 | 1 | O RING | from d/c 2011-32 47 and after | B3 | ||
| 146 | N109692 | 1 | INSERT | from d/c 2011-32 47 and after | B3 | ||
| 146 | 5140153-20 | 1 | INSERT KIT | INCL 146,148 FOR DATE CODES UP TO 2011-31 | B3 | ||
| 147 | N100221 | 1 | RETAINER | B3 | |||
| 148 | N110454 | 1 | O RING | from d/c 2011-32 47 and after | B3 | ||
| 148 | 5140153-20 | 1 | INSERT KIT | B3 | |||
| 151 | N081343 | 1 | WARNING LABEL | B3 | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | B3 | ||
| 876 | N091711 | 1 | TUBE | PLASTIC | OPTIONAL: USED TO CENTER BONNET ON BACKING PAD | B3 |
