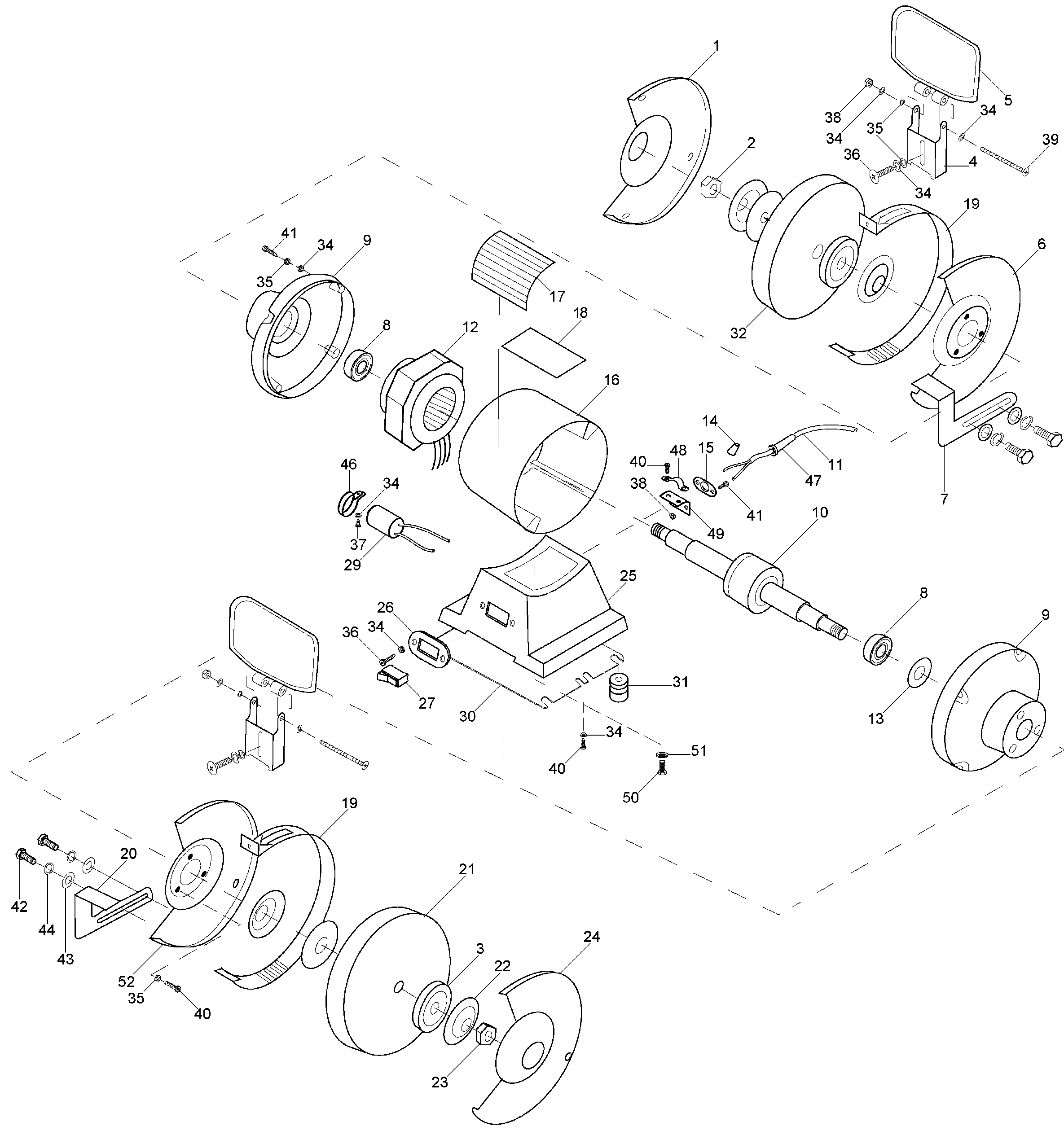

BT3600 BENCH GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140013-61 | 1 | GUARD LH | AR | |||
| 2 | 5140013-62 | 1 | NUT | AR | |||
| 3 | 5140013-63 | 1 | DISC | AR | |||
| 4 | 5140023-62 | 1 | BRACKET | AR | |||
| 5 | 186172-00 | 2 | SHIELD | AR | |||
| 6 | 5140013-66 | 1 | COVER LH | AR | |||
| 7 | 5140013-67 | 1 | TOOL REST LH | AR | |||
| 8 | 5140013-68 | 1 | BEARING,BALL | AR | |||
| 9 | 5140066-12 | 1 | HOUSING,BEARING | Aluminum | AR | ||
| 9 | 5140013-69 | 1 | HOUSING BEARING | Cast Iron | AR | ||
| 10 | 5140051-70 | 1 | ROTOR | AR | |||
| 11 | 5140013-71 | 1 | CORD SET | AR | |||
| 12 | 5140051-71 | 1 | STATOR | AR | |||
| 13 | 5140013-73 | 1 | WASHER | AR | |||
| 14 | 5140013-74 | 1 | CABLE CLAMP | AR | |||
| 15 | 5140013-75 | 1 | MOUNTING BRACKET | AR | |||
| 16 | 5140013-76 | 1 | HOUSING MOTOR | AR | |||
| 17 | 5140013-77 | 1 | IDENTITY LABEL | AR | |||
| 18 | 5140051-72 | 1 | NAME PLATE | AR | |||
| 19 | 5140013-79 | 1 | WHEEL GUIDE | AR | |||
| 20 | 5140013-80 | 1 | TOOL REST RH | AR | |||
| 21 | 5140013-81 | 1 | WHEEL GRINDING | 60 GRIT | AR | ||
| 22 | 5140013-82 | 1 | FLANGE | AR | |||
| 23 | 5140013-83 | 1 | NUT | AR | |||
| 24 | 5140013-84 | 1 | GUARD RH | AR | |||
| 25 | 5140013-85 | 1 | BASE | AR | |||
| 26 | 5140013-86 | 1 | SWITCH COVER | AR | |||
| 27 | 5140168-35 | 1 | SWITCH | AR | |||
| 29 | 5140013-89 | 1 | CAPACITOR | AR | |||
| 30 | 5140013-90 | 1 | BASEPLATE | AR | |||
| 31 | 5140013-91 | 1 | RUBBER BOOT | AR | |||
| 32 | 5140013-92 | 1 | WHEEL GRINDING | 30 Grit | AR | ||
| 34 | 5140023-73 | 31 | WASHER 5 MM | FLAT, 5MM | AR | ||
| 35 | 5140023-74 | 14 | WASHER SPRING | AR | |||
| 36 | 5140023-75 | 4 | SCREW | M5X8, PHILLIPS HEAD | AR | ||
| 37 | 5140023-76 | 1 | SCREW | M4X8, PHILLIPS HEAD | AR | ||
| 38 | 5140023-77 | 10 | NUT M5 | M5 | AR | ||
| 39 | 5140023-78 | 6 | SCREW | M5X45, PHILLIPS HEAD | AR | ||
| 40 | 5140013-60 | 1 | SCREW | AR | |||
| 41 | 5140014-01 | 1 | SCREW | AR | |||
| 42 | 5140014-02 | 1 | BOLT | AR | |||
| 43 | 5140014-03 | 1 | WASHER | AR | |||
| 44 | 5140013-64 | 1 | BOLT | AR | |||
| 46 | 5140023-79 | 1 | BRACKET | CAPACITOR | AR | ||
| 47 | 5140023-80 | 1 | CORD PROTECTOR | AR | |||
| 48 | 5140023-81 | 1 | CORD CLAMP | AR | |||
| 49 | 5140023-82 | 1 | PLATE | AR | |||
| 50 | 5140023-83 | 2 | BOLT | M6X15 | AR | ||
| 51 | 5140023-84 | 2 | WASHER | 6MM | AR | ||
| 52 | 5140023-71 | 1 | COVER RH | WHEEL, RIGHT INNER | AR |
