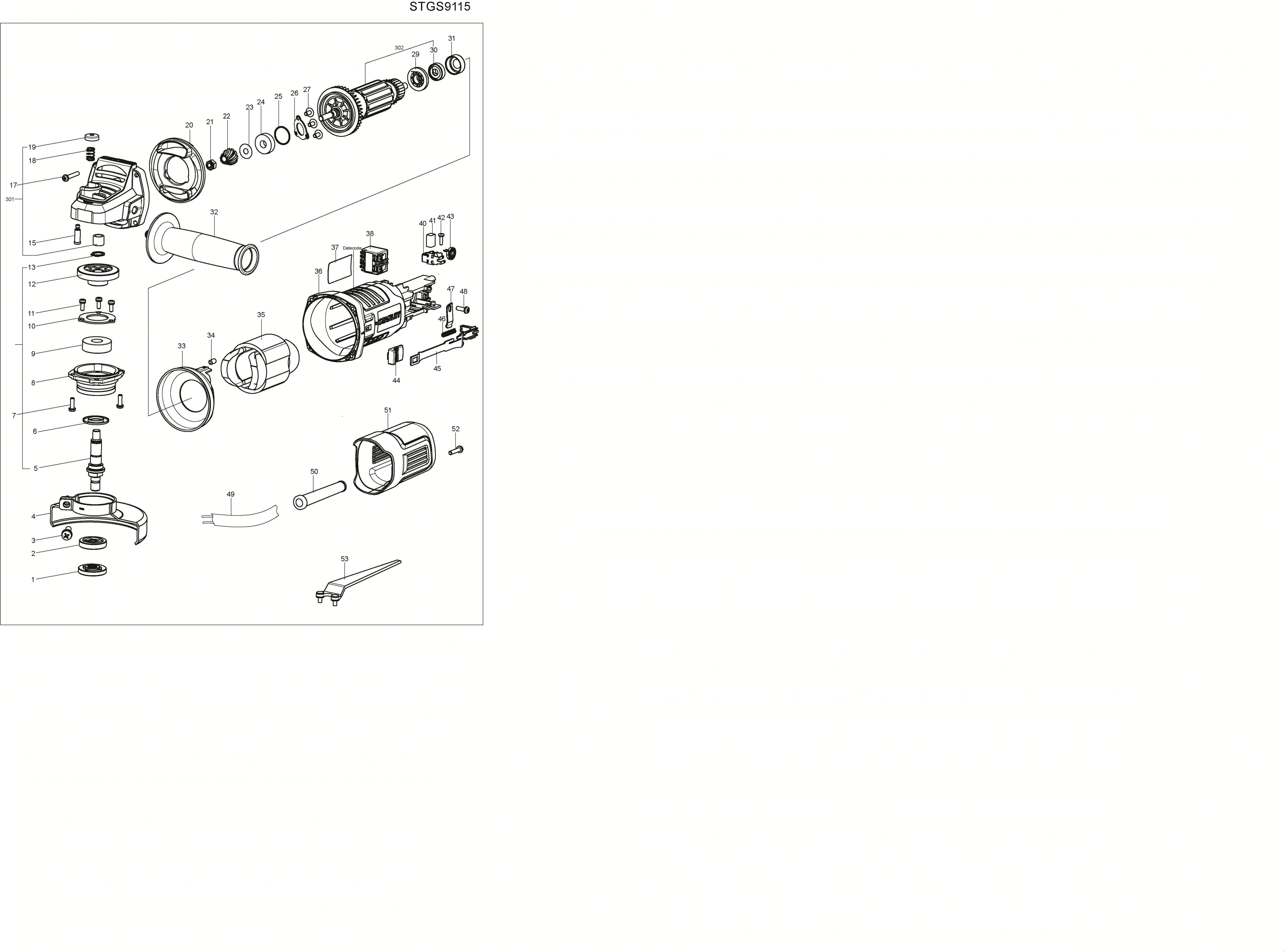

STGS9115 ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N862878 | 1 | OUTER FLANGE | B3 | |||
| 2 | N803472 | 1 | INNER FLANGE | B3 | |||
| 3 | N866043 | 1 | SCREW | B3 | |||
| 4 | 5140164-83 | 1 | GUARD | B3 | |||
| 5 | N801963 | 1 | SPINDLE | 5/8-11 THD | B3 | ||
| 6 | N494772 | 1 | COVER | B3 | |||
| 7 | 5140164-85 | 4 | SCREW | B3 | |||
| 8 | N866050 | 1 | GEARCASE COVER | B3 | |||
| 9 | 5140164-87 | 1 | BEARING | B3 | |||
| 10 | N787677 | 1 | BEARING PLATE | B3 | |||
| 11 | 5140165-35 | 3 | SCREW | B3 | |||
| 12 | N802377 | 1 | GEAR | B3 | |||
| 13 | N851381 | 1 | CIRCLIP | B3 | |||
| 15 | N743788 | 1 | LOCK PIN | B3 | |||
| 17 | N802853 | 4 | SCREW | B3 | |||
| 18 | 5140164-94 | 1 | SPRING | B3 | |||
| 19 | 5140164-95 | 1 | LOCK BUTTON | B3 | |||
| 20 | N726572 | 1 | BAFFLE | B3 | |||
| 21 | N867028 | 1 | NUT | B3 | |||
| 22 | N802378 | 1 | PINION | B3 | |||
| 23 | 5140164-99 | 1 | WASHER | B3 | |||
| 24 | N793193 | 1 | BEARING | B3 | |||
| 25 | N880529 | 1 | O RING | B3 | |||
| 26 | N826429 | 1 | BEARING PLATE | B3 | |||
| 27 | N826930 | 3 | SCREW | B3 | |||
| 29 | 5140246-78 | 1 | INSULATOR | B3 | |||
| 30 | N793199 | 1 | BEARING | B3 | |||
| 31 | 5140165-05 | 1 | SLEEVE BEARING | B3 | |||
| 32 | N865425 | 1 | SIDE HANDLE | B3 | |||
| 33 | N757714 | 1 | BAFFLE | B3 | |||
| 34 | 5140246-79 | 2 | RUBBER PIN | B3 | |||
| 35 | N794279 | 1 | FIELD SA | B3 | |||
| 36 | N703582 | 1 | FIELD CASE | B3 | |||
| 37 | N845764 | 1 | RATING LABEL | STGS9115-B3 TYPE 3 | B3 | ||
| 38 | N622597 | 1 | SWITCH | B3 | |||
| 40 | N767128 | 2 | BRUSH HOLDER | B3 | |||
| 41 | N910754 | 1 | BRUSH PAIR | B3 | |||
| 42 | N810030 | 2 | SCREW | B3 | |||
| 43 | 5140165-16 | 1 | BRUSH SPRING | B3 | |||
| 44 | 5140165-67 | 1 | BUTTON | B3 | |||
| 45 | N745222 | 1 | ARM LINK | B3 | |||
| 46 | 5140165-10 | 1 | SPRING | B3 | |||
| 47 | 5140165-14 | 1 | CORD CLAMP | B3 | |||
| 48 | 5140156-10 | 1 | SCREW | B3 | |||
| 49 | 5140165-63 | 1 | CORDSET | B3 | |||
| 50 | N802854 | 1 | CORD PROTECTOR | B3 | |||
| 51 | N703584 | 1 | END CAP | B3 | |||
| 52 | 5140155-81 | 1 | SCREW | B3 | |||
| 53 | 5140179-53 | 1 | WRENCH | B3 | |||
| 301 | N875885 | 1 | GEARCASE SA | B3 | |||
| 302 | N910747 | 1 | ARMATURE SA | LV | B3 |
