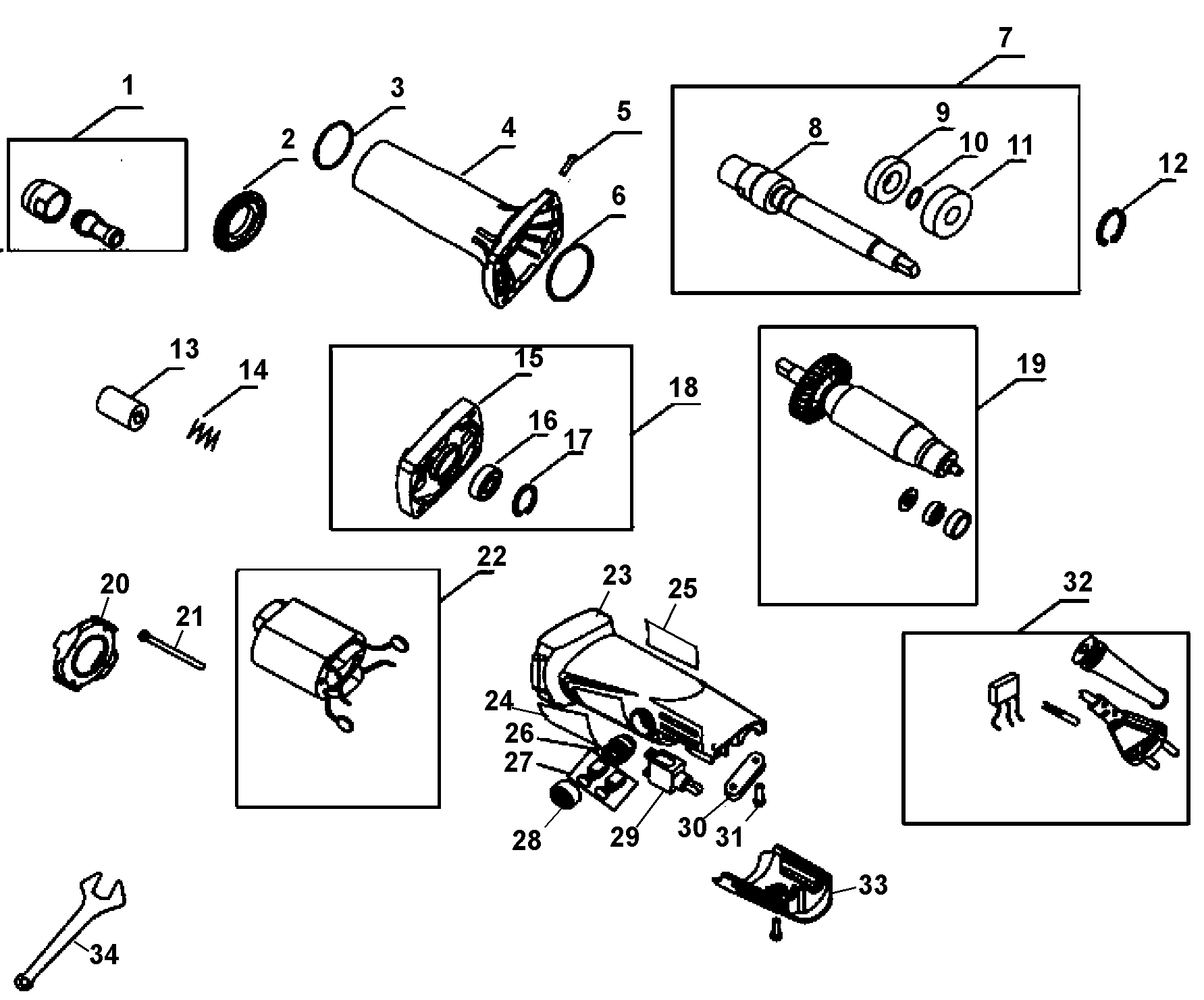

STEL861 DIE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90593441 | 1 | CHUCK SA | B3 | |||
| 1 | 5140174-73 | 1 | COLLET CHUCK ASSY | B3 | |||
| 2 | 90593469 | 1 | CLAMP | B3 | |||
| 3 | 90593470 | 1 | O RING | B3 | |||
| 4 | 90593471 | 1 | HOUSING FRONT | B3 | |||
| 5 | 90593472 | 4 | SCREW | B3 | |||
| 6 | 90593473 | 1 | O RING | B3 | |||
| 7 | 90593474 | 1 | SPINDLE SA | B3 | |||
| 8 | 90593475 | 1 | SPINDLE | B3 | |||
| 9 | 90593476 | 1 | BEARING,BALL | B3 | |||
| 10 | 90593477 | 1 | CIRCLIP | B3 | |||
| 11 | 90593478 | 1 | BEARING,BALL | B3 | |||
| 12 | 90593479 | 1 | CIRCLIP | B3 | |||
| 13 | 90593480 | 1 | CONNECTOR | B3 | |||
| 14 | 90593481 | 1 | SPRING | B3 | |||
| 15 | 90593482 | 1 | COVER | B3 | |||
| 16 | 90593483 | 1 | BEARING,BALL | B3 | |||
| 17 | 90593484 | 1 | CIRCLIP | B3 | |||
| 18 | 90593485 | 1 | COVER SA | B3 | |||
| 19 | 5140174-74 | 1 | ARMATURE ASSY. | B3 | |||
| 20 | 5140174-75 | 1 | FAN | B3 | |||
| 21 | 90593488 | 2 | SCREW | B3 | |||
| 22 | 5140174-76 | 1 | FIELD | B3 | |||
| 23 | 90593490 | 1 | HOUSING MOTOR | B3 | |||
| 24 | 5140174-77 | 1 | RATING LABEL | B3 | |||
| 25 | 90593492 | 1 | IDENTITY LABEL | B3 | |||
| 26 | 90593493 | 2 | BRUSH HOLDER | B3 | |||
| 27 | 5140174-82 | 1 | BRUSH SET | B3 | |||
| 28 | 90593495 | 2 | BRUSH COVER | B3 | |||
| 29 | 90593496 | 1 | SWITCH | B3 | |||
| 30 | 90593497 | 1 | CLAMP | B3 | |||
| 31 | 90593498 | 3 | SCREW | B3 | |||
| 32 | 5140160-32 | 1 | CORD SET | B3 | |||
| 33 | 90593500 | 1 | COVER REAR | B3 | |||
| 34 | 90593501 | 1 | SPANNER | B3 |
