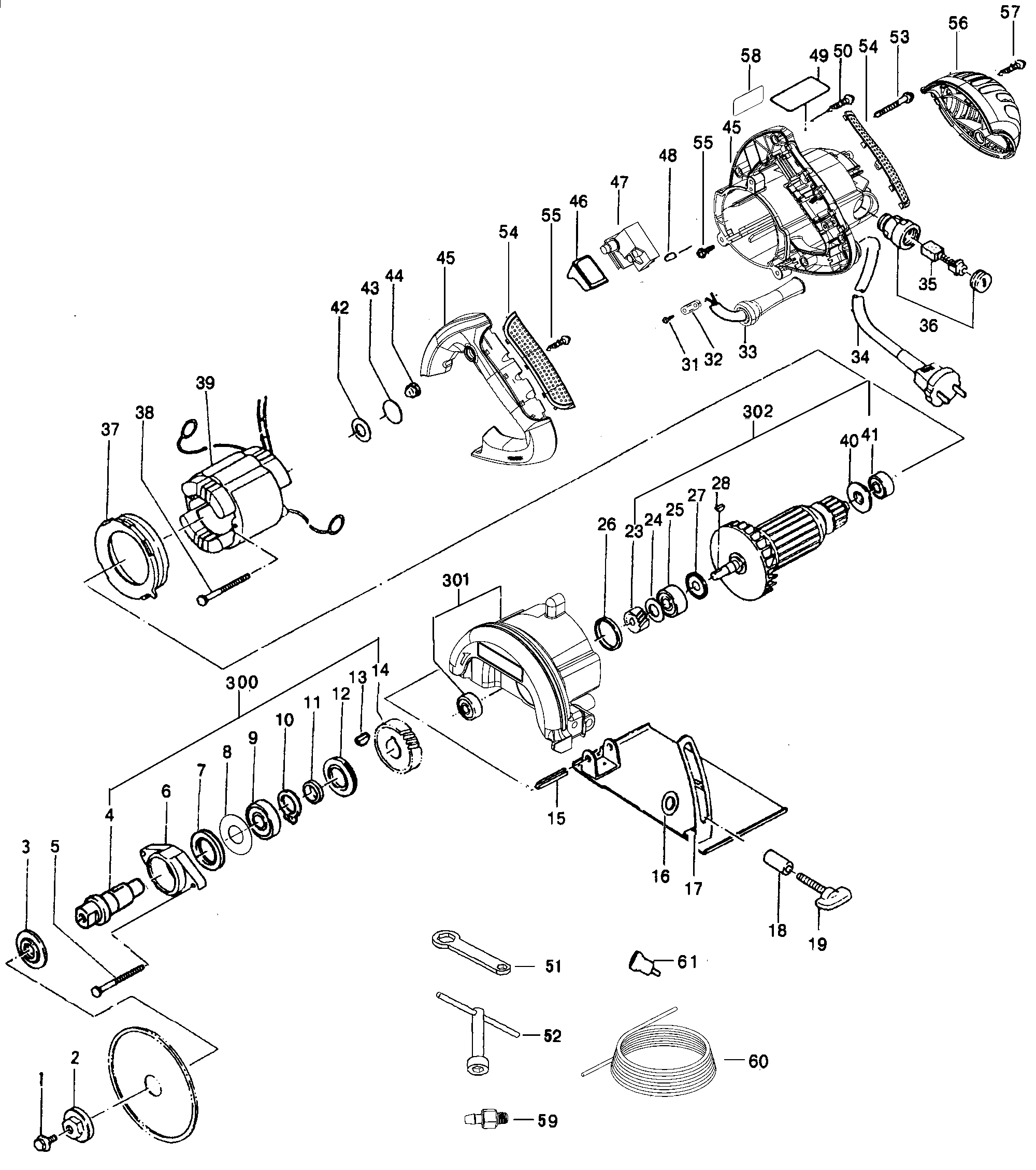

STSP125 TILE CUTTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140155-56 | 1 | SCREW | B3 | |||
| 2 | 5140155-57 | 1 | OUTER FLANGE | B3 | |||
| 3 | 5140155-58 | 1 | INNER FLANGE | B3 | |||
| 4 | 5140155-59 | 1 | SPINDLE | B3 | |||
| 5 | 5140155-60 | 2 | SCREW | B3 | |||
| 6 | 5140155-61 | 1 | BEARING BLOCK | B3 | |||
| 7 | 5140155-62 | 1 | SEAL | B3 | |||
| 8 | 5140155-63 | 1 | WASHER | B3 | |||
| 9 | 5140155-64 | 1 | BEARING | B3 | |||
| 10 | 5140155-65 | 1 | CIRCLIP | B3 | |||
| 11 | 5140155-66 | 1 | RING | B3 | |||
| 12 | 5140155-67 | 1 | BEARING COVER | B3 | |||
| 13 | 5140155-68 | 1 | LOCK PIN | B3 | |||
| 14 | 5140155-69 | 1 | GEAR | B3 | |||
| 15 | 5140155-70 | 1 | COTTER PIN | B3 | |||
| 16 | 5140155-71 | 1 | WASHER | B3 | |||
| 17 | 5140155-72 | 1 | SHOE | B3 | |||
| 18 | 5140155-73 | 1 | SLEEVE | B3 | |||
| 19 | 5140155-74 | 1 | SCREW | B3 | |||
| 23 | 5140155-75 | 1 | PINION | B3 | |||
| 24 | 5140155-76 | 1 | WASHER | B3 | |||
| 25 | 5140155-77 | 1 | BEARING | B3 | |||
| 26 | 5140155-78 | 1 | RUBBER SEAL | B3 | |||
| 27 | 5140155-79 | 1 | WASHER | B3 | |||
| 28 | 5140155-80 | 1 | LOCK PIN | B3 | |||
| 31 | 5140155-81 | 2 | SCREW | B3 | |||
| 32 | 5140155-82 | 1 | CORD CLAMP | B3 | |||
| 33 | 5140155-83 | 1 | CORD PROTECTOR | B3 | |||
| 34 | 5140232-61 | 1 | CORDSET | B3 | |||
| 35 | 5140155-86 | 1 | BRUSH PAIR | B3 | |||
| 36 | N535231 | 1 | BRUSH & HOLDER SA | B3 | |||
| 37 | 5140155-88 | 1 | BAFFLE | B3 | |||
| 38 | 5140155-89 | 2 | SCREW | B3 | |||
| 39 | 5140155-91 | 1 | FIELD ASSY. | B3 | |||
| 40 | 5140155-92 | 1 | INSULATING WASHER | B3 | |||
| 41 | 5140155-93 | 1 | BEARING | B3 | |||
| 42 | 5140155-94 | 2 | WASHER | B3 | |||
| 43 | 5140155-95 | 1 | O-RING | B3 | |||
| 44 | 5140155-96 | 1 | NUT | B3 | |||
| 45 | 5140168-66 | 1 | HANDLE COVER | B3 | |||
| 46 | 5140155-98 | 1 | BOOT | B3 | |||
| 47 | 5140155-99 | 1 | SWITCH | B3 | |||
| 48 | 5140156-00 | 1 | PIN | B3 | |||
| 49 | 5140232-62 | 1 | RATING LABEL | B3 | |||
| 50 | 5140156-03 | 4 | SCREW | B3 | |||
| 51 | 5140156-04 | 1 | SPANNER | B3 | |||
| 52 | 5140156-05 | 1 | HEX KEY | B3 | |||
| 53 | 5140156-06 | 3 | SCREW | B3 | |||
| 54 | 5140168-69 | 1 | HOUSING ASSY. | B3 | |||
| 56 | 5140168-70 | 1 | END CAP | B3 | |||
| 57 | 5140156-10 | 2 | SCREW | B3 | |||
| 58 | 5140168-71 | 1 | LABEL | B3 | |||
| 300 | 5140156-15 | 1 | SPINDLE & GEAR ASSY. | B3 | |||
| 301 | 5140168-72 | 1 | GEARCASE ASSY | B3 | |||
| 302 | 5140168-73 | 1 | ARMATURE ASSY. | B3 |
