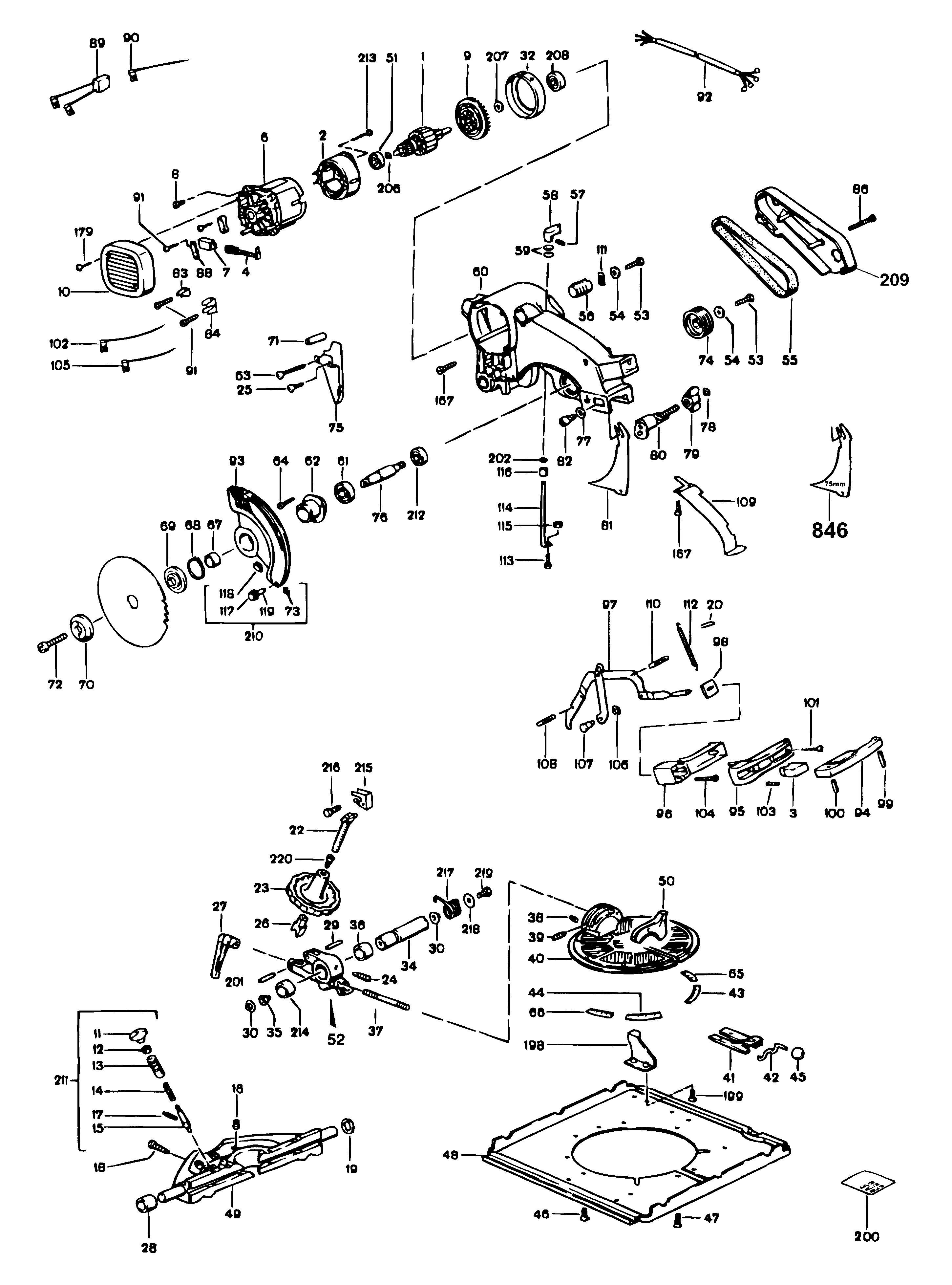

TGS170----E MOTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868495-00 | 1 | ARMATURE | CH | |||
| 3 | 864720-05 | 1 | SWITCH | CH | |||
| 4 | 945327-00 | 1 | BRUSH | CH | |||
| 7 | 760208-00 | 1 | BRUSHBOX SA | CH | |||
| 8 | 085914416 | 1 | SCREW | CH | |||
| 9 | 173130500 | 1 | FAN | CH | |||
| 10 | 173120200 | 1 | COVER | CH | |||
| 11 | 942453-00 | 1 | KNOB | CH | |||
| 12 | 949726-05 | 1 | NUT | CH | |||
| 13 | 941802-00 | 1 | BARREL | CH | |||
| 14 | 761054-00 | 1 | SPRING | CH | |||
| 15 | 941798-00 | 1 | LOCKING PIN | CH | |||
| 16 | 942329-00 | 1 | SCREW | CH | |||
| 17 | 761065-00 | 1 | PIN | CH | |||
| 18 | 941880-00 | 1 | SCREW | CH | |||
| 19 | 170110700 | 1 | SPACER | CH | |||
| 20 | 941549-00 | 1 | PIN | CH | |||
| 22 | 942363-00 | 1 | SPINDLE | CH | |||
| 23 | 861060-01 | 1 | WHEEL | CH | |||
| 24 | 860088-23 | 1 | SCREW | CH | |||
| 25 | 860084-11 | 1 | SCREW | CH | |||
| 26 | 942099-00 | 1 | LOCATOR | CH | |||
| 27 | 942518-00 | 1 | LOCK HANDLE | CH | |||
| 28 | 170114000 | 1 | SPACER | CH | |||
| 29 | 941872-00 | 1 | PIN | CH | |||
| 30 | 941800-00 | 2 | WASHER LOCK | CH | |||
| 34 | 173123501 | 1 | PIN | CH | |||
| 35 | 034940402 | 1 | NIPPLE | CH | |||
| 36 | 941886-00 | 1 | BUSH | CH | |||
| 37 | 172910180 | 1 | BOLT M10X170 | M10 X 170 | CH | ||
| 38 | 172815401 | 1 | SCREW | CH | |||
| 39 | 949743-01 | 1 | SCREW | CH | |||
| 40 | 869230-02 | 1 | TABLE | CH | |||
| 41 | 942364-00 | 1 | PLATE | CH | |||
| 42 | 942234-00 | 1 | LOCKING PIN | CH | |||
| 43 | 170051000 | 1 | SCALE RH | CH | |||
| 44 | 170051001 | 1 | SCALE LH | CH | |||
| 45 | 942450-00 | 1 | KNOB | CH | |||
| 46 | 868256-00 | 1 | SCREW | CH | |||
| 47 | 942272-00 | 1 | SCREW | CH | |||
| 48 | 944904-02 | 1 | TABLE KIT | CH | |||
| 49 | 864423-01 | 1 | FENCE SA | CH | |||
| 50 | 942400-00 | 1 | PLATE | CH | |||
| 51 | 760232-00 | 1 | BEARING | CH | |||
| 53 | 860085-07 | 2 | SCREW | CH | |||
| 54 | 949876-04 | 2 | WASHER | CH | |||
| 55 | 942519-00 | 1 | BELT DRIVE | CH | |||
| 56 | 170121400 | 1 | PULLEY | CH | |||
| 57 | 760233-00 | 1 | PIN | CH | |||
| 59 | 860491-01 | 1 | SPRING | CH | |||
| 60 | 170120100 | 1 | SUPPORT | CH | |||
| 61 | 860155-08 | 1 | BEARING | CH | |||
| 62 | 172121000 | 1 | SLEEVE | CH | |||
| 63 | 860084-19 | 1 | SCREW | CH | |||
| 64 | 080914409 | 1 | SCREW | CH | |||
| 65 | 170051003 | 1 | SCALE | CH | |||
| 66 | 170051004 | 1 | SCALE | CH | |||
| 67 | 172120900 | 1 | SPACER | CH | |||
| 68 | 860079-05 | 1 | CIRCLIP | CH | |||
| 69 | 868571-00 | 1 | FLANGE SET SA | CH | |||
| 70 | 868571-00 | 1 | FLANGE SET SA | CH | |||
| 71 | 172128300 | 1 | SPACER | CH | |||
| 72 | 761295-00 | 1 | SCREW | CH | |||
| 73 | 860322-03 | 1 | CIRCLIP | CH | |||
| 74 | 173121401 | 1 | PULLEY | CH | |||
| 75 | 867037-01 | 1 | GUARD SA | CH | |||
| 76 | 942500-00 | 1 | SPINDLE | CH | |||
| 77 | 860073-04 | 1 | WASHER | CH | |||
| 78 | 860322-00 | 1 | CIRCLIP | CH | |||
| 79 | 942263-00 | 1 | KNOB | CH | |||
| 80 | 944902-01 | 1 | RIVING KNIFE KIT | CH | |||
| 82 | 942041-00 | 1 | SCREW | CH | |||
| 83 | 170164601 | 1 | COVER | CH | |||
| 84 | 170164600 | 1 | COVER | CH | |||
| 85 | 170120200 | 1 | CASING | CH | |||
| 86 | 949896-12 | 1 | SCREW | CH | |||
| 88 | 761203-00 | 1 | CLAMP | CH | |||
| 89 | 170121901 | 1 | CAPACITOR | CH | |||
| 90 | 942589-00 | 1 | LEAD | CH | |||
| 91 | 860084-20 | 2 | SCREW | CH | |||
| 92 | 170106400 | 1 | CABLE SA | CH | |||
| 93 | 942109-02 | 1 | GUARD | CH | |||
| 94 | 867403-00 | 1 | LEVER | CH | |||
| 95 | 942482-01 | 1 | HANDLE HALF | CH | |||
| 96 | 942498-01 | 1 | Handle | CH | |||
| 97 | 942108-01 | 1 | LINKAGE SA | CH | |||
| 98 | 946646-00 | 1 | SEAL | CH | |||
| 99 | 021810200 | 1 | PIN | CH | |||
| 100 | 760233-00 | 1 | PIN | CH | |||
| 101 | 949896-12 | 1 | SCREW | CH | |||
| 102 | 170164500 | 1 | CABLE | CH | |||
| 103 | 861378-00 | 1 | SCREW | CH | |||
| 104 | 860084-19 | 1 | SCREW | CH | |||
| 105 | 170164501 | 1 | CABLE | CH | |||
| 106 | 860322-03 | 1 | CIRCLIP | CH | |||
| 107 | 942493-00 | 1 | PIN | CH | |||
| 108 | 170816200 | 1 | PIN | CH | |||
| 109 | 170122201 | 1 | CORD PROTECTOR | CH | |||
| 110 | 170816201 | 1 | PIN | CH | |||
| 111 | 170123400 | 1 | PLATE | CH | |||
| 112 | 760295-01 | 1 | SPRING | CH | |||
| 113 | 860085-17 | 1 | SCREW | CH | |||
| 114 | 861380-00 | 1 | DEPTH STOP | CH | |||
| 115 | 860083-12 | 1 | NUT M6 | CH | |||
| 116 | 942244-00 | 1 | BUSH | CH | |||
| 117 | 861096-01 | 1 | ROLLER | CH | |||
| 118 | 861095-01 | 1 | BUFFER | CH | |||
| 119 | 942264-00 | 1 | PIN | CH | |||
| 167 | 860084-20 | 2 | SCREW | CH | |||
| 179 | 949896-12 | 1 | SCREW | CH | |||
| 198 | 170113800 | 1 | BRACKET | CH | |||
| 199 | 868256-00 | 1 | SCREW | CH | |||
| 200 | 172050303 | 1 | NAMEPLATE | CH | |||
| 201 | 942045-00 | 1 | PIN | CH | |||
| 202 | 860073-08 | 1 | WASHER | CH | |||
| 206 | 860079-03 | 1 | CIRCLIP | CH | |||
| 208 | 861721-01 | 1 | BEARING | CH | |||
| 209 | 173120206 | 1 | GUARD | CH | |||
| 210 | 944898-01 | 1 | ROLLER SA | CH | |||
| 211 | 944909-00 | 1 | LOCKING PIN SA | CH | |||
| 212 | 930563-00 | 1 | BEARING | CH | |||
| 213 | 170914423 | 1 | SCREW | CH | |||
| 214 | 941886-00 | 1 | BUSH | CH | |||
| 215 | 942492-00 | 1 | BLOCK | CH | |||
| 216 | 860649-01 | 1 | PIN | CH | |||
| 217 | 942521-00 | 1 | SPRING | CH | |||
| 218 | 941602-00 | 1 | WASHER | CH | |||
| 219 | 860085-18 | 1 | SCREW | CH | |||
| 220 | 941606-00 | 1 | SCREW | CH | |||
| 221 | 942308-00 | 1 | REDUCER | CH | |||
| 846 | 172232401 | 1 | RIVING KNIFE 75MM | CH |
