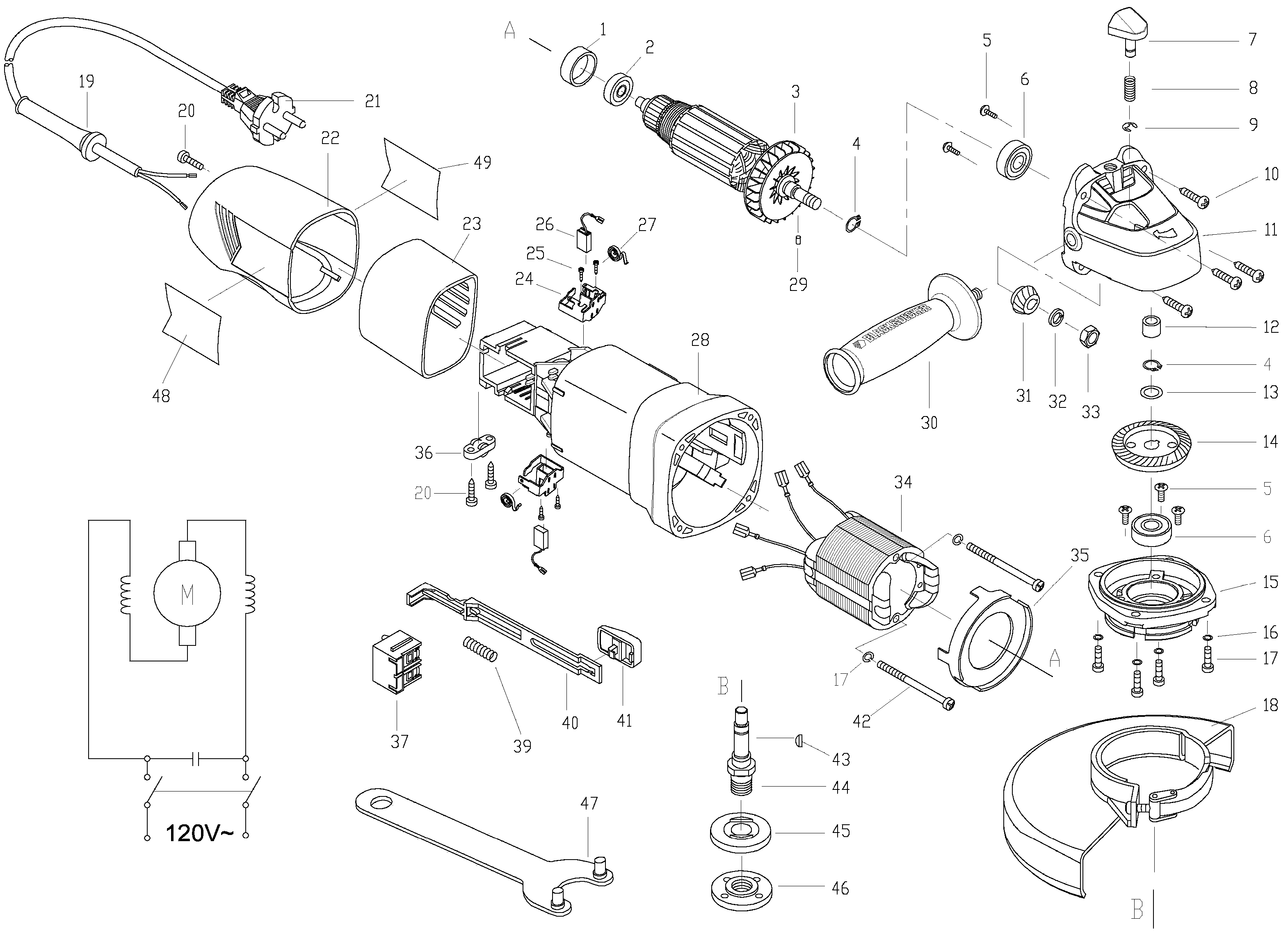

G720 SMALL ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140003-59 | 1 | BEARING HOLDER | BR | |||
| 2 | 5140003-60 | 1 | BEARING | BR | |||
| 3 | 5140003-62 | 1 | ARM. & FAN | BR | |||
| 4 | 5140177-27 | 1 | RETAINING RING | BR | |||
| 5 | 5140029-15 | 5 | SCREW | BR | |||
| 6 | 5140003-66 | 2 | BEARING | BR | |||
| 7 | 5140029-16 | 1 | LOCK PIN | BR | |||
| 8 | 5140003-68 | 1 | SPRING | BR | |||
| 9 | 5140003-69 | 1 | RET. RING | BR | |||
| 10 | 5140003-70 | 4 | SCREW | BR | |||
| 11 | 5140029-17 | 1 | GEAR CASE | BR | |||
| 12 | 5140003-72 | 1 | BEARING | BR | |||
| 13 | 5140029-18 | 1 | SPRING RING | BR | |||
| 14 | 5140003-75 | 1 | GEAR | BR | |||
| 15 | 5140029-19 | 1 | GEAR CASE COVER | BR | |||
| 16 | 5140003-79 | 4 | WASHER | BR | |||
| 17 | 5140003-80 | 4 | SCREW | M4x14 | BR | ||
| 18 | 5140029-20 | 1 | GUARD | BR | |||
| 19 | 5140002-29 | 1 | SLEEVE | BR | |||
| 20 | 5140003-83 | 1 | SCREW | BR | |||
| 21 | 5140029-23 | 1 | CORD & PLUG | BR | |||
| 22 | 5140029-21 | 1 | END CAP | BR | |||
| 23 | 5140029-22 | 1 | RUBBER CASE | BR | |||
| 24 | 5140029-24 | 2 | BRUSH HOLDER | BR | |||
| 25 | 5140003-86 | 4 | SCREW | BR | |||
| 26 | 5140029-26 | 2 | BRUSH CARBON | BR | |||
| 27 | 5140029-27 | 2 | SPRING | BR | |||
| 28 | 5140029-28 | 1 | FIELD CASE | BR | |||
| 29 | 5140003-88 | 1 | LOCK SCREW | BR | |||
| 30 | 5140029-29 | 1 | Handle | BR | |||
| 31 | 5140003-91 | 1 | PINION | BR | |||
| 32 | 5140003-92 | 1 | WASHER SPRING | BR | |||
| 33 | 5140003-93 | 1 | NUT | BR | |||
| 34 | 5140003-96 | 1 | FIELD | BR | |||
| 35 | 5140003-97 | 1 | BAFFLE | BR | |||
| 36 | 5140002-48 | 1 | CORD CLAMP | BR | |||
| 37 | 5140002-54 | 1 | SWITCH | BR | |||
| 39 | 5140029-30 | 1 | SPRING | BR | |||
| 40 | 5140029-31 | 1 | SWITCH ACTUATOR | BR | |||
| 41 | 5140029-32 | 1 | SWITCH KNOB | BR | |||
| 42 | 5140004-04 | 2 | SCREW | BR | |||
| 43 | 5140004-05 | 1 | WOODRUFF KEY | BR | |||
| 44 | 5140004-06 | 1 | SPINDLE | BR | |||
| 45 | 5140002-52 | 1 | FLANGE | BR | |||
| 46 | 5140004-07 | 1 | NUT | FLANGE | BR | ||
| 47 | 5140029-33 | 1 | WRENCH | BR | |||
| 48 | 5140029-37 | 1 | RATING PLATE | BR | |||
| 49 | 5140029-38 | 1 | ID LABEL | BR |
