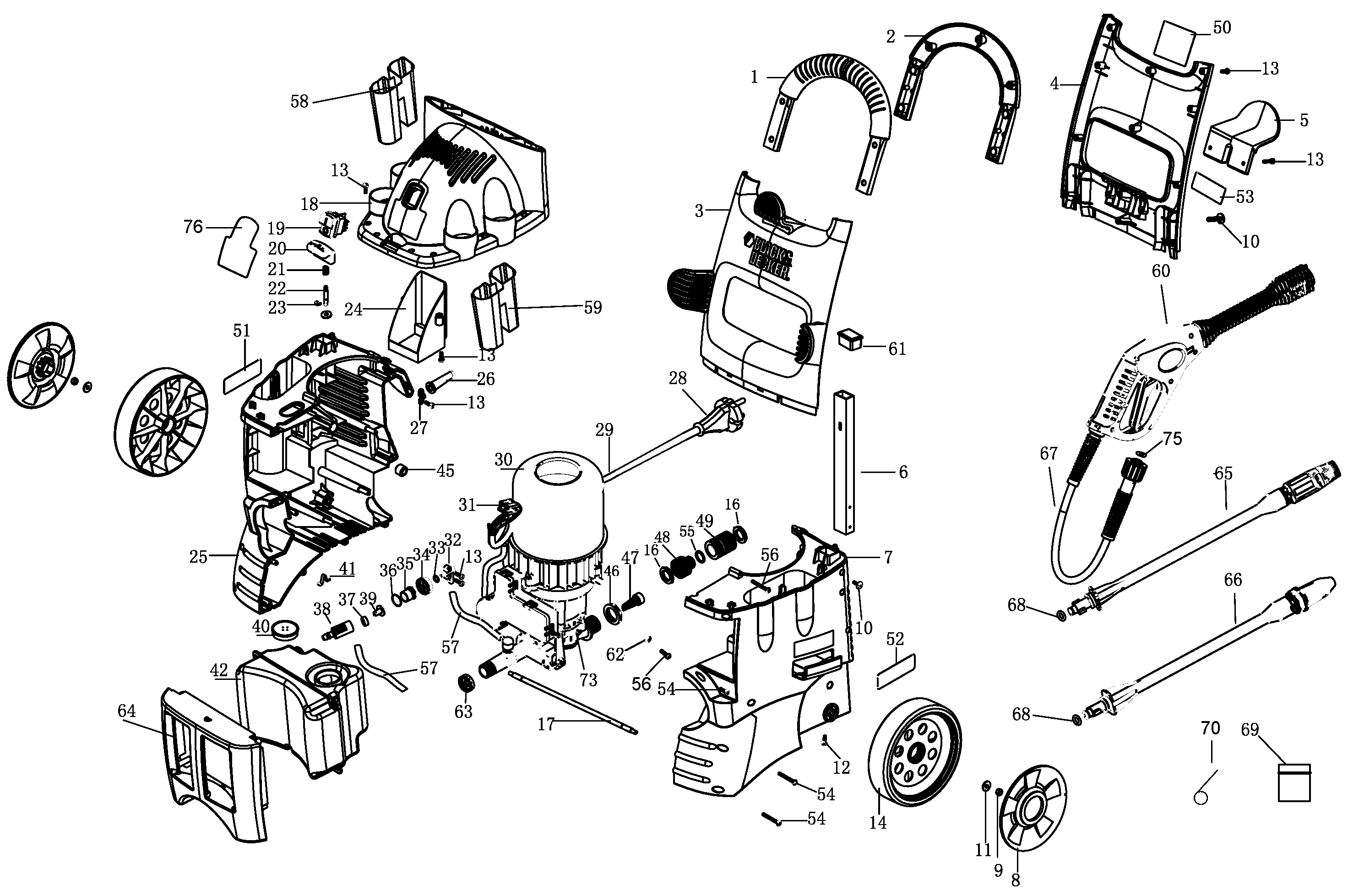

PW1600 PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | JH120001 | 1 | UPPER HANDLE | BR | |||
| 2 | JH120002 | 1 | HANDLE COVER | BR | |||
| 3 | JH120003 | 1 | HANDLE COVER | BR | |||
| 4 | JH120004 | 1 | HANDLE COVER | BR | |||
| 5 | JH120005 | 1 | CORD WRAP | BR | |||
| 6 | JH120006 | 2 | CONNECTOR TUBE | BR | |||
| 7 | JH120007 | 1 | HOUSING,MAIN | BR | |||
| 8 | JH120008 | 2 | WHEEL COVER | BR | |||
| 9 | JH110009 | 2 | LOCKING NUT | M6 | BR | ||
| 10 | JH120011 | 6 | SCREW | For metal connection tube. | BR | ||
| 11 | JH110010 | 2 | WASHER | 18 X 6.4 X 1.6 | BR | ||
| 12 | JH120012 | 1 | SCREW | BR | |||
| 13 | JH120013 | 33 | SCREW | BR | |||
| 14 | JH120014 | 2 | WHEEL HUB | BR | |||
| 16 | JH110017 | 2 | RUBBER WASHER | For quick connector. | BR | ||
| 17 | JH120016 | 1 | WHEEL SHAFT | BR | |||
| 18 | JH120015 | 1 | TOP COVER | BR | |||
| 19 | JH0103 | 1 | SWITCH | BR | |||
| 20 | JH110020 | 1 | LOCK KNOB | BR | |||
| 21 | JH110021 | 1 | SPRING | BR | |||
| 22 | JH110022 | 2 | WASHER | 12 X 6.4 X 1.4 | BR | ||
| 23 | JH110023 | 1 | LOCK WASHER | BR | |||
| 24 | JH110024 | 1 | SWITCH BOX | BR | |||
| 25 | JH110025 | 1 | HOUSING,LEFT | BR | |||
| 26 | JH110027 | 1 | SLEEVE | BR | |||
| 28 | JH110029BR | 1 | PLUG | BR | |||
| 29 | JH0120BR | 1 | CORD & PLUG | BR | |||
| 30 | JH110031BR | 1 | MOTOR | BR | |||
| 31 | JH110028 | 1 | CORD CLIP | BR | |||
| 32 | JH110032 | 4 | TERMINAL | BR | |||
| 33 | JH110034 | 1 | O-RING | 5 X 1.8 mm | BR | ||
| 34 | JH110035 | 1 | CAP | BR | |||
| 35 | JH110033 | 1 | TANK CONNECTION | BR | |||
| 36 | JH110037 | 1 | PVC WASHER | BR | |||
| 38 | JH110036 | 1 | TANK CONNECTION | BR | |||
| 39 | JH110039 | 1 | FILTER ASSY. | BR | |||
| 40 | JH110040 | 1 | CAP | BR | |||
| 41 | JH110041 | 1 | SPRING | BR | |||
| 42 | JH110042 | 1 | DETERGENT BOTTLE | BR | |||
| 45 | JH110045 | 2 | SUPPORT,MOTOR | BR | |||
| 46 | JH0058 | 1 | PLASTIC NUT | BR | |||
| 47 | JH0059 | 1 | FILTER | BR | |||
| 48 | JH110048 | 1 | WATER CONNECTOR | Brass | BR | ||
| 49 | JH110049 | 1 | QUICK CONNECT | BR | |||
| 50 | JH120050 | 1 | WARNING LABEL | BR | |||
| 51 | JH120051 | 1 | LABEL | BR | |||
| 52 | JH120052 | 1 | LABEL | BR | |||
| 53 | JH120053 | 1 | NAME PLATE | BR | |||
| 54 | JH120054 | 6 | SELF TAPPING SCREW | BR | |||
| 56 | JH120056 | 2 | SELF TAPPING SCREW | BR | |||
| 57 | JH110038 | 1 | TUBE | BR | |||
| 58 | JH120058 | 1 | TOOL HOLDER | BR | |||
| 59 | JH120059 | 1 | TOOL HOLDER | BR | |||
| 60 | JH0121 | 1 | HOSE GUN ASSY. | BR | |||
| 61 | JH110061 | 1 | CONNECTOR TUBE | BR | |||
| 63 | JH110063 | 1 | WATER OUTLET COVER | BR | |||
| 65 | JH110065 | 1 | WAND / LANCE | BR | |||
| 66 | JH0123 | 1 | TURBO WAND | BR | |||
| 67 | JH110067 | 1 | PRESSURE HOSE | BR | |||
| 68 | JH0132 | 2 | O-RING | BR | |||
| 69 | JH120069 | 1 | HARDWARE BAG | BR | |||
| 70 | JH0125 | 1 | CLEAN OUT PIN | BR | |||
| 73 | JH120073 | 1 | PUMP ASSEMBLY | BR | |||
| 75 | JH110018 | 1 | O-RING | 13.5 X 2.3 mm | BR | ||
| 76 | JH110026 | 1 | ACCESSORY HOLDER | BR | |||
| 101 | JHMP0001 | 1 | MOTOR SHROUD | BR | |||
| 102 | JHMP0002 | 1 | FAN HOOP | BR | |||
| 103 | JHMP0003 | 1 | FAN | BR | |||
| 104 | JHMP0004 | 1 | LOCK WASHER | BR | |||
| 105 | JHMP0005 | 4 | SCREW | M5 X 25 | BR | ||
| 106 | JHMP0006 | 1 | MOTOR CAP | BR | |||
| 107 | JHMP0007 | 1 | STATOR | BR | |||
| 108 | JHMP0008 | 3 | TUBING | BR | |||
| 109 | JHMP0009 | 1 | NYLON LOCKER | BR | |||
| 110 | JHMP0010 | 4 | TERMINAL | BR | |||
| 111 | JHMP0011 | 4 | CAP | BR | |||
| 112 | JHMP0012 | 1 | BEARING | BR | |||
| 113 | JHMP0013 | 1 | ROTOR | BR | |||
| 114 | JHMP0014 | 2 | OIL SEAL | BR | |||
| 115 | JHMP0015 | 1 | SCREW | M4 X 6 | BR | ||
| 116 | JHMP0016 | 1 | SCREW | M4 X 10 | BR | ||
| 117 | JHMP0017 | 1 | FRONT CAP | BR | |||
| 118 | JHMP0018 | 1 | BEARING | BR | |||
| 119 | JHMP0019 | 3 | HEX BOLT | M6 X 25 | BR | ||
| 120 | JHMP0020 | 1 | O-RING | BR | |||
| 121 | JHMP0021 | 1 | WOBBLE PLATE | BR | |||
| 122 | JHMP0022 | 1 | THRUST BEARING | BR | |||
| 123 | JHMP0023 | 1 | SCREW | BR | |||
| 124 | JHMP0024 | 3 | PISTON ASSY | BR | |||
| 125 | JHMP0025 | 3 | SPRING PISTON | BR | |||
| 126 | JHMP0026 | 1 | PUMP BODY | BR | |||
| 127 | JHMP0027 | 3 | OIL SEAL | BR | |||
| 128 | JHMP0028 | 3 | RETAINER,SEAL | BR | |||
| 129 | JHMP0029 | 3 | RETAINER RING | BR | |||
| 130 | JHMP0030 | 3 | SEAL | BR | |||
| 131 | JHMP0031 | 3 | LOCK WASHER | BR | |||
| 132 | JHMP0032 | 3 | CHECK VALVE ASSY | BR | |||
| 133 | JHMP0033 | 1 | VALVE ASSEMBLY | BR | |||
| 134 | JHMP0034 | 1 | SEAL | BR | |||
| 135 | JHMP0035 | 1 | GROMMET | BR | |||
| 136 | JHMP0036 | 1 | SWITCH BOX | BR | |||
| 137 | JHMP0037 | 1 | SWITCH | BR | |||
| 138 | JHMP0038 | 1 | CAPACITOR | BR | |||
| 139 | JHMP0039 | 1 | SEAL | BR | |||
| 140 | JHMP0040 | 1 | SWITCH COVER | BR | |||
| 141 | JHMP0041 | 1 | COVER | BR | |||
| 142 | JHMP0042 | 1 | VALVE ASSY | BR | |||
| 143 | JHMP0043 | 1 | WATER OUTLET | BR | |||
| 144 | JHMP0044 | 1 | O-RING | BR | |||
| 145 | JHMP0045 | 1 | NOZZLE | BR | |||
| 146 | JHMP0046 | 1 | CHECK VALVE ASSY | BR | |||
| 147 | JHMP0047 | 4 | HEX SCREW | BR | |||
| 148 | JHMP0048 | 1 | COVER | BR | |||
| 149 | JHMP0049 | 1 | PIN | BR | |||
| 150 | JHMP0050 | 3 | O-RING | BR | |||
| 151 | JHMP0051 | 1 | SCREW | M6 X 8 | BR | ||
| 152 | JHMP0052 | 1 | O-RING | BR | |||
| 153 | JHMP0053 | 1 | PUMP BODY | BR | |||
| 154 | JHMP0054 | 1 | RING | BR | |||
| 155 | JHMP0055 | 1 | WATER INLET | BR | |||
| 156 | JHMP0056 | 4 | HEX HEAD SCREW | BR | |||
| 157 | JHMP0057 | 4 | HEX HEAD SCREW | BR | |||
| 158 | JHMP0058 | 1 | LEAD | BR | |||
| 159 | JHMP0059 | 1 | CORD | BR | |||
| 160 | JHMP0060 | 2 | TERMINAL | BR | |||
| 161 | JHMP0061 | 2 | COVER | BR | |||
| 162 | JHMP0062 | 3 | WASHER | BR | |||
| 163 | JHMP0063 | 1 | SPRING | BR | |||
| 164 | JHMP0064 | 1 | STEEL BALL | BR | |||
| 165 | JHMP0065 | 1 | O-RING | BR |
