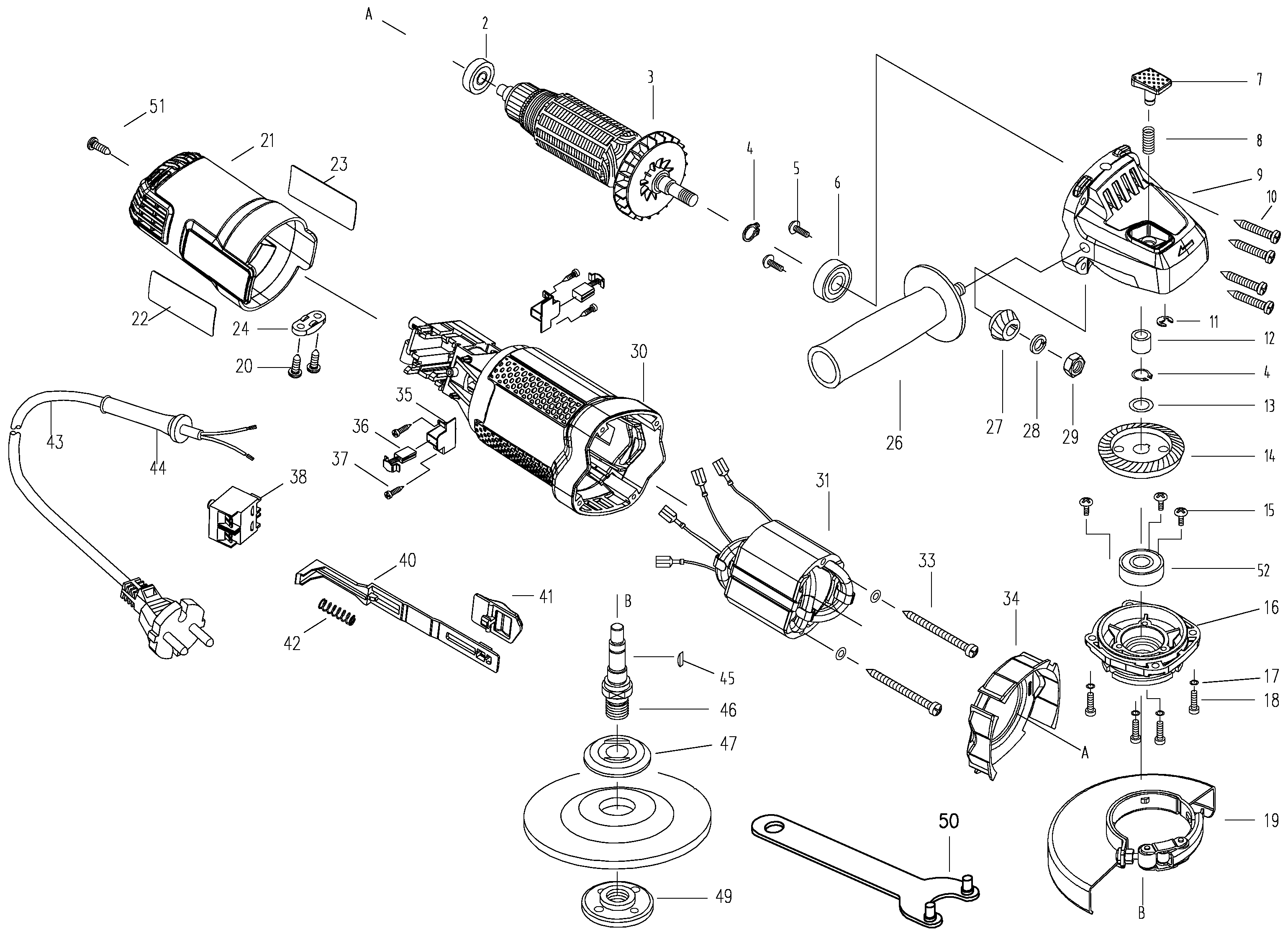

G720 SMALL ANGLE GRINDER Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 90609688 | 1 | BEARING,BALL | B3 | |||
| 3 | 90604796 | 1 | ARMATURE & FAN | B3 | |||
| 4 | 90604830 | 2 | RING | B3 | |||
| 5 | 90605452 | 3 | SCREW | B3 | |||
| 6 | 90604819 | 1 | BEARING,BALL | B3 | |||
| 7 | 90604815 | 1 | LOCK PIN | B3 | |||
| 8 | 90604818 | 1 | SPRING | B3 | |||
| 9 | 90604781 | 1 | GEARCASE | B3 | |||
| 10 | 90604838 | 4 | SCREW | B3 | |||
| 11 | 90605307 | 1 | RING | B3 | |||
| 12 | 90604834 | 1 | BEARING,NEEDLE | B3 | |||
| 13 | 90604831 | 1 | WASHER | B3 | |||
| 14 | 90604800 | 1 | GEAR | B3 | |||
| 15 | 90604832 | 3 | SCREW | B3 | |||
| 16 | 90604782 | 1 | GEARCASE COVER | B3 | |||
| 17 | 90604836 | 4 | WASHER | B3 | |||
| 18 | 90604837 | 4 | SCREW | B3 | |||
| 19 | 90604844 | 1 | GUARD | 125mm | B3 | ||
| 20 | 90604840 | 3 | SCREW | B3 | |||
| 21 | 90604784 | 1 | END CAP | B3 | |||
| 22 | 90604854 | 1 | NAME PLATE | B3 | |||
| 23 | 90604853 | 1 | IDENTITY LABEL | B3 | |||
| 24 | 90604839 | 1 | CORD CLAMP | B3 | |||
| 25 | N758838 | 1 | BRUSH SPRING | Pair | B3 | ||
| 26 | 90604851 | 1 | Handle | B3 | |||
| 27 | 90604799 | 1 | GEAR | B3 | |||
| 28 | 90604842 | 1 | SCREW | B3 | |||
| 29 | 90604843 | 1 | NUT | B3 | |||
| 30 | 90604835 | 1 | HOUSING | B3 | |||
| 31 | 90604798 | 1 | FIELD SA | B3 | |||
| 33 | 90604850 | 2 | SCREW | B3 | |||
| 34 | 90604785 | 1 | BAFFLE FAN | B3 | |||
| 35 | 90604791 | 2 | BRUSH HOLDER | B3 | |||
| 36 | 90604792 | 2 | BRUSH | B3 | |||
| 37 | 90605456 | 4 | SCREW | B3 | |||
| 38 | 90604849 | 1 | SWITCH | B3 | |||
| 40 | 90604790 | 1 | LINK | B3 | |||
| 41 | 90604789 | 1 | BUTTON | B3 | |||
| 42 | 90606067 | 1 | SPRING | B3 | |||
| 43 | 90604793 | 1 | CORDSET | B3 | |||
| 44 | 90604794 | 1 | CORD PROTECTOR | B3 | |||
| 45 | 90605295 | 1 | KEY | B3 | |||
| 46 | 90604812 | 1 | SPINDLE | B3 | |||
| 47 | 90604847 | 1 | FLANGE | B3 | |||
| 49 | 90604848 | 1 | NUT | B3 | |||
| 50 | 90604852 | 1 | WRENCH SPECIAL | B3 | |||
| 51 | 90604841 | 1 | SCREW | B3 | |||
| 52 | 90605281 | 1 | BEARING,BALL | B3 |
