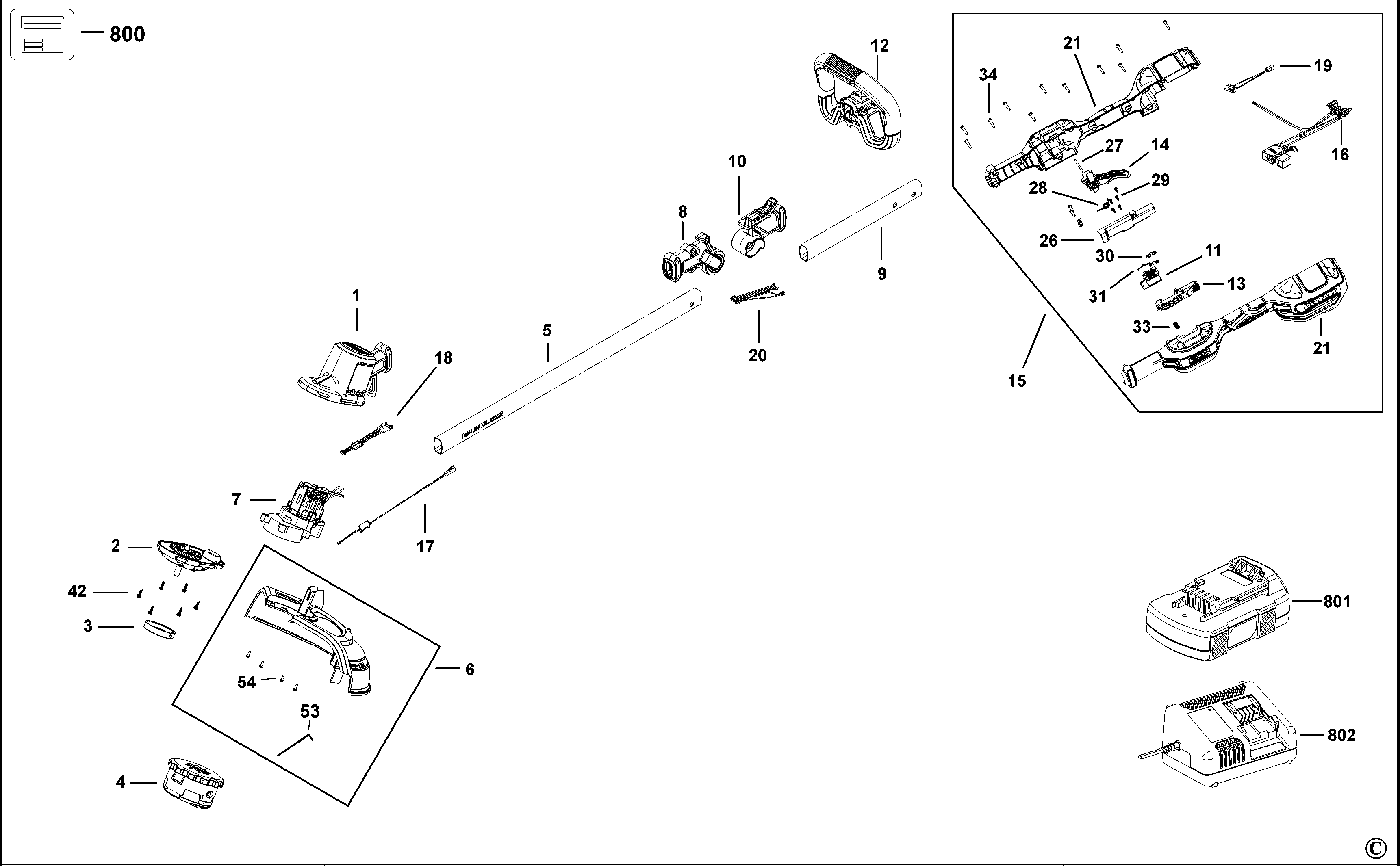

DCMST561 STRING TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N895602 | 1 | GEARCASE COVER | QW | |||
| 2 | N720623 | 1 | GEARCASE SA | QW | |||
| 3 | 90607066 | 1 | SPINDLE LOCK | QW | |||
| 4 | N737410 | 1 | SPOOL | QW | |||
| 5 | N692222 | 1 | POLE PIECE | QW | |||
| 6 | N773299 | 1 | GUARD SA | QW | |||
| 7 | N895544 | 1 | MOTOR SA | QW | |||
| 8 | N746945 | 1 | COVER SA | QW | |||
| 9 | N692223 | 1 | POLE PIECE | QW | |||
| 10 | N746857 | 1 | LATCH | SA | QW | ||
| 11 | N721005 | 1 | ACTUATOR | QW | |||
| 12 | N787701 | 1 | HANDLE SA | QW | |||
| 13 | N703261 | 1 | BUTTON | QW | |||
| 14 | N703260 | 1 | TRIGGER | QW | |||
| 15 | N892994 | 1 | HOUSING SA | QW | |||
| 16 | N784880 | 1 | WIRE HARNESS | BATTERY CONNECTOR | QW | ||
| 17 | N784811 | 1 | WIRE HARNESS | QW | |||
| 18 | N784892 | 1 | WIRE HARNESS | QW | |||
| 19 | N738799 | 1 | SWITCH SA | QW | |||
| 20 | N738903 | 1 | WIRE HARNESS | QW | |||
| 21 | N774425 | 1 | HOUSING HANDLE | QW | |||
| 26 | N718170 | 1 | GUIDE | QW | |||
| 27 | 90608942 | 1 | PIN | QW | |||
| 28 | N746415 | 1 | SPRING | QW | |||
| 29 | N086775 | 5 | SCREW | QW | |||
| 30 | N703719 | 2 | CLAMP | QW | |||
| 31 | N014681 | 1 | LEAF SPRING | QW | |||
| 33 | N703704 | 1 | SPRING | QW | |||
| 34 | 90611830 | 11 | SCREW | QW | |||
| 42 | 330045-06 | 11 | SCREW | QW | |||
| 53 | 90641326 | 1 | WRENCH SPECIAL | HEX | QW | ||
| 54 | N541913 | 4 | SCREW | M4X0.7X15 | QW | ||
| 800 | N748509 | 1 | RATING PLATE | QW | |||
| 801 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | QW | |||
| 802 | N406063 | 1 | CHARGER | DCB115-QW | QW |
