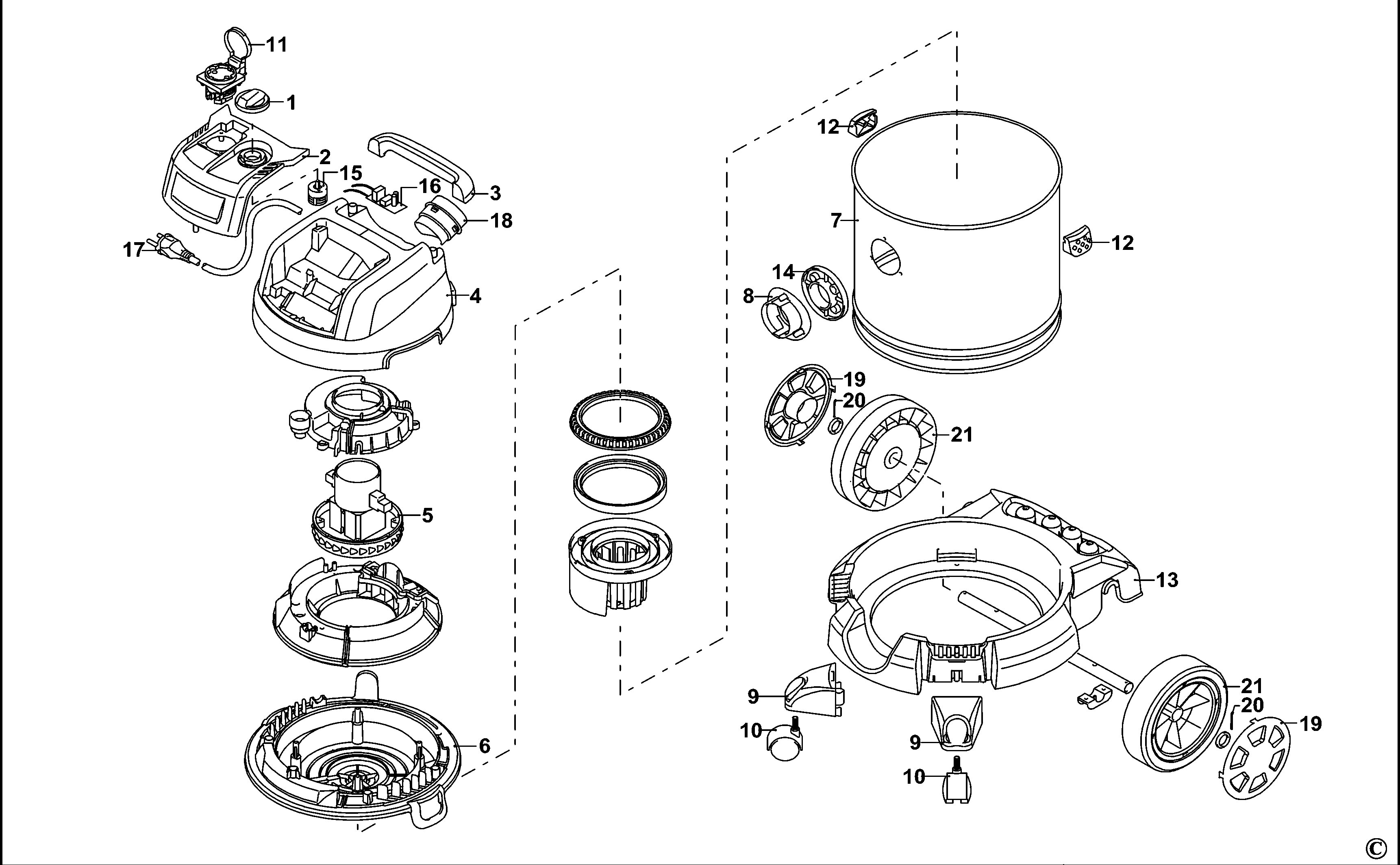

SXVC20XTE VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4340920 | 1 | SWITCH | CH | |||
| 2 | 4340930 | 1 | GUARD | CH | |||
| 3 | 4340820 | 1 | HANDLE | CH | |||
| 4 | 4340010 | 1 | COVER-TOP | CH | |||
| 5 | 4340450 | 1 | MOTOR | CH | |||
| 6 | 4340840 | 1 | BASE SA | CH | |||
| 7 | 4340870 | 1 | TANK | CH | |||
| 8 | 4340090 | 1 | COUPLING | CH | |||
| 9 | 4340400 | 2 | SUPPORT | CH | |||
| 10 | 4340410 | 2 | WHEEL | CH | |||
| 11 | 4340430 | 1 | SOCKET SA | CH | |||
| 12 | 4340080 | 2 | HOOK | CH | |||
| 13 | 4340960 | 1 | BASE SA | CH | |||
| 14 | 4340100 | 1 | SUPPORT | CH | |||
| 15 | 4340460 | 1 | SWITCH SA | CH | |||
| 16 | 4340570 | 1 | BOARD | CH | |||
| 17 | 4120880 | 1 | CORDSET | CH | |||
| 18 | 4340830 | 1 | COUPLING | CH | |||
| 19 | 4340910 | 2 | GUARD | CH | |||
| 20 | 4340900 | 2 | PIN | CH | |||
| 21 | 4340890 | 2 | WHEEL | CH | |||
| 22 | 4341310 | 1 | PIPE SA | CH | |||
| 23 | 4341430 | 1 | BRUSH SA | CH | |||
| 24 | 4340170 | 1 | NOZZLE | CH | |||
| 25 | 4340180 | 1 | BRUSH | CH | |||
| 26 | 4340970 | 1 | PIPE | x3 | CH | ||
| 27 | 1004708-20 | 1 | FILTER | x2 | CH | ||
| 28 | 4341340 | 1 | BRUSH SA | CH | |||
| 29 | 41855 | 1 | BRUSH SA | CH | |||
| 30 | 1004708-17 | 1 | BRUSH SA | Fixed Brush | CH | ||
| 31 | 4341400 | 1 | HOOK | CH | |||
| 32 | 4340240 | 1 | PIPE SA | Extendible | CH | ||
| 33 | 1004708-18 | 1 | FILTER | x5 | CH | ||
| 34 | 1004708-22 | 1 | FILTER | Cartridge | CH | ||
| 35 | 1004708-16 | 1 | NOZZLE | CH | |||
| 36 | 41865 | 1 | NOZZLE | CH |
