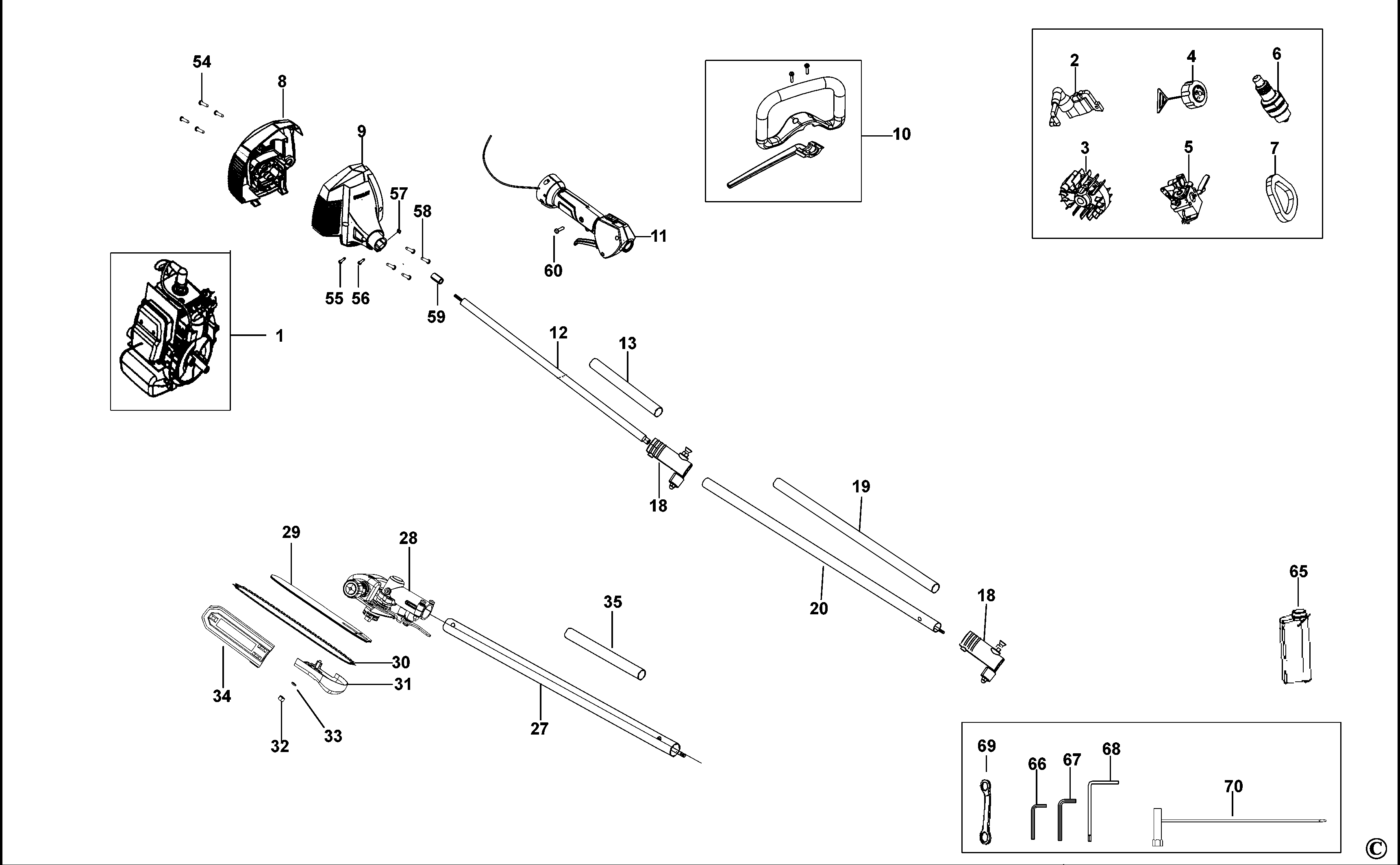

SPS-750 PRUNER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | E604100030A | 1 | MOTOR SA | 26cc | CH | ||
| 2 | E604100030A1 | 1 | COIL SA | CH | |||
| 3 | E604100030A2 | 1 | FLYWHEEL | CH | |||
| 4 | E604100030A3 | 1 | CAP SA | CH | |||
| 5 | E604100030A4 | 1 | CARBURETTOR SA | CH | |||
| 6 | E604100030A5 | 1 | SPARK PLUG | CH | |||
| 7 | E604100030A6 | 1 | FILTER | CH | |||
| 8 | E604100030B | 1 | COVER REAR | CH | |||
| 9 | E604100030C | 1 | COVER | CH | |||
| 10 | E604100030D | 1 | HANDLE SA | CH | |||
| 11 | E604100030E | 1 | HANDLE,SWITCH FOR TRIGGER ON/OUT | CH | |||
| 12 | E604100030F | 1 | TUBE SA | CH | |||
| 13 | E604100030P | 1 | TUBE | CH | |||
| 18 | E604100030Q | 2 | COUPLING | CH | |||
| 19 | E604100030R | 1 | TUBE | CH | |||
| 20 | E604100030G | 1 | SHAFT SA | CH | |||
| 27 | E604100030H2 | 1 | TUBE SA | CH | |||
| 28 | E604100030H3 | 1 | TRANSMISSION SA | CH | |||
| 29 | E604100030H4 | 1 | BAR CHAIN | CH | |||
| 30 | E604100030H5 | 1 | CHAIN | CH | |||
| 31 | E604100030H7 | 1 | COVER SA | CH | |||
| 32 | E604100030H9 | 1 | NUT M8 | CH | |||
| 33 | E604100030H8 | 1 | WASHER | CH | |||
| 34 | E604100030H6 | 1 | SHEATH | CH | |||
| 35 | E604100030H1 | 1 | GRIP | CH | |||
| 54 | E604100030J | 4 | SCREW | CH | |||
| 55 | E604100030K | 1 | SCREW | CH | |||
| 56 | E604100030L | 1 | SCREW | CH | |||
| 57 | E604100030M | 1 | NUT M5 | CH | |||
| 58 | E604100030N | 4 | SCREW | CH | |||
| 59 | E604100030O | 1 | DAMPER | CH | |||
| 60 | E604100030I | 2 | SCREW | CH | |||
| 65 | E604100030X | 1 | BOTTLE | CH | |||
| 66 | E604100030U | 1 | BIT SCREWDRIVER | CH | |||
| 67 | E604100030V | 1 | HEX KEY | CH | |||
| 68 | E604100030W | 1 | SPANNER | CH | |||
| 69 | E604100030T | 1 | SPANNER | CH | |||
| 70 | E604100030S | 1 | SPANNER | CH |
