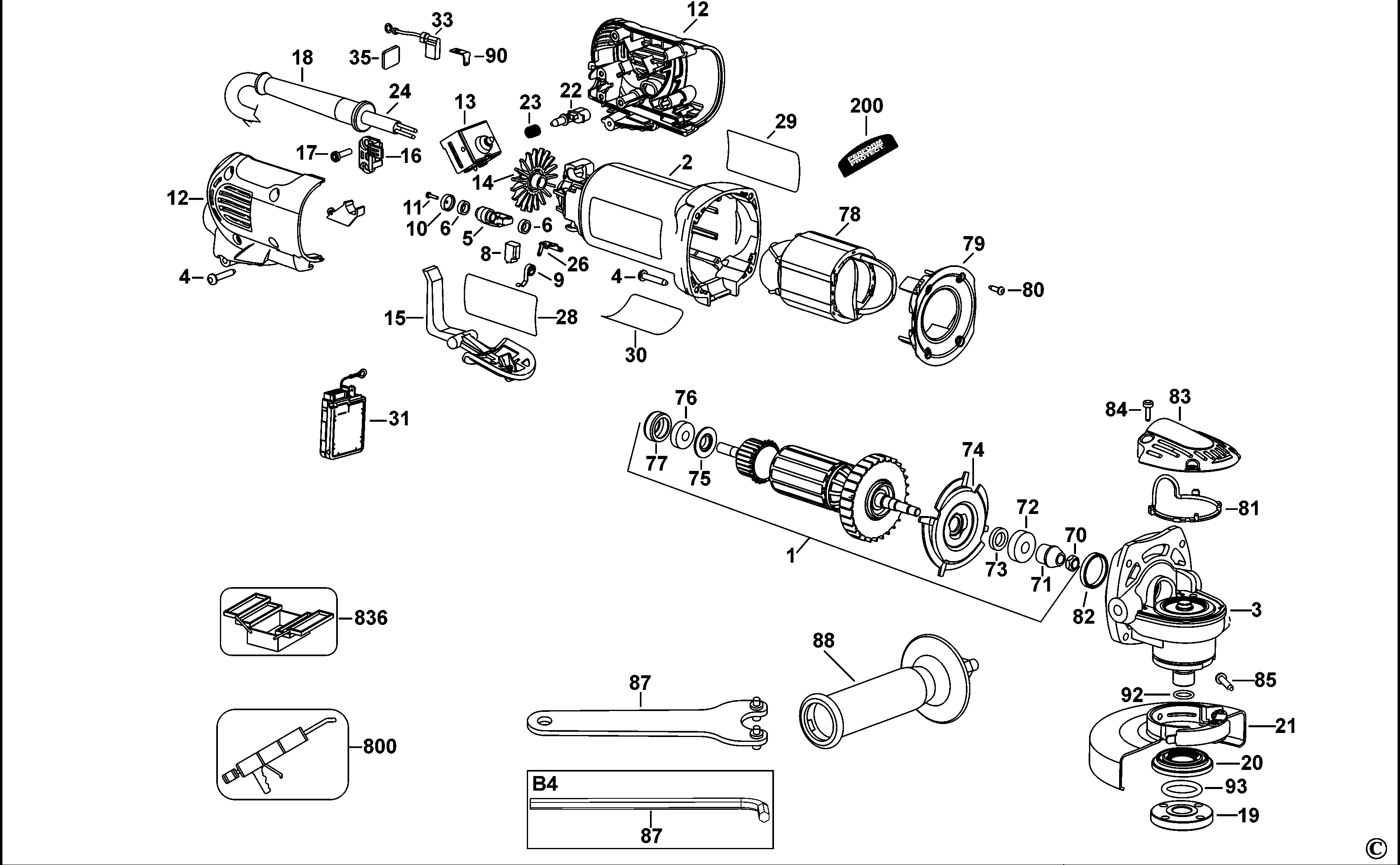

D28114N SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N398002 | 1 | ARMATURE SA | 230v | XE | ||
| 2 | 632180-01 | 1 | FIELDCASE | XE | |||
| 3 | 629447-04 | 1 | GEARCASE SA | M14 SPINDLE | XE | ||
| 4 | 330065-31 | 9 | PLASTIC SCREW | XE | |||
| 5 | 648743-00 | 2 | ARM | BRUSH | XE | ||
| 6 | 623592-00 | 4 | FELT SEAL | XE | |||
| 8 | 640491-03 | 2 | BRUSH 230V | 230V POP OFF | XE | ||
| 9 | 636760-00 | 2 | BRUSH SPRING | XE | |||
| 10 | 623591-00 | 2 | BRUSH CAP | XE | |||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | XE | ||
| 12 | N397855 | 1 | CLAMSHELL SET | YELLOW | XE | ||
| 13 | 945614-02 | 1 | SWITCH | XE | |||
| 14 | N055787 | 1 | SEPARATOR | Particle | XE | ||
| 15 | 623619-01S | 1 | PADDLE | XE | |||
| 16 | 628398-00 | 1 | CORD CLAMP | XE | |||
| 17 | 330019-03 | 2 | SCREW | XE | |||
| 18 | N542553 | 1 | CORD PROTECTOR | XE | |||
| 18 | N542553 | 1 | CORD PROTECTOR | XE | |||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | XE | ||
| 20 | 633257-00SV | 1 | INNER FLANGE SA | XE | |||
| 21 | 397661-02 | 1 | GUARD SA | 5 IN (125MM) | XE | ||
| 22 | 625415-00 | 1 | PLUG | LOCK-ON | XE | ||
| 23 | 562210-00 | 1 | SPRING | XE | |||
| 24 | N159336 | 1 | CORDSET | XE | XE | ||
| 26 | 623593-00 | 2 | TERMINAL | XE | |||
| 28 | N174385 | 1 | RATING PLATE | XE | XE | ||
| 29 | 628885-00 | 1 | BRAND LABEL | XE | |||
| 30 | 626891-00 | 1 | WARNING LABEL | XE | |||
| 31 | N032631 | 1 | CONTROL MODULE SA | IN STATIC BAG | XE | ||
| 33 | 631028-01 | 1 | TERMINAL & LEAD | W/RING TERM & LEAD | XE | ||
| 35 | 633391-00 | 1 | SEAL | TERMINAL | XE | ||
| 70 | 604484-00 | 1 | NUT | XE | |||
| 71 | 627465-00 | 1 | PINION | 9 TOOTH | XE | ||
| 72 | 605040-05 | 1 | BEARING | XE | |||
| 73 | 623617-00 | 1 | FELT SEAL | XE | |||
| 74 | N422242 | 1 | RETAINER | XE | |||
| 75 | 623613-00 | 1 | WASHER | XE | |||
| 76 | 605040-02 | 1 | BEARING | XE | |||
| 77 | 641823-00 | 1 | SLEEVE | XE | |||
| 78 | 627125-04 | 1 | FIELD 230V | 230V | XE | ||
| 79 | 623572-00 | 1 | BAFFLE FAN | XE | |||
| 80 | 330065-25 | 4 | SCREW | XE | |||
| 81 | 632513-00 | 1 | GASKET | XE | |||
| 82 | 611492-00 | 1 | SLEEVE | XE | |||
| 83 | 627313-00 | 1 | GEARCASE COVER | XE | |||
| 84 | 385676-01 | 4 | SCREW | XE | |||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | XE | ||
| 87 | N079326 | 1 | WRENCH PIN | SPANNER | XE | ||
| 88 | N421925 | 1 | SIDE HANDLE | XE | |||
| 90 | 634599-00 | 1 | TERMINAL | XE | |||
| 92 | 633044-00 | 1 | O RING | XE | |||
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | XE | ||
| 200 | N196273 | 1 | LABEL | PERFORM & PROTECT | XE | ||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XE | ||
| 836 | 233804-36 | 1 | DRIVER | T6 | XE |
