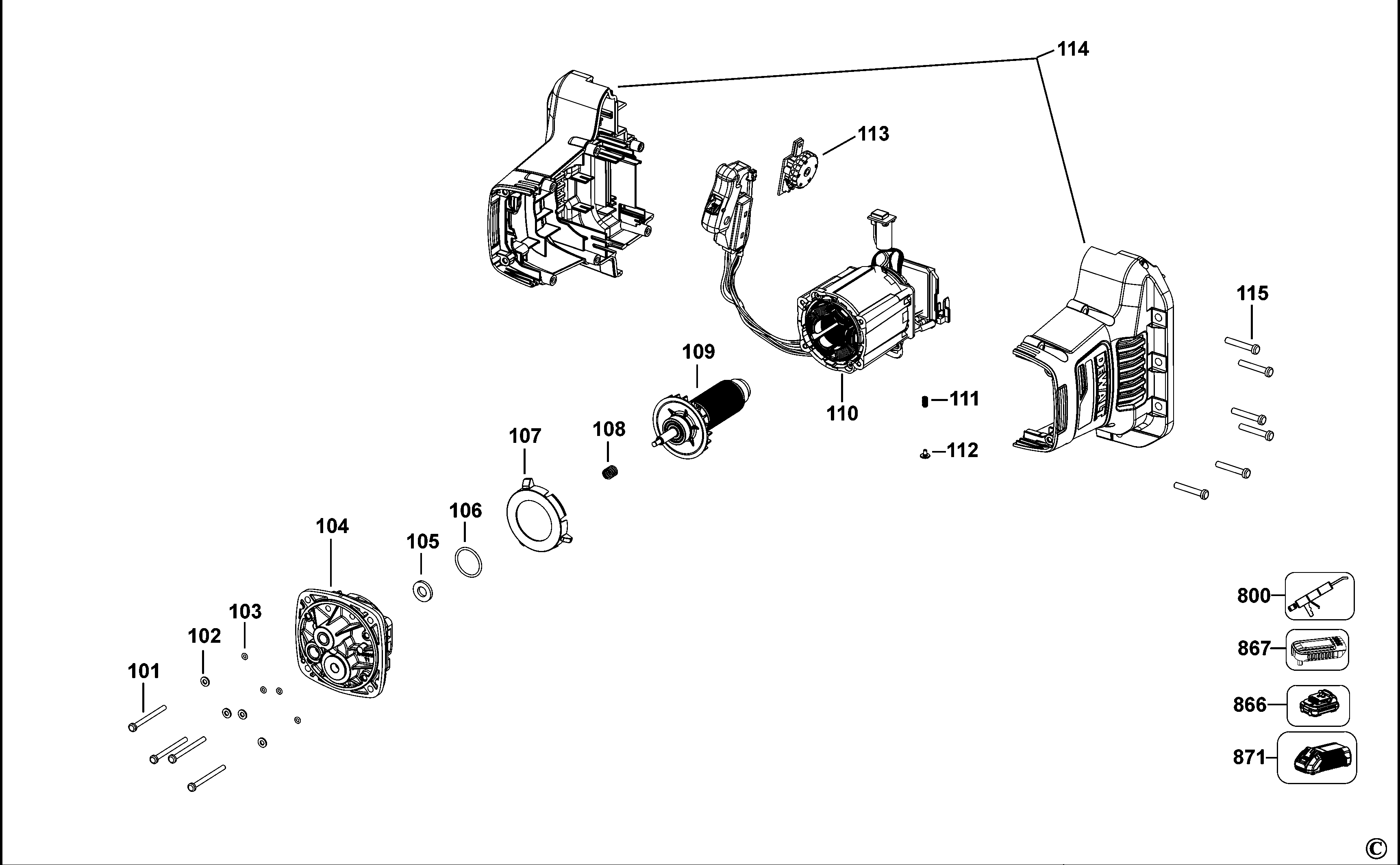

DCD240 MIXER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	N498448	4	SCREW			XE
2	N531233	1	GEARCASE SA			XE
3	N530918	1	GEAR SA			XE
4	N530904	1	GEAR SA			XE
5	N460098	1	GASKET			XE
6	N499344	8	SCREW			XE
8	N519714	1	LABEL			XE
9	N511831	1	PIN			XE
10	N511832	1	SPRING TORSION			XE
11	N519722	1	LABEL			XE
12	N530879	1	BATTERY COVER			XE
13	N499441	1	PIN			XE
14	N530875	1	COVER			XE
15	N519710	1	RATING PLATE			XE
16	N463912	1	CLAMSHELL SET			XE
17	N498473	8	SCREW			XE
18	N530847	1	CLAMSHELL SET			XE
19	N510871	1	SWITCH COVER			XE
20	N517515	1	SUPPORT			XE
21	N463905	1	CLAMSHELL SET			XE
22	N455327	1	BASE PLATE			XE
23	N498377	8	SCREW			XE
24	N501243	1	BATTERY COVER			XE
25	N499349	8	NUT M6			XE
26	N519720	1	LABEL			XE
27	403123-01	1	O RING			XE
28	N559812	1	PIN			XE
101	330019-08	4	SCREW			XE
102	N462739	4	WASHER			XE
103	N504446	4	O RING			XE
104	N527278	1	ADAPTOR SA			XE
105	N493856	1	WASHER FELT			XE
106	N493854	1	O RING			XE
107	N493809	1	BAFFLE			XE
108	N498620	1	SPRING			XE
109	N538840	1	ROTOR SA			XE
110	N544011	1	STATOR SA			XE
111	N461735	1	SPRING			XE
112	N122099	1	BLOCK			XE
113	N460556	1	WHEEL SPEED			XE
114	N527102	1	CLAMSHELL SET			XE
115	330019-45	6	SCREW			XE
200	N519648	2	SPANNER			XE
201	N519652	1	PADDLE			XE
800	429698-00	1	GREASE	BD-L 2	0.07kg	XE
862	N037466	1	BAG			XE
866	N491555	1	BATTERY 3 X18V-9.0AH-162WH	DCB547-XE	DCD240X2	XE
867	N462141	1	SAFETY CAP			XE
