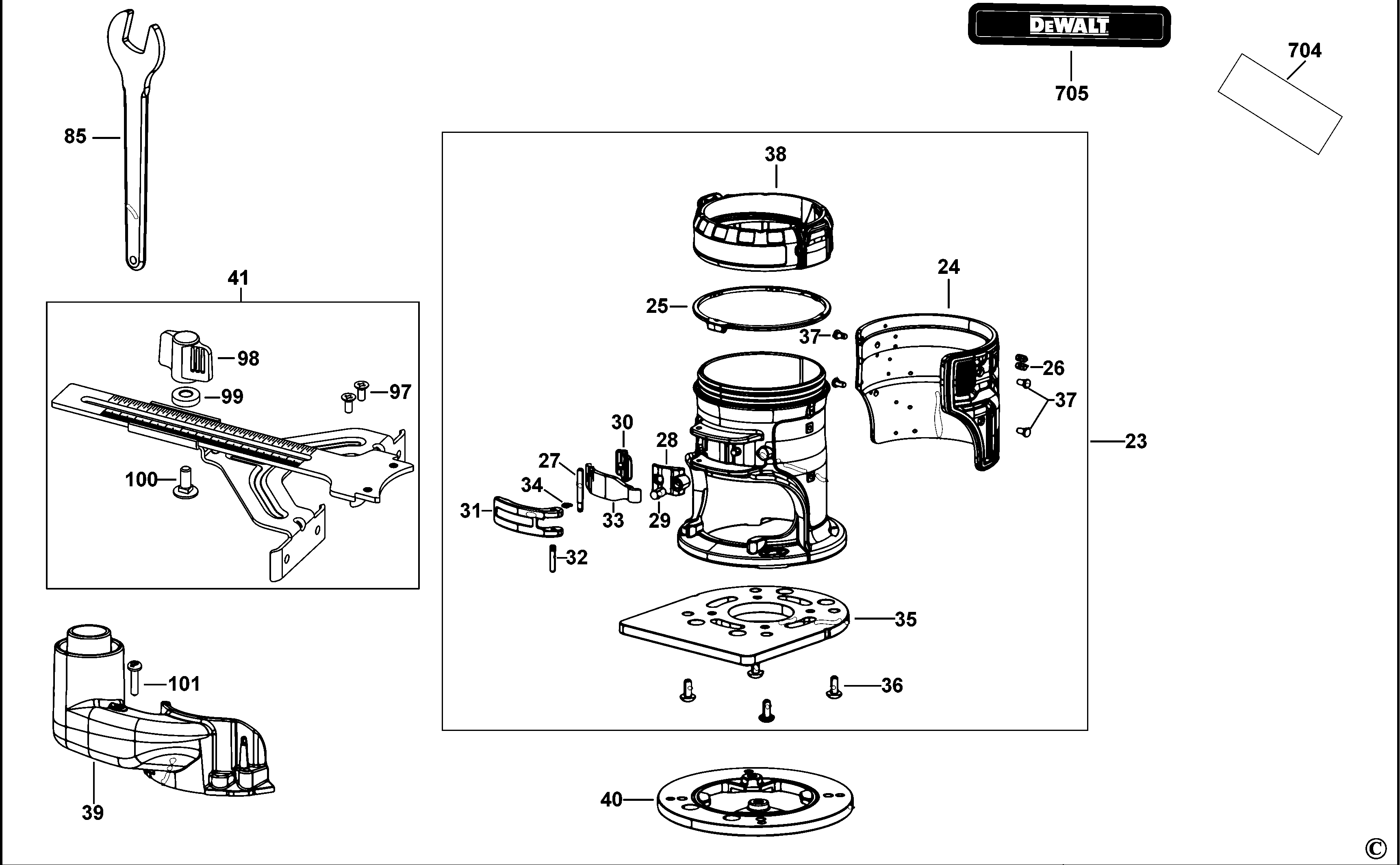

DCW604 ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N567094 | 1 | HOUSING SA | XE | |||
| 2 | N661051 | 1 | HOUSING MOTOR | XE | |||
| 3 | N038183 | 1 | LOCK BUTTON | XE | |||
| 4 | A26131 | 1 | INSERT | XE | |||
| 5 | A23489 | 1 | SPRING | XE | |||
| 6 | 330065-06 | 2 | SCREW | XE | |||
| 7 | A25248 | 1 | NUT | XE | |||
| 8 | N239160 | 1 | BUMPER | XE | |||
| 9 | N239159 | 1 | BUMPER | XE | |||
| 10 | N122099 | 1 | BLOCK | XE | |||
| 11 | N461735 | 1 | SPRING | XE | |||
| 12 | 330045-08 | 2 | SCREW | XE | |||
| 13 | 330065-07 | 1 | SCREW | XE | |||
| 14 | 682211-00 | 3 | SCREW | XE | |||
| 15 | N071836 | 1 | ROLL PIN | XE | |||
| 16 | N569455 | 1 | CLIP | XE | |||
| 17 | N467560 | 1 | PLATE | XE | |||
| 18 | N740030 | 1 | MOTOR SA | SSA | XE | ||
| 19 | N580684 | 1 | LED LIGHT | XE | |||
| 20 | N550971 | 1 | WHEEL SPEED | XE | |||
| 22 | N703257 | 4 | PIN | XE | |||
| 23 | N742993 | 1 | HOUSING SA | XE | |||
| 24 | N591239 | 1 | COVER | XE | |||
| 25 | A23587 | 1 | INDICATOR | XE | |||
| 26 | N042079 | 2 | PIN | XE | |||
| 27 | A24452 | 1 | PIN | XE | |||
| 28 | A24764 | 1 | ADJUSTER | XE | |||
| 29 | 330022-18 | 1 | SCREW | XE | |||
| 30 | A24767 | 1 | PAD | XE | |||
| 31 | A24771 | 1 | CLAMPING BAR | XE | |||
| 32 | A24770 | 1 | PIN | XE | |||
| 33 | A27362 | 1 | SPRING | XE | |||
| 34 | N028373 | 1 | RETAINER | XE | |||
| 35 | A27941 | 1 | BASEPLATE | XE | |||
| 36 | N029178 | 4 | SCREW | XE | |||
| 37 | N587924 | 4 | PIN | XE | |||
| 38 | N693104 | 1 | ADJUSTER HEIGHT | XE | |||
| 39 | A28678SV | 1 | ADAPTOR | XE | |||
| 40 | N092764 | 1 | BASE SA | XE | |||
| 41 | N026733 | 1 | GUIDE SA | XE | |||
| 42 | N095608 | 1 | CARRIER SA | XE | |||
| 45 | N042079 | 2 | PIN | XE | |||
| 47 | N037001 | 1 | SPRING | XE | |||
| 48 | N034346 | 1 | GUIDE | XE | |||
| 49 | A29112 | 1 | SPRING | XE | |||
| 50 | A29651 | 1 | GUIDE | XE | |||
| 51 | N027873 | 1 | PLATE | XE | |||
| 52 | N029880 | 1 | COVER | XE | |||
| 53 | 330045-06 | 5 | SCREW | XE | |||
| 54 | N029497 | 1 | BOLT | XE | |||
| 55 | N029508 | 1 | SPRING | XE | |||
| 56 | N027646 | 1 | LEVER | XE | |||
| 57 | 608298-00 | 1 | WASHER SPECIAL | XE | |||
| 58 | 324007-10 | 1 | SCREW | XE | |||
| 59 | N032095 | 1 | SCALE | XE | |||
| 60 | A28031 | 1 | ROD | XE | |||
| 61 | N031168 | 1 | ADJUSTER | XE | |||
| 62 | N027984 | 1 | O RING | XE | |||
| 63 | N027987 | 1 | ADJUSTER | XE | |||
| 64 | 608930-00 | 6 | SCREW | XE | |||
| 65 | 397560-00 | 2 | KNOB | XE | |||
| 66 | 098197-09 | 2 | WASHER | XE | |||
| 67 | 607395-00 | 2 | SCREW | XE | |||
| 68 | N029742 | 1 | BASEPLATE | XE | |||
| 69 | N029178 | 4 | SCREW | XE | |||
| 70 | A24767 | 1 | PAD | XE | |||
| 71 | A24764 | 1 | ADJUSTER | XE | |||
| 72 | 330022-18 | 1 | SCREW | XE | |||
| 73 | A24771 | 1 | CLAMPING BAR | XE | |||
| 74 | A24770 | 1 | PIN | XE | |||
| 75 | A24452 | 1 | PIN | XE | |||
| 76 | A27362 | 1 | SPRING | XE | |||
| 77 | N028373 | 1 | RETAINER | XE | |||
| 79 | N029502 | 1 | BRAND LABEL | XE | |||
| 80 | A25250 | 1 | NUT LH | XE | |||
| 81 | A27315 | 1 | CONE | XE | |||
| 82 | A27316 | 1 | PIN | XE | |||
| 84 | N028927 | 1 | WASHER | XE | |||
| 85 | A27895 | 1 | WRENCH SPECIAL | XE | |||
| 86 | A29660 | 1 | ADAPTOR | XE | |||
| 89 | 948651-00 | 1 | FENCE SA | XE | |||
| 95 | 609118-00 | 6 | SPRING | XE | |||
| 96 | 684179 | 1 | RING | XE | |||
| 97 | 945121-00 | 2 | SCREW.TEMP | XE | |||
| 98 | 147107-00 | 1 | KNOB | XE | |||
| 99 | N028927 | 1 | WASHER | XE | |||
| 100 | 931405-00 | 1 | SCREW | XE | |||
| 101 | 330065-08 | 3 | SCREW | M4x18 T20 | XE | ||
| 102 | 868080-00 | 2 | ROD | XE | |||
| 103 | N095607 | 1 | BASE SA | XE | |||
| 104 | 249090-00 | 2 | GUIDE | XE | |||
| 105 | 860205-04 | 4 | SCREW | XE | |||
| 106 | 330045-07 | 1 | SCREW | XE | |||
| 107 | 608928-00 | 1 | SCREW | XE | |||
| 108 | 653599-00 | 1 | WASHER | XE | |||
| 109 | 652834-00 | 1 | SPRING | XE | |||
| 110 | 652835-00 | 1 | SPACER | XE | |||
| 111 | 330015-04 | 1 | NUT | XE | |||
| 112 | 326976-01 | 1 | TURRET | XE | |||
| 113 | 652836-00 | 1 | BALL | XE | |||
| 114 | 249014-01 | 1 | BUSH | XE | |||
| 115 | 945121-00 | 2 | SCREW.TEMP | XE | |||
| 700 | N589075 | 1 | WARNING LABEL | XE | |||
| 701 | N589073 | 1 | WARNING LABEL | XE | |||
| 703 | N589077 | 1 | BRAND LABEL | XE | |||
| 704 | N589078 | 1 | LABEL | XE | |||
| 705 | A28466 | 1 | IDENTITY LABEL | XE | |||
| 860 | H1400196008 | 1 | HANDLE | XE | |||
| 861 | N445186 | 1 | KITBOX | DCW604NT | XE | ||
| 862 | H1500082520 | 2 | LATCH | XE | |||
| 863 | P910190 | 2 | LATCH | XE | |||
| 864 | N593656 | 1 | INSERT | XE | |||
| 871 | N450538 | 1 | CHARGER 10.8V - 18V | XE |
