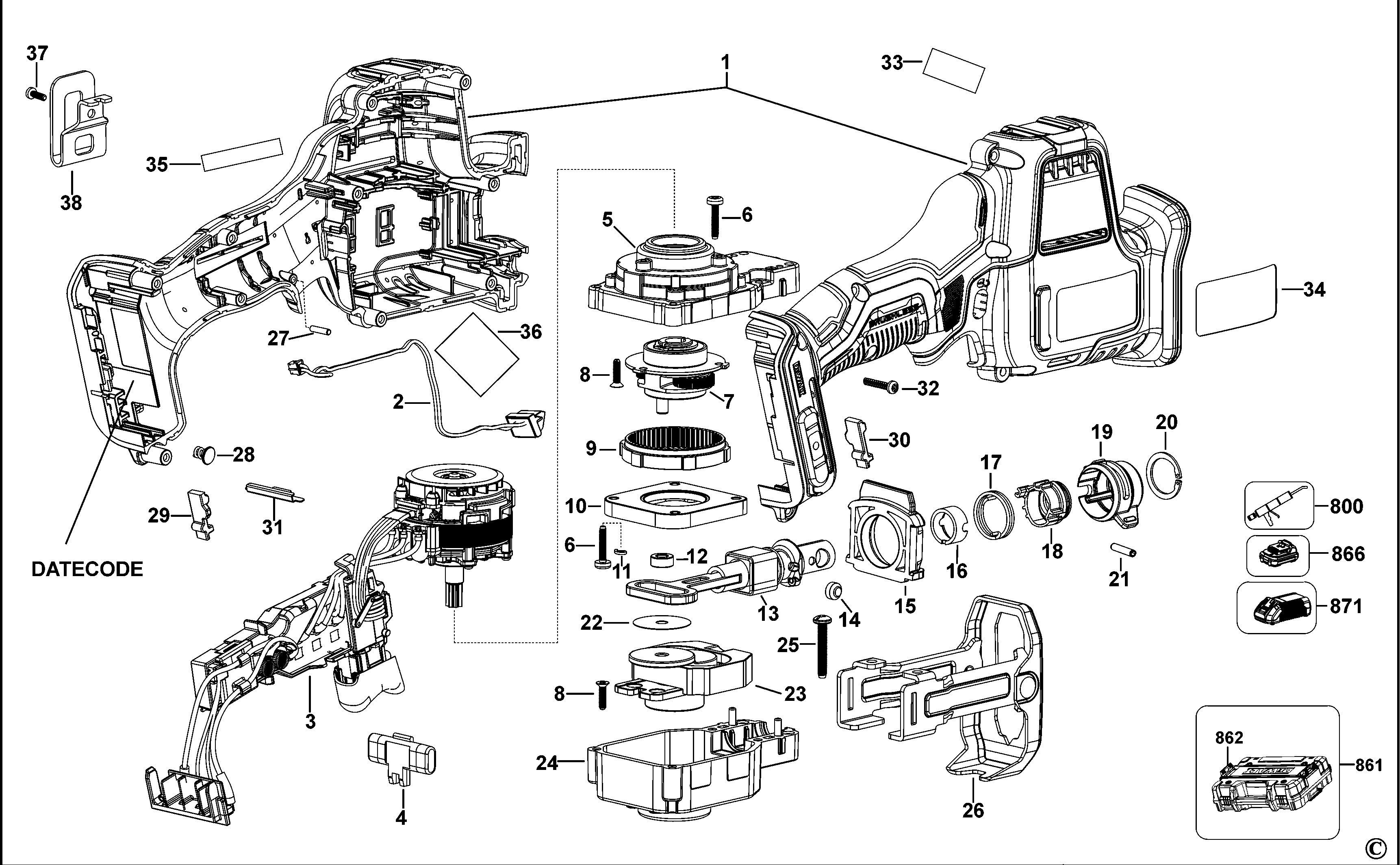

DCS369 CORDLESS RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N719661 | 1 | CLAMSHELL SET | XE | |||
| 2 | N683436 | 1 | LED LIGHT | XE | |||
| 3 | N774470 | 1 | MOTOR SA | XE | |||
| 4 | N650938 | 1 | BUTTON LOCK-OFF | XE | |||
| 5 | N658536 | 1 | GEARCASE | XE | |||
| 6 | 330045-53 | 8 | SCREW | XE | |||
| 7 | N773353 | 1 | CARRIER SA | XE | |||
| 8 | N691339 | 7 | SCREW | M3 X 9 | XE | ||
| 9 | N677836 | 1 | GEAR | XE | |||
| 10 | N658540 | 1 | PLATE THRUST | XE | |||
| 11 | N760370 | 4 | WASHER LOCK | M3 | XE | ||
| 12 | N658544 | 1 | SLEEVE BEARING | XE | |||
| 13 | N773357 | 1 | SHAFT SA | XE | |||
| 14 | N690767 | 1 | PIN | XE | |||
| 15 | N688751 | 1 | RUBBER BOOT | XE | |||
| 16 | N690774 | 1 | SLEEVE | XE | |||
| 17 | N690789 | 1 | SPRING | XE | |||
| 18 | N690518 | 1 | CAM | XE | |||
| 19 | N684560 | 1 | COLLAR | XE | |||
| 20 | N690786 | 1 | CIRCLIP | XE | |||
| 21 | N096408 | 1 | SPIROL PIN | XE | |||
| 22 | N658550 | 1 | WASHER | XE | |||
| 23 | N773358 | 1 | ECCENTRIC SA | XE | |||
| 24 | N773359 | 1 | GEARCASE COVER SA | XE | |||
| 25 | 330045-08 | 1 | SCREW | XE | |||
| 26 | N628892 | 1 | SHOE SA | XE | |||
| 27 | N071836 | 1 | ROLL PIN | XE | |||
| 28 | N453857 | 1 | TERMINAL BLOCK | XE | |||
| 29 | N239160 | 1 | BUMPER | XE | |||
| 30 | N239159 | 1 | BUMPER | XE | |||
| 31 | N467560 | 1 | PLATE | XE | |||
| 32 | 682211-00 | 10 | SCREW | XE | |||
| 33 | N719768 | 1 | LABEL | BRUSHLESS | XE | ||
| 34 | N719783 | 1 | RATING PLATE | EURO | XE | ||
| 35 | N719775 | 1 | BRAND LABEL | 18V | XE | ||
| 36 | N719779 | 1 | WARNING LABEL | EURO | XE | ||
| 37 | N086039 | 1 | HOOK | XE | |||
| 38 | N042665 | 1 | SCREW | XE | |||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | XE | ||
| 861 | N614791 | 1 | KITBOX | XE | |||
| 862 | H1500082008 | 1 | LATCH | XE |
