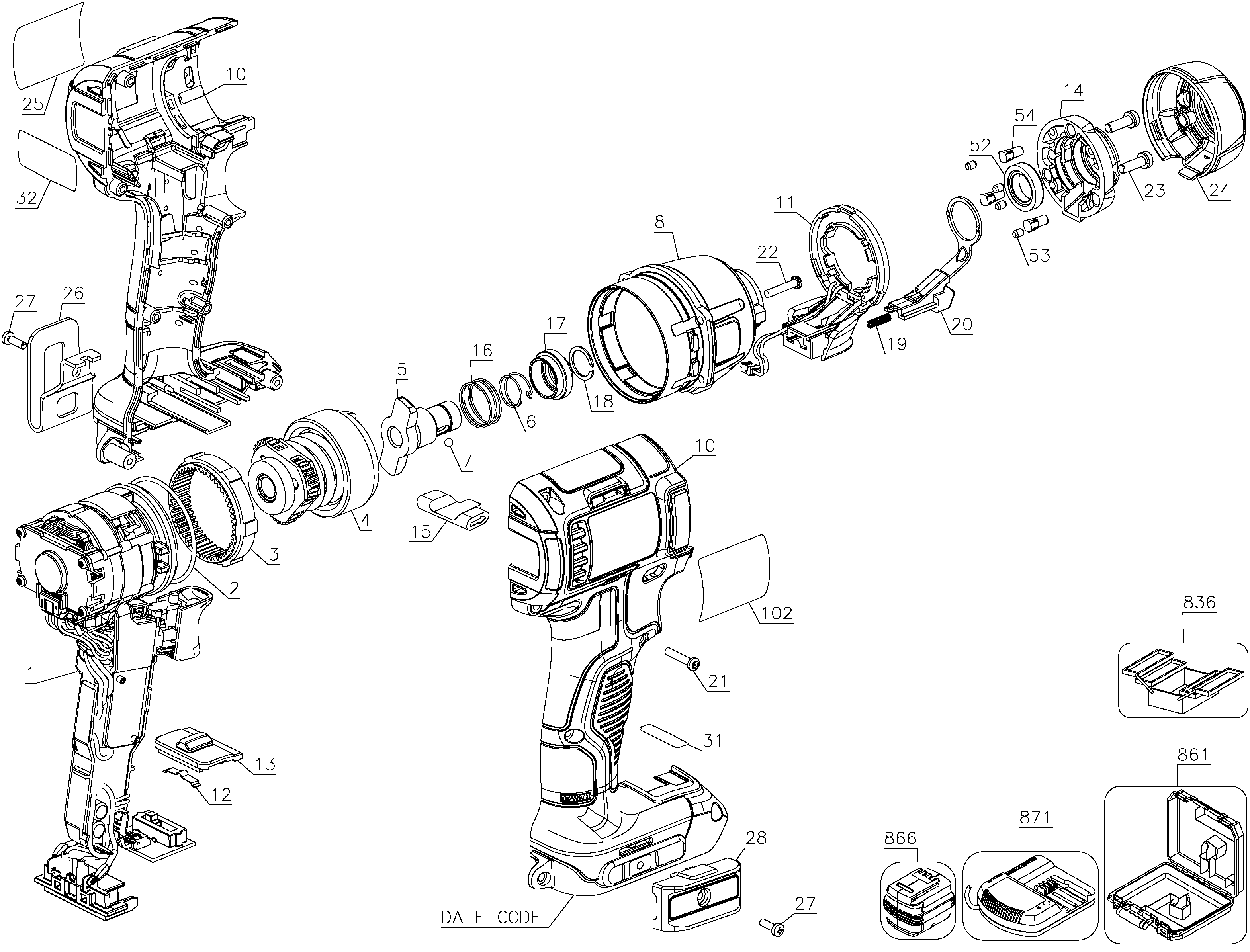

DCF895N IMPACT DRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N154161 | 1 | MOTOR & SWITCH SA | XE | |||
| 2 | N075339 | 1 | O RING | XE | |||
| 3 | N112877 | 1 | GEAR | XE | |||
| 4 | N334879 | 1 | IMPACTOR | XE | |||
| 5 | N072216 | 1 | ANVIL | XE | |||
| 6 | N076032 | 1 | SPRING | XE | |||
| 7 | N089668 | 1 | BALL STEEL | XE | |||
| 8 | N173898 | 1 | NOSE SA | XE | |||
| 10 | N133743 | 1 | CLAMSHELL SET | 18V | XE | ||
| 11 | N045852 | 1 | LED LIGHT | XE | |||
| 12 | N087259 | 1 | DETENT | XE | |||
| 13 | N046201 | 1 | SELECTOR | XE | |||
| 14 | N173899 | 1 | CAP SA | Inc. 52-54 | XE | ||
| 15 | N079835 | 1 | ACTUATOR FWD/REV | XE | |||
| 16 | N041808 | 1 | SPRING | XE | |||
| 17 | N072175 | 1 | SLEEVE | XE | |||
| 18 | N091014 | 1 | RETAINER | XE | |||
| 19 | N041809 | 1 | SPRING | XE | |||
| 20 | N044869 | 1 | ACTUATOR | XE | |||
| 21 | 682211-00 | 7 | SCREW | XE | |||
| 22 | N130792 | 4 | SCREW | XE | |||
| 23 | 562160-12 | 2 | SCREW | XE | |||
| 24 | N048058 | 1 | COVER | XE | |||
| 25 | N153230 | 1 | BRAND LABEL | XE | |||
| 26 | N268241 | 1 | HOOK SA | BELT HOOK, W/SCREW AND INSTRUCTIONS | XE | ||
| 27 | N042665 | 1 | SCREW | XE | |||
| 28 | N095778 | 1 | HOLDER BIT | XE | |||
| 31 | N098119 | 1 | LABEL | XE | |||
| 32 | N153226 | 1 | LABEL | XE | |||
| 52 | N084674 | 1 | SLEEVE BEARING | XE | |||
| 53 | 613372-00 | 4 | RUBBER | XE | |||
| 54 | N125828 | 4 | GUIDE | XE | |||
| 102 | N171063 | 1 | RATING PLATE | XE | XE | ||
| 836 | 233721-07 | 1 | SRT RING EXPAND | FOR INSTALLING ITEM 18 | XE | ||
| 861 | N380212 | 1 | KITBOX | NOT INCLUDED WITH UNIT | XE | ||
| 862 | N037466 | 1 | BAG | XE | |||
| 866 | DCB180-XE | 1 | BATTERY PACK | NOT INCLUDED WITH UNIT | XE | ||
| 871 | DCB105-XE | 1 | CHARGER | NOT INCLUDED WITH UNIT | XE |
