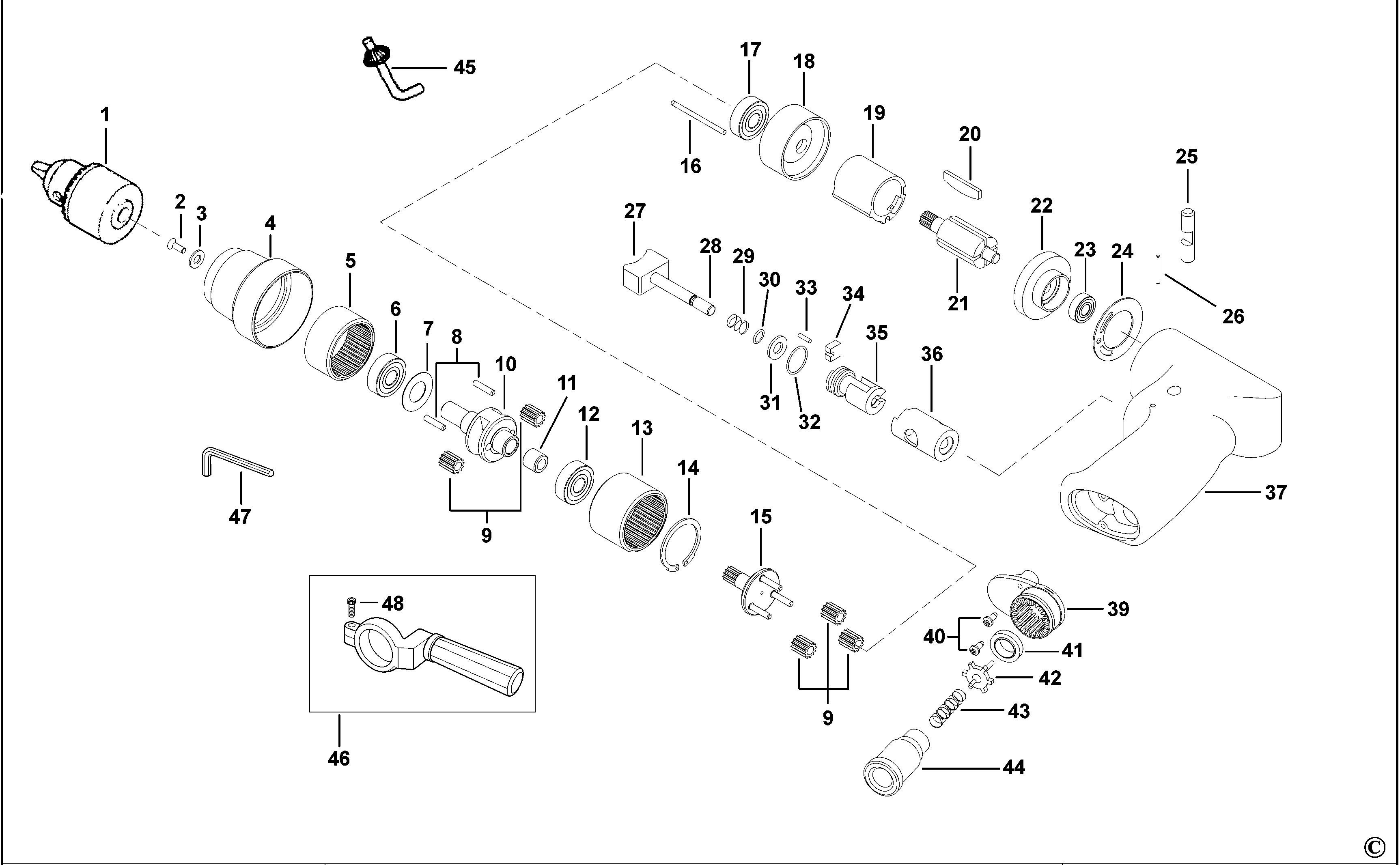

V.D130KR AIR DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004726-71 | 1 | CHUCK | XJ | |||
| 2 | 1004726-72 | 1 | SCREW | XJ | |||
| 3 | 1004726-69 | 1 | SPACER | XJ | |||
| 4 | 1004726-73 | 1 | NUT | XJ | |||
| 5 | 1004726-74 | 1 | GEAR | XJ | |||
| 6 | 1004726-75 | 1 | BEARING,BALL | XJ | |||
| 7 | 1004726-76 | 1 | WASHER | XJ | |||
| 8 | 1004726-66 | 2 | PIN | XJ | |||
| 9 | 1004726-77 | 5 | GEAR | XJ | |||
| 10 | 1004726-78 | 1 | CARRIER | XJ | |||
| 11 | 1004726-79 | 1 | BEARING | XJ | |||
| 12 | 1004726-80 | 1 | BEARING,BALL | XJ | |||
| 13 | 1004726-81 | 1 | GEAR | XJ | |||
| 14 | 1004726-82 | 1 | RETAINER | XJ | |||
| 15 | 1004726-83 | 1 | CARRIER | XJ | |||
| 16 | 1004726-84 | 1 | PIN | XJ | |||
| 17 | 1004725-16 | 1 | BEARING,BALL | XJ | |||
| 18 | 1004726-85 | 1 | PLATE | XJ | |||
| 19 | 1004726-86 | 1 | CYLINDER | XJ | |||
| 20 | 1004726-87 | 5 | ROTOR BLADE | XJ | |||
| 21 | 1004726-88 | 1 | ROTOR | XJ | |||
| 22 | 1004726-89 | 1 | PLATE | XJ | |||
| 23 | 1004726-90 | 1 | BEARING,BALL | XJ | |||
| 24 | 1004726-91 | 1 | GASKET | XJ | |||
| 25 | 1004726-92 | 1 | BUTTON | XJ | |||
| 26 | 1004726-93 | 1 | PIN | XJ | |||
| 27 | 1004726-94 | 1 | TRIGGER | XJ | |||
| 28 | 1004726-95 | 1 | SHAFT | XJ | |||
| 29 | 1004726-96 | 1 | SPRING | XJ | |||
| 30 | 1004726-97 | 1 | O RING | XJ | |||
| 31 | 1004726-98 | 1 | WASHER | XJ | |||
| 32 | 1004727-01 | 1 | O RING | XJ | |||
| 33 | 1004727-02 | 1 | ROLLER | XJ | |||
| 34 | 1004727-03 | 1 | PLATE | XJ | |||
| 35 | 1004727-04 | 1 | REVERSE VALVE | XJ | |||
| 36 | 1004727-05 | 1 | BUSH | XJ | |||
| 37 | 1004727-06 | 1 | HOUSING MOTOR | XJ | |||
| 39 | 1004727-07 | 1 | DEFLECTOR | XJ | |||
| 40 | 1004727-08 | 2 | SCREW | XJ | |||
| 41 | 1004727-09 | 1 | SEAT | XJ | |||
| 42 | 1004727-10 | 1 | VALVE | XJ | |||
| 43 | 1004727-11 | 1 | SPRING | XJ | |||
| 44 | 1004727-12 | 1 | INLET | XJ | |||
| 45 | 1004727-13 | 1 | CHUCK KEY | XJ | |||
| 46 | 1004727-14 | 1 | Handle | XJ | |||
| 47 | 1004727-15 | 1 | BRACKET | XJ | |||
| 48 | 1004727-16 | 1 | SCREW | XJ |
