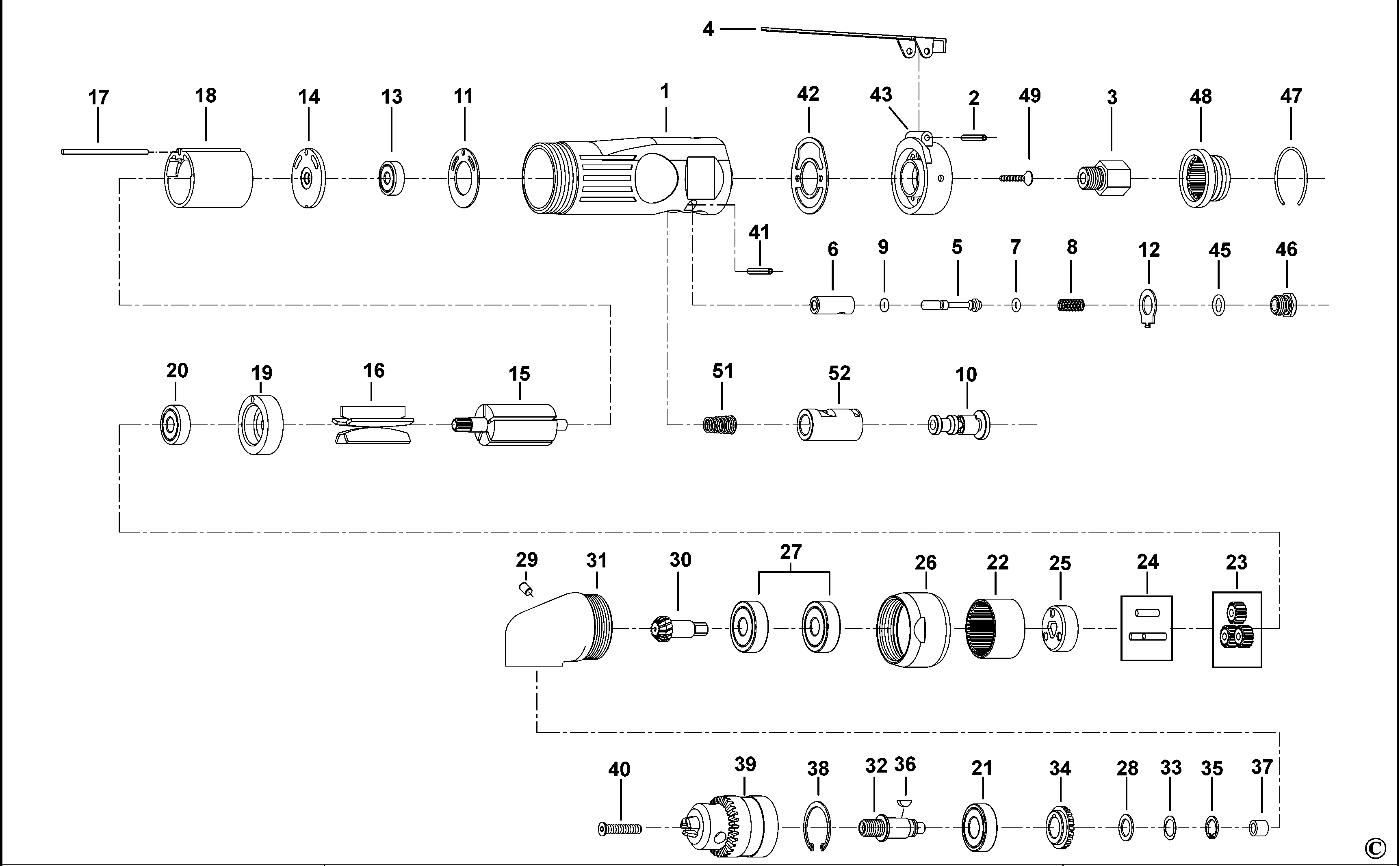

916 B4 AIR DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004726-13 | 1 | HOUSING MOTOR | XJ | |||
| 2 | 1004726-14 | 1 | PIN | XJ | |||
| 3 | 1004726-15 | 1 | INLET | XJ | |||
| 4 | 1004726-16 | 1 | LEVER | XJ | |||
| 5 | 1004726-17 | 1 | VALVE NEEDLE | XJ | |||
| 6 | 1004726-18 | 1 | VALVE | XJ | |||
| 7 | 1004726-19 | 1 | O RING | XJ | |||
| 8 | 1004726-20 | 1 | SPRING | XJ | |||
| 9 | 1004726-21 | 1 | O RING | XJ | |||
| 10 | 1004726-22 | 1 | LEVER | XJ | |||
| 11 | 1004725-86 | 1 | GASKET | XJ | |||
| 13 | 1004726-23 | 2 | BEARING,BALL | XJ | |||
| 14 | 1004725-87 | 1 | PLATE | XJ | |||
| 15 | 1004726-24 | 1 | ROTOR | XJ | |||
| 16 | 1004726-25 | 5 | ROTOR BLADE | XJ | |||
| 17 | 1004726-26 | 1 | PIN | XJ | |||
| 18 | 1004726-27 | 1 | CYLINDER | XJ | |||
| 19 | 1004726-28 | 1 | PLATE | XJ | |||
| 20 | 1004726-29 | 1 | BEARING,BALL | XJ | |||
| 21 | 1004726-30 | 1 | BEARING,BALL | XJ | |||
| 22 | 1004726-31 | 1 | GEAR | XJ | |||
| 23 | 1004726-32 | 3 | GEAR | XJ | |||
| 24 | 1004725-97 | 3 | PIN | XJ | |||
| 25 | 1004726-33 | 1 | CAGE | XJ | |||
| 26 | 1004726-34 | 1 | LOCKING RING | XJ | |||
| 27 | 1004726-35 | 2 | BEARING,BALL | XJ | |||
| 28 | 1004726-36 | 1 | WASHER | XJ | |||
| 29 | 1004726-37 | 1 | CAP | XJ | |||
| 30 | 1004726-38 | 1 | PINION | XJ | |||
| 31 | 1004726-39 | 1 | HOUSING | XJ | |||
| 32 | 1004726-40 | 1 | SPINDLE | XJ | |||
| 33 | 1004726-41 | 1 | WASHER | XJ | |||
| 34 | 1004726-42 | 1 | GEAR | XJ | |||
| 35 | 1004726-43 | 1 | RETAINER | XJ | |||
| 36 | 1004726-44 | 1 | KEY | XJ | |||
| 37 | 1004726-45 | 1 | BUSHING | XJ | |||
| 38 | 1004726-46 | 1 | RETAINER | XJ | |||
| 39 | 1004726-05 | 1 | CHUCK & KEY | XJ | |||
| 40 | 1004726-47 | 1 | SCREW | XJ | |||
| 41 | 1004726-48 | 1 | PIN | XJ | |||
| 42 | 1004726-49 | 1 | GASKET | XJ | |||
| 43 | 1004726-50 | 1 | COVER REAR | XJ | |||
| 45 | 1004726-51 | 1 | O RING | XJ | |||
| 46 | 1004726-52 | 1 | PLUG | XJ | |||
| 47 | 1004726-53 | 1 | RETAINER | XJ | |||
| 48 | 1004726-54 | 1 | DEFLECTOR | XJ | |||
| 49 | 1004726-55 | 2 | SCREW | XJ | |||
| 51 | 1004726-56 | 1 | SPRING | XJ | |||
| 52 | 1004726-57 | 1 | BUSHING | XJ |
