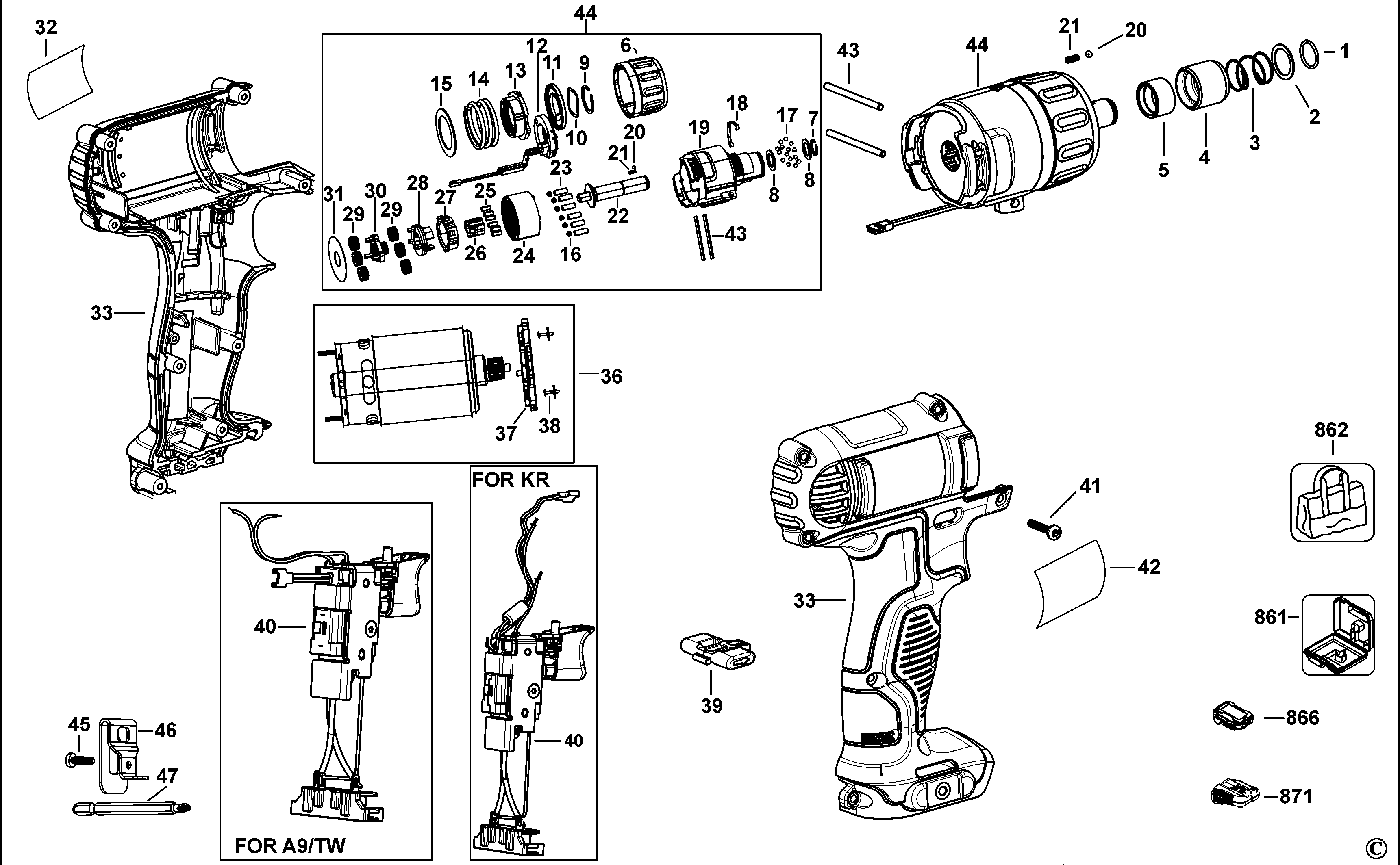

DCF610 螺丝起子 Type 3 | 图纸
文件
零件列表
友好打印
浏览整页
| 项号 | 产品编号 | 数量（每） | 产品说明 | General Description | 其它信息 | 市场 | 产品状态 | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | N055051 | 1 | 止动件 | A9 | ||||
| 2 | N032311 | 1 | 垫圈 | A9 | ||||
| 3 | N020154 | 1 | 弹簧 | A9 | ||||
| 4 | N020153 | 1 | 套筒 | A9 | ||||
| 5 | N025972 | 1 | 垫片 | A9 | ||||
| 6 | N329639 | 1 | COLLAR | A9 | ||||
| 7 | N035362 | 1 | 止动件 | A9 | ||||
| 8 | N017233 | 2 | 止推垫圈 | A9 | ||||
| 9 | N035361 | 1 | 止动件 | A9 | ||||
| 10 | N017239 | 1 | 特制垫圈 | A9 | ||||
| 11 | N017253 | 1 | 盖 | A9 | ||||
| 12 | N078519 | 1 | LED照明灯 | A9 | ||||
| 13 | N323539 | 1 | 调节器扭矩 | A9 | ||||
| 14 | N324999 | 1 | 弹簧 | A9 | ||||
| 15 | N025236 | 1 | 垫圈 | A9 | ||||
| 16 | 604107-00 | 6 | 钢球 | A9 | ||||
| 17 | 389317-00 | 15 | 钢球 | A9 | ||||
| 18 | N330419 | 1 | 制动器 | A9 | ||||
| 19 | N386479 | 1 | 齿轮箱 | + BEARING | A9 | |||
| 20 | N022764 | 1 | 钢球 | A9 | ||||
| 21 | N020157 | 1 | 弹簧 | A9 | ||||
| 22 | N091189 | 1 | 轴 | A9 | ||||
| 23 | N301320 | 6 | 销钉 | A9 | ||||
| 24 | N078522 | 1 | 齿轮 | A9 | ||||
| 25 | N032223 | 6 | 销钉 | A9 | ||||
| 26 | N032577 | 1 | 铁砧 | A9 | ||||
| 27 | 656987-00 | 1 | 锁紧环 | A9 | ||||
| 28 | N078795 | 1 | CARRIER SA | A9 | ||||
| 29 | N017243 | 6 | 齿轮 | A9 | ||||
| 30 | N078794 | 1 | CARRIER SA | A9 | ||||
| 31 | N017249 | 1 | 板 | A9 | ||||
| 32 | N127969 | 1 | 商标 | A9 | ||||
| 33 | N312279 | 1 | 外壳组 | A9 | ||||
| 36 | N391249 | 1 | 马达 | A9 | ||||
| 37 | N025226 | 1 | 板 | A9 | ||||
| 38 | N008721 | 2 | 螺丝 | A9 | ||||
| 39 | N017247 | 1 | 传动 前轮驱动/转速 | A9 | ||||
| 40 | N391245 | 1 | 开关分装配件 | A9 | ||||
| 41 | N329340 | 8 | 螺丝 | A9 | ||||
| 42 | N483906 | 1 | 标识贴纸 | A9 | ||||
| 43 | N030622 | 2 | 销钉 | A9 | ||||
| 44 | N391255 | 1 | 变速箱 | A9 | ||||
| 45 | N042665 | 1 | 螺丝 | A9 | ||||
| 46 | N026657 | 1 | 挂钩 | A9 | ||||
| 47 | N041367 | 1 | 螺丝起子钻头 | A9 | ||||
| 861 | N488394 | 1 | 工具箱 | A9 | ||||
| 862 | N041318 | 1 | 袋 | DCF610D2 | A9 | |||
| 866 | DCB127-A9 | 2 | 10.8V 电池组 | A9 | ||||
| 871 | DCB112-A9 | 1 | 10.8V充电器 | A9 |
