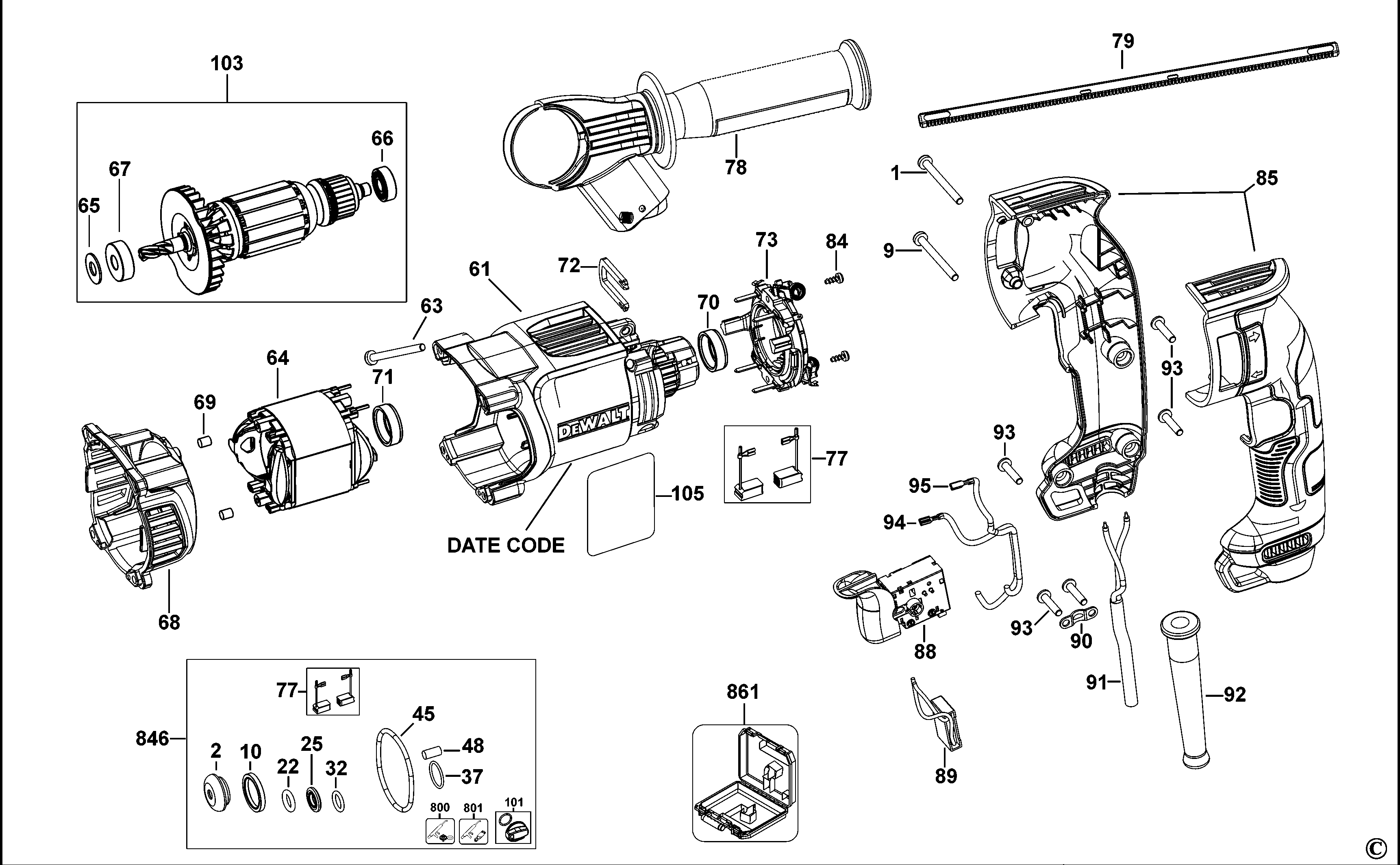

D25133 电锤 Type 1 | 图纸
文件
零件列表
友好打印
浏览整页
| 项号 | 产品编号 | 数量（每） | 产品说明 | General Description | 其它信息 | 市场 | 产品状态 | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | N325879 | 1 | 螺丝 | A9 | ||||
| 2 | 323489-00 | 1 | 螺帽 | A9 | ||||
| 3 | 579212-00 | 1 | 环 | A9 | ||||
| 4 | N720573 | 1 | 管子 | A9 | ||||
| 5 | N629539 | 1 | 球状体 | A9 | ||||
| 6 | 578387-00 | 1 | 垫圈 | A9 | ||||
| 7 | 871690 | 1 | 弹簧 | A9 | ||||
| 8 | N417731 | 1 | 外壳分装配件 | A9 | ||||
| 9 | 330065-16 | 1 | 螺丝 | A9 | ||||
| 10 | N496180 | 1 | 密封件 | A9 | ||||
| 11 | N020023 | 1 | 环形轴承 | A9 | ||||
| 13 | 1005788-00 | 1 | 垫圈 | A9 | ||||
| 17 | 589350-00 | 1 | 垫圈 | A9 | ||||
| 18 | N264677 | 1 | 弹簧 | A9 | ||||
| 19 | N417735 | 1 | 锁紧环 | A9 | ||||
| 20 | N019978 | 1 | 齿轮 | 25T, HIGH SPD. | A9 | |||
| 21 | N406151 | 1 | 锁紧环 | A9 | ||||
| 22 | N394276 | 1 | O形密封圈 | A9 | ||||
| 23 | N470388 | 1 | 导管 | A9 | ||||
| 24 | N417744 | 1 | 冲击子 | A9 | ||||
| 25 | 580990-00 | 1 | O形密封圈 | A9 | ||||
| 26 | N531681 | 1 | 垫圈 | A9 | ||||
| 27 | N294259 | 1 | 环 | A9 | ||||
| 28 | N267565 | 1 | 环 | A9 | ||||
| 29 | N417745 | 1 | 轴承 | A9 | ||||
| 32 | N264642 | 1 | O形密封圈 | A9 | ||||
| 33 | N425231 | 1 | 活塞 | A9 | ||||
| 34 | 1005842-00 | 1 | 垫圈 | A9 | ||||
| 35 | N325041 | 1 | 环形轴承 | A9 | ||||
| 36 | N495931 | 1 | HOUSING 轴承 | A9 | ||||
| 37 | N264673 | 1 | O形密封圈 | A9 | ||||
| 38 | N418018 | 1 | 中间轴分装配件 | A9 | ||||
| 44 | 1005844-00 | 1 | 垫圈 | A9 | ||||
| 45 | N264672 | 1 | O形密封圈 | A9 | ||||
| 46 | N417853 | 1 | COLLAR | A9 | ||||
| 47 | N417859 | 1 | 齿轮 | A9 | ||||
| 48 | 1005812-00 | 2 | 毛毡 | A9 | ||||
| 49 | N445171 | 2 | 螺丝 | A9 | ||||
| 50 | 324006-15 | 3 | 螺丝 | A9 | ||||
| 51 | N493869 | 1 | 板 | A9 | ||||
| 52 | 1005795-00 | 1 | 弹簧 | A9 | ||||
| 55 | N091381-00 | 1 | O形密封圈 | A9 | ||||
| 61 | N481043 | 1 | 马达外壳 | >= WK31 2016 | A9 | |||
| 61 | N489766 | 1 | 服务包 230V | 40MM HV | < WK31 2016 | A9 | ||
| 63 | 330019-39 | 2 | 螺丝 | >=WK19 2016 | A9 | |||
| 64 | N489766 | 1 | 服务包 230V | 40MM HV | < WK31 2016 | A9 | ||
| 64 | N484765 | 1 | FIELD 230V | 40MM HV | >= WK31 2016 | A9 | ||
| 65 | N554533 | 1 | 垫圈 | A9 | ||||
| 66 | 1005895-00 | 1 | 轴承 | A9 | ||||
| 67 | 330003-60 | 1 | 轴承 | A9 | ||||
| 68 | N344965 | 1 | 隔板 | A9 | ||||
| 69 | N489766 | 2 | 服务包 230V | 40MM HV | < WK31 2016 | A9 | ||
| 69 | N476768 | 2 | 橡胶垫 | >= WK31 2016 | A9 | |||
| 70 | N442577 | 1 | 环 | A9 | ||||
| 71 | N442578 | 1 | 轴承盖 | A9 | ||||
| 72 | 1005894-00 | 1 | 夹具 | A9 | ||||
| 73 | N418033 | 1 | 碳刷架 | A9 | ||||
| 77 | N418049 | 1 | 碳刷 P空气 230V | A9 | ||||
| 78 | 1005896-00 | 1 | 侧手柄 | A9 | ||||
| 79 | 798846-02 | 1 | 限深规 | A9 | ||||
| 84 | N475466 | 2 | 螺丝 | >= WK31 2016 | A9 | |||
| 84 | N489766 | 2 | 服务包 230V | 40MM HV | < WK31 2016 | A9 | ||
| 85 | N418012 | 1 | 手柄分装配件 | A9 | ||||
| 88 | N166238 | 1 | 开关锁-打开 | A9 | ||||
| 89 | 320842-19 | 1 | 电容器 | A9 | ||||
| 90 | 329301-00 | 1 | 电绳夹具 | A9 | ||||
| 91 | N410111 | 1 | 电缆线 | A9 | ||||
| 92 | N422466 | 1 | 电绳保护装置 | A9 | ||||
| 93 | 330065-08 | 5 | 螺丝 | M4x18 T20 | A9 | |||
| 94 | N425379 | 1 | LEAD BLUE | A9 | ||||
| 95 | 1005879-01 | 1 | LEAD RED | A9 | ||||
| 97 | N476832 | 4 | 螺丝 | A9 | ||||
| 100 | N424934 | 1 | 主轴分装配件 | A9 | ||||
| 101 | N417861 | 1 | SELECTOR SA | A9 | ||||
| 102 | N418035 | 1 | 冲击块 | A9 | ||||
| 103 | N566901 | 1 | 电枢 230V | A9 | ||||
| 105 | N920474 | 1 | 标识贴纸 | A9 | ||||
| 800 | 870889-02 | 1 | 润滑油 | A9 | ||||
| 801 | 487130-04 | 1 | 润滑油 | GLK FLUID 249 NLGI 000 (10G SERVICE) | A9 | |||
| 836 | 596005-99 | 1 | 维修工具-卡簧拆装 | A9 | ||||
| 836 | 1003959-99 | 1 | 维修工具-卡簧拆装 | A9 | ||||
| 836 | 1003960-99 | 1 | 维修工具-卡簧拆装 | A9 | ||||
| 846 | N418448 | 1 | 服务包 230V | HV | A9 | |||
| 861 | N390353 | 1 | 工具箱 | A9 |
