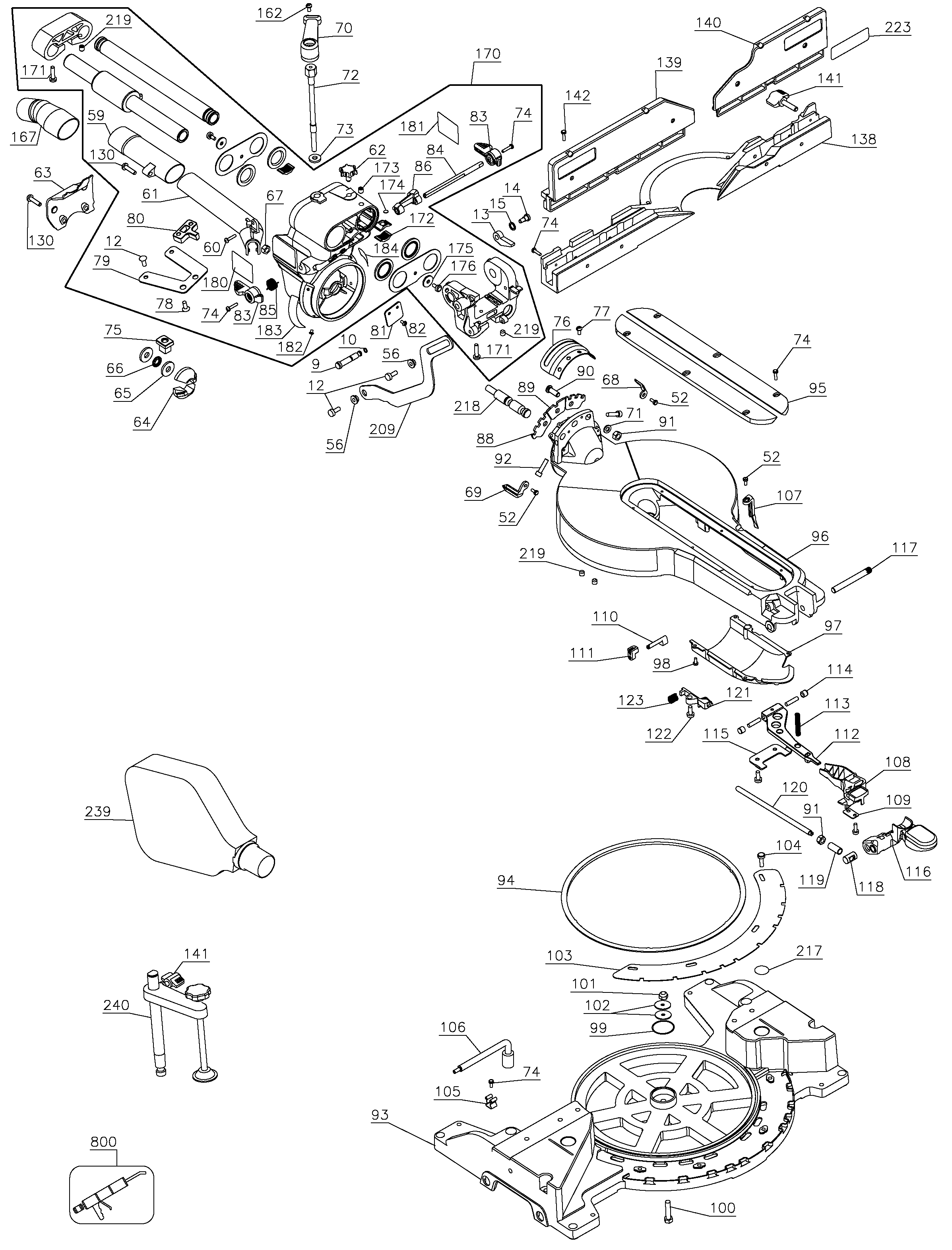

DW718 横切锯 Type 2 | 图纸
文件
| 项号 |
产品编号 |
数量（每） |
产品说明 |
General Description |
其它信息 |
市场 |
产品状态 |
Guide Price |
| 1 |
618175-03SV
|
1 |
ARM 集合 |
|
|
A9 |
![]() |
|
| 2 |
618193-00
|
1 |
传动带盖 |
|
|
A9 |
![]() |
|
| 3 |
330045-14
|
9 |
螺丝 |
|
|
A9 |
![]() |
|
| 4 |
146751-00
|
1 |
传动轴
|
|
|
A9 |
![]() |
|
| 5 |
146732-00
|
2 |
垫片 |
|
|
A9 |
![]() |
|
| 6 |
N039404
|
1 |
弹簧 |
|
|
A9 |
![]() |
|
| 7 |
150075-00
|
2 |
螺丝
|
|
|
A9 |
![]() |
|
| 8 |
148296-00
|
2 |
垫圈 |
|
|
A9 |
![]() |
|
| 9 |
387130-00
|
1 |
防松栓 |
|
|
A9 |
![]() |
|
| 10 |
034158-00
|
1 |
O形密封圈 |
|
|
A9 |
![]() |
|
| 11 |
618189-00
|
1 |
防护支架 |
|
|
A9 |
![]() |
|
| 12 |
330045-23
|
9 |
螺丝
|
|
|
A9 |
![]() |
|
| 13 |
153603-01
|
1 |
棘轮爪 |
|
|
A9 |
![]() |
|
| 14 |
153639-00
|
1 |
螺丝 |
|
|
A9 |
![]() |
|
| 15 |
153655-00
|
1 |
垫圈 |
|
|
A9 |
![]() |
|
| 16 |
N185664
|
1 |
螺丝 |
|
|
A9 |
![]() |
|
| 17 |
150718-00
|
1 |
螺母 WING
|
|
|
A9 |
![]() |
|
| 18 |
N026930
|
1 |
盖 |
LASER CAVITY |
|
A9 |
![]() |
|
| 19 |
385915-02
|
4 |
螺丝 |
|
|
A9 |
![]() |
|
| 20 |
618198-00
|
1 |
螺丝
|
|
|
A9 |
![]() |
|
| 21 |
624195-01
|
1 |
支架 |
|
|
A9 |
![]() |
|
| 22 |
615851-00
|
1 |
衬套 |
|
|
A9 |
![]() |
|
| 23 |
145344-01
|
1 |
刀片螺栓
|
M8 X 20 LH |
|
A9 |
![]() |
|
| 24 |
151962-01
|
1 |
外圈夹具 |
|
|
A9 |
![]() |
|
| 25 |
152636-00
|
1 |
刀片夹 |
|
|
A9 |
![]() |
|
| 26 |
644999-00
|
1 |
内夹垫圈 |
|
|
A9 |
![]() |
|
| 26 |
644999-00
|
1 |
内夹垫圈 |
|
|
A9 |
![]() |
|
| 28 |
393702-00SV
|
1 |
主轴及齿轮 |
|
|
A9 |
![]() |
|
| 29 |
330003-66
|
1 |
轴承,球 |
|
|
A9 |
![]() |
|
| 30 |
391616-00
|
1 |
轴承滚针 |
|
|
A9 |
![]() |
|
| 31 |
393703-00SV
|
1 |
齿轮 |
|
|
A9 |
![]() |
|
| 32 |
605040-20
|
1 |
轴承 |
12 x 28 x 8mm |
|
A9 |
![]() |
|
| 33 |
605040-33
|
1 |
轴承
|
|
|
A9 |
![]() |
|
| 34 |
N105443
|
1 |
PULLEY SA |
inc 33,35 |
|
A9 |
![]() |
|
| 35 |
153752-00
|
2 |
止动件 |
|
|
A9 |
![]() |
|
| 36 |
618244-00
|
1 |
顶杆固定板 |
|
|
A9 |
![]() |
|
| 37 |
330045-49
|
6 |
螺丝 |
|
|
A9 |
![]() |
|
| 38 |
391310-00
|
1 |
支承板 |
|
|
A9 |
![]() |
|
| 39 |
098094-13
|
3 |
螺丝 |
M5 x 13mm, Pan Hd |
|
A9 |
![]() |
|
| 40 |
153796-00
|
1 |
滑轮 |
|
|
A9 |
![]() |
|
| 41 |
153778-00
|
2 |
螺丝
|
M6x20, NYLON PATCH |
|
A9 |
![]() |
|
| 42 |
098198-05
|
2 |
垫圈 |
LOCK, M6 |
|
A9 |
![]() |
|
| 43 |
153782-00
|
2 |
垫圈 |
|
|
A9 |
![]() |
|
| 44 |
393935-00SV
|
1 |
齿轮箱盖 |
|
|
A9 |
![]() |
|
| 45 |
391315-00
|
1 |
垫圈 |
|
|
A9 |
![]() |
|
| 47 |
153555-00
|
1 |
传动带
|
|
|
A9 |
![]() |
|
| 48 |
153554-00
|
1 |
驱动皮带轮 |
|
|
A9 |
![]() |
|
| 49 |
153561-00
|
1 |
防松栓 |
|
|
A9 |
![]() |
|
| 50 |
448176-00
|
1 |
弹簧 |
|
|
A9 |
![]() |
|
| 51 |
393071-00
|
1 |
板 |
|
|
A9 |
![]() |
|
| 52 |
330045-45
|
8 |
螺丝 |
|
|
A9 |
![]() |
|
| 53 |
153559-00
|
1 |
垫圈 |
|
|
A9 |
![]() |
|
| 54 |
153638-00
|
3 |
钥匙 |
|
|
A9 |
![]() |
|
| 56 |
146740-00
|
2 |
套筒 |
|
|
A9 |
![]() |
|
| 57 |
394589-01
|
2 |
螺丝 |
|
|
A9 |
![]() |
|
| 59 |
618157-00
|
1 |
导管 |
FIXED |
|
A9 |
![]() |
|
| 60 |
330045-15
|
8 |
螺丝
|
|
|
A9 |
![]() |
|
| 61 |
624719-00
|
1 |
导管 |
|
|
A9 |
![]() |
|
| 62 |
618156-00
|
1 |
锁钮 |
|
|
A9 |
![]() |
|
| 63 |
618238-00
|
1 |
支撑板 |
SUPPORT HOUSING |
|
A9 |
![]() |
|
| 64 |
618145-00
|
2 |
衬套 |
TAPERED |
|
A9 |
![]() |
|
| 65 |
153769-01
|
2 |
止推垫圈 |
|
|
A9 |
![]() |
|
| 66 |
153451-00
|
1 |
止推轴承 |
|
|
A9 |
![]() |
|
| 67 |
625393-00
|
1 |
锁紧螺母
|
PREVAILING TORQUE |
|
A9 |
![]() |
|
| 68 |
618211-00
|
1 |
指针
|
RIGHT |
|
A9 |
![]() |
|
| 69 |
618235-00
|
1 |
指针
|
LEFT |
|
A9 |
![]() |
|
| 70 |
618236-00
|
1 |
HANDLE |
BEVEL LOCK |
|
A9 |
![]() |
|
| 71 |
330016-24
|
3 |
垫圈 |
|
|
A9 |
![]() |
|
| 72 |
618148-00
|
1 |
连杆
|
BEVEL |
|
A9 |
![]() |
|
| 73 |
603636-00
|
1 |
止推垫圈 |
|
|
A9 |
![]() |
|
| 74 |
330045-06
|
11 |
螺丝 |
|
|
A9 |
![]() |
|
| 75 |
618160-00
|
1 |
模具 |
BEVEL CLAMP |
|
A9 |
![]() |
|
| 76 |
626440-00
|
1 |
弹簧 |
|
|
A9 |
![]() |
|
| 77 |
098103-18
|
4 |
螺丝 |
|
|
A9 |
![]() |
|
| 78 |
098104-19
|
4 |
螺丝 |
M6x1.0x16 T30 |
|
A9 |
![]() |
|
| 79 |
641466-00
|
1 |
弹簧 |
|
|
A9 |
![]() |
|
| 80 |
641467-00
|
1 |
棘轮爪 |
BEVEL DETENT |
|
A9 |
![]() |
|
| 81 |
618162-00
|
1 |
盖 |
BEVEL DETENT |
|
A9 |
![]() |
|
| 82 |
330045-44
|
2 |
螺丝 |
|
|
A9 |
![]() |
|
| 83 |
N019349
|
2 |
LEVER SA |
BEVEL DETENT |
|
A9 |
![]() |
|
| 84 |
618153-00
|
1 |
连杆 |
DETENT ACTUATION |
|
A9 |
![]() |
|
| 85 |
618259-00
|
1 |
扭杆弹簧 |
|
|
A9 |
![]() |
|
| 86 |
618232-00
|
1 |
凸轮 |
|
|
A9 |
![]() |
|
| 88 |
641471-00
|
2 |
板 |
BEVEL |
|
A9 |
![]() |
|
| 89 |
641468-00
|
1 |
板 |
BEVEL |
|
A9 |
![]() |
|
| 90 |
98130-25
|
3 |
车身螺栓 |
|
|
A9 |
![]() |
|
| 91 |
330015-03
|
4 |
螺母 |
M8x1.25 |
|
A9 |
![]() |
|
| 92 |
391346-00
|
2 |
螺丝
|
|
|
A9 |
![]() |
|
| 93 |
645751-00SV
|
1 |
底座组件 |
|
|
A9 |
![]() |
|
| 94 |
618192-00
|
1 |
板 |
|
|
A9 |
![]() |
|
| 95 |
618199-00
|
2 |
板 |
|
|
A9 |
![]() |
|
| 96 |
630711-02SV
|
1 |
TABLE 附件 |
|
|
A9 |
![]() |
|
| 97 |
N401778
|
1 |
盖 |
|
|
A9 |
![]() |
|
| 98 |
330045-05
|
3 |
螺丝 |
|
|
A9 |
![]() |
|
| 99 |
049787-00
|
1 |
O形密封圈 |
|
|
A9 |
![]() |
|
| 100 |
098025-35
|
1 |
螺丝 |
M8x1.25x35 HEX |
|
A9 |
![]() |
|
| 101 |
N044739
|
1 |
锁紧螺母 |
|
|
A9 |
![]() |
|
| 102 |
153792-00
|
2 |
垫圈 |
|
|
A9 |
![]() |
|
| 103 |
618168-00
|
1 |
板
|
|
|
A9 |
![]() |
|
| 104 |
604410-00
|
4 |
螺丝 |
|
|
A9 |
![]() |
|
| 105 |
391358-01
|
1 |
夹持器 |
|
|
A9 |
![]() |
|
| 106 |
608563-01
|
1 |
特种扳手 |
M13 - T30 |
|
A9 |
![]() |
|
| 107 |
618209-00
|
1 |
指针
|
MITER |
|
A9 |
![]() |
|
| 108 |
618169-00
|
1 |
传动装置 |
DETENT SPRING |
|
A9 |
![]() |
|
| 109 |
618243-00
|
1 |
板 |
|
|
A9 |
![]() |
|
| 110 |
622396-00
|
1 |
传动轴 |
|
|
A9 |
![]() |
|
| 111 |
622395-00
|
1 |
锁闭杠杆 |
|
|
A9 |
![]() |
|
| 112 |
N488468
|
1 |
制动器 |
|
|
A9 |
![]() |
|
| 114 |
093128-00
|
2 |
轴承滚针 |
|
|
A9 |
![]() |
|
| 115 |
618254-00
|
1 |
止动件 |
|
|
A9 |
![]() |
|
| 116 |
N082785
|
1 |
杠杆 |
|
|
A9 |
![]() |
|
| 117 |
618187-00
|
1 |
销钉 |
MITER DRIVE |
|
A9 |
![]() |
|
| 118 |
624460-00
|
1 |
销钉 |
|
|
A9 |
![]() |
|
| 119 |
624461-00
|
1 |
套筒 |
|
|
A9 |
![]() |
|
| 120 |
618186-00
|
1 |
连杆 |
|
|
A9 |
![]() |
|
| 121 |
618185-00
|
1 |
模具 |
|
|
A9 |
![]() |
|
| 122 |
385915-03
|
1 |
螺丝 |
|
|
A9 |
![]() |
|
| 123 |
618253-00
|
1 |
压缩弹簧 |
|
|
A9 |
![]() |
|
| 124 |
624730-00
|
1 |
手柄分装配件 |
|
|
A9 |
![]() |
|
| 125 |
330045-18
|
4 |
螺丝 |
|
|
A9 |
![]() |
|
| 126 |
330019-32
|
5 |
螺丝 |
|
|
A9 |
![]() |
|
| 127 |
618270-00
|
1 |
盖 |
HANDLE CAVITY |
|
A9 |
![]() |
|
| 128 |
606056-00
|
1 |
开关 |
|
|
A9 |
![]() |
|
| 129 |
384127-01
|
4 |
螺丝 |
|
|
A9 |
![]() |
|
| 130 |
330045-25
|
3 |
螺丝.TEMP |
M6x25 MTL THD FMG |
|
A9 |
![]() |
|
| 131 |
618276-00
|
1 |
马达电缆 |
|
INCL. 221,222,225 |
A9 |
![]() |
|
| 132 |
604807-07
|
1 |
电缆线
|
|
|
A9 |
![]() |
|
| 133 |
N083060
|
1 |
HANDLE |
|
|
A9 |
![]() |
|
| 134 |
330019-22
|
1 |
螺丝 |
M5.74x32 |
|
A9 |
![]() |
|
| 135 |
398443-00
|
1 |
电缆夹具 |
|
|
A9 |
![]() |
|
| 136 |
N467585
|
1 |
电缆分装配件 |
CORD, LASER |
|
A9 |
![]() |
|
| 137 |
618269-00
|
1 |
盖 |
LASER WIRE |
|
A9 |
![]() |
|
| 138 |
618202-01
|
1 |
挡板 |
|
|
A9 |
![]() |
|
| 139 |
618203-01SV
|
1 |
LEFT FENCE |
|
|
A9 |
![]() |
|
| 140 |
N024409
|
1 |
挡板（右） |
W/ WARNING LABEL |
|
A9 |
![]() |
|
| 141 |
147107-02
|
3 |
下部球形手柄 |
|
|
A9 |
![]() |
|
| 142 |
098105-03
|
4 |
螺丝 |
|
|
A9 |
![]() |
|
| 143 |
391317-05
|
1 |
定子外壳 |
|
|
A9 |
![]() |
|
| 144 |
N093107
|
1 |
电枢 230V |
inc 48,149,150,160 |
|
A9 |
![]() |
|
| 145 |
391318-01SV
|
1 |
定子 |
230V |
|
A9 |
![]() |
|
| 146 |
391282-00
|
1 |
安装支座 |
|
|
A9 |
![]() |
|
| 147 |
394034-00
|
1 |
螺丝 |
|
|
A9 |
![]() |
|
| 148 |
N127530
|
1 |
轴向滚珠 |
|
|
A9 |
![]() |
|
| 149 |
N110359
|
1 |
轴承 |
|
|
A9 |
![]() |
|
| 150 |
144803-00
|
1 |
弹性挡圈 |
|
|
A9 |
![]() |
|
| 151 |
145312-00
|
1 |
插头 |
|
|
A9 |
![]() |
|
| 152 |
98094-55
|
4 |
螺丝 |
M5 X 55mm T25 |
|
A9 |
![]() |
|
| 153 |
391933-01
|
1 |
端盖
|
|
|
A9 |
![]() |
|
| 154 |
330019-13
|
4 |
螺丝 |
M4X19 T20 |
|
A9 |
![]() |
|
| 155 |
330019-19
|
2 |
螺丝 |
|
|
A9 |
![]() |
|
| 156 |
391375-00
|
1 |
BAFFLE FAN |
|
|
A9 |
![]() |
|
| 157 |
389512-01
|
1 |
碳刷 板 |
|
|
A9 |
![]() |
|
| 158 |
391325-00
|
1 |
身份标签 |
|
|
A9 |
![]() |
|
| 159 |
656314-00
|
1 |
铭牌 |
DW718-A9 TY2 |
|
A9 |
![]() |
|
| 160 |
153783-00
|
1 |
环 |
|
|
A9 |
![]() |
|
| 161 |
605155-00
|
1 |
衬套 |
|
|
A9 |
![]() |
|
| 162 |
330045-13
|
3 |
螺丝 |
M5x0.8x10 MTL THDFMG |
|
A9 |
![]() |
|
| 163 |
330019-12
|
1 |
螺丝 |
|
|
A9 |
![]() |
|
| 167 |
618240-00
|
1 |
适配器 |
BAG |
|
A9 |
![]() |
|
| 170 |
650852-00SV
|
1 |
TRUNNION 附件 |
|
|
A9 |
![]() |
|
| 171 |
603390-00
|
8 |
螺丝 |
|
|
A9 |
![]() |
|
| 172 |
397118-00
|
3 |
导引器 |
|
|
A9 |
![]() |
|
| 173 |
153576-04
|
1 |
螺丝
|
|
|
A9 |
![]() |
|
| 174 |
613497-00
|
1 |
止推片
|
|
|
A9 |
![]() |
|
| 175 |
153586-00
|
2 |
垫圈 |
|
|
A9 |
![]() |
|
| 176 |
616001-00
|
1 |
螺丝 |
|
|
A9 |
![]() |
|
| 180 |
618278-00
|
1 |
心轴标签 |
LEFT |
|
A9 |
![]() |
|
| 181 |
618277-00
|
1 |
心轴标签 |
RIGHT |
|
A9 |
![]() |
|
| 182 |
147439-07
|
4 |
铆钉 |
|
|
A9 |
![]() |
|
| 183 |
618262-00
|
1 |
SCALE LH |
|
|
A9 |
![]() |
|
| 184 |
618261-00
|
1 |
SCALE RH |
|
|
A9 |
![]() |
|
| 200 |
393706-00
|
1 |
标签 |
|
|
A9 |
![]() |
|
| 202 |
148608-00
|
2 |
镶块 |
|
|
A9 |
![]() |
|
| 203 |
386780-00
|
2 |
轴承 |
|
|
A9 |
![]() |
|
| 204 |
618230-03
|
1 |
下防护装置 |
|
|
A9 |
![]() |
|
| 205 |
N020822
|
1 |
板 |
|
|
A9 |
![]() |
|
| 206 |
385915-01
|
4 |
螺丝 |
|
|
A9 |
![]() |
|
| 207 |
621037-00
|
1 |
板 |
|
|
A9 |
![]() |
|
| 208 |
146768-00
|
1 |
缓冲器 |
|
|
A9 |
![]() |
|
| 209 |
N142523
|
1 |
连杆 |
|
|
A9 |
![]() |
|
| 212 |
N391680
|
1 |
止动件 |
|
|
A9 |
![]() |
|
| 213 |
N034013
|
1 |
弹簧 |
|
|
A9 |
![]() |
|
| 214 |
148295-00
|
1 |
套筒 |
|
|
A9 |
![]() |
|
| 215 |
625825-00
|
2 |
辊子 |
|
|
A9 |
![]() |
|
| 216 |
142273-00
|
2 |
环 |
|
|
A9 |
![]() |
|
| 217 |
394976-00
|
2 |
标签 |
WARNING |
|
A9 |
![]() |
|
| 218 |
618234-00
|
1 |
双头螺栓
|
|
|
A9 |
![]() |
|
| 219 |
153666-00
|
3 |
螺丝 |
set screw M8 x 8mm long |
|
A9 |
![]() |
|
| 221 |
145332-00
|
4 |
端子 |
|
|
A9 |
![]() |
|
| 222 |
450212-00
|
1 |
端子 |
|
|
A9 |
![]() |
|
| 223 |
395301-00
|
2 |
标签 |
|
|
A9 |
![]() |
|
| 224 |
5140172-16
|
2 |
碳刷组 |
|
|
A9 |
![]() |
|
| 225 |
395716-00
|
3 |
端子 |
RING |
|
A9 |
![]() |
|
| 236 |
618159-01
|
1 |
引线分装配件 |
LASER POWER SUPPLY |
|
A9 |
![]() |
|
| 237 |
393520-00
|
1 |
线夹 |
|
|
A9 |
![]() |
|
| 238 |
388414-01
|
1 |
衬套 |
|
|
A9 |
![]() |
|
| 239 |
147734-06
|
1 |
集尘袋 |
|
|
A9 |
![]() |
|
| 240 |
630065-00
|
1 |
夹具 |
|
3 |
A9 |
![]() |
|
| 243 |
N391680
|
1 |
止动件 |
|
|
A9 |
![]() |
|
| 800 |
429698-00
|
1 |
润滑油 |
BD-L 2 |
|
A9 |
![]() |
|
| 800 |
93488-00
|
1 |
润滑油 |
|
|
A9 |
![]() |
|
