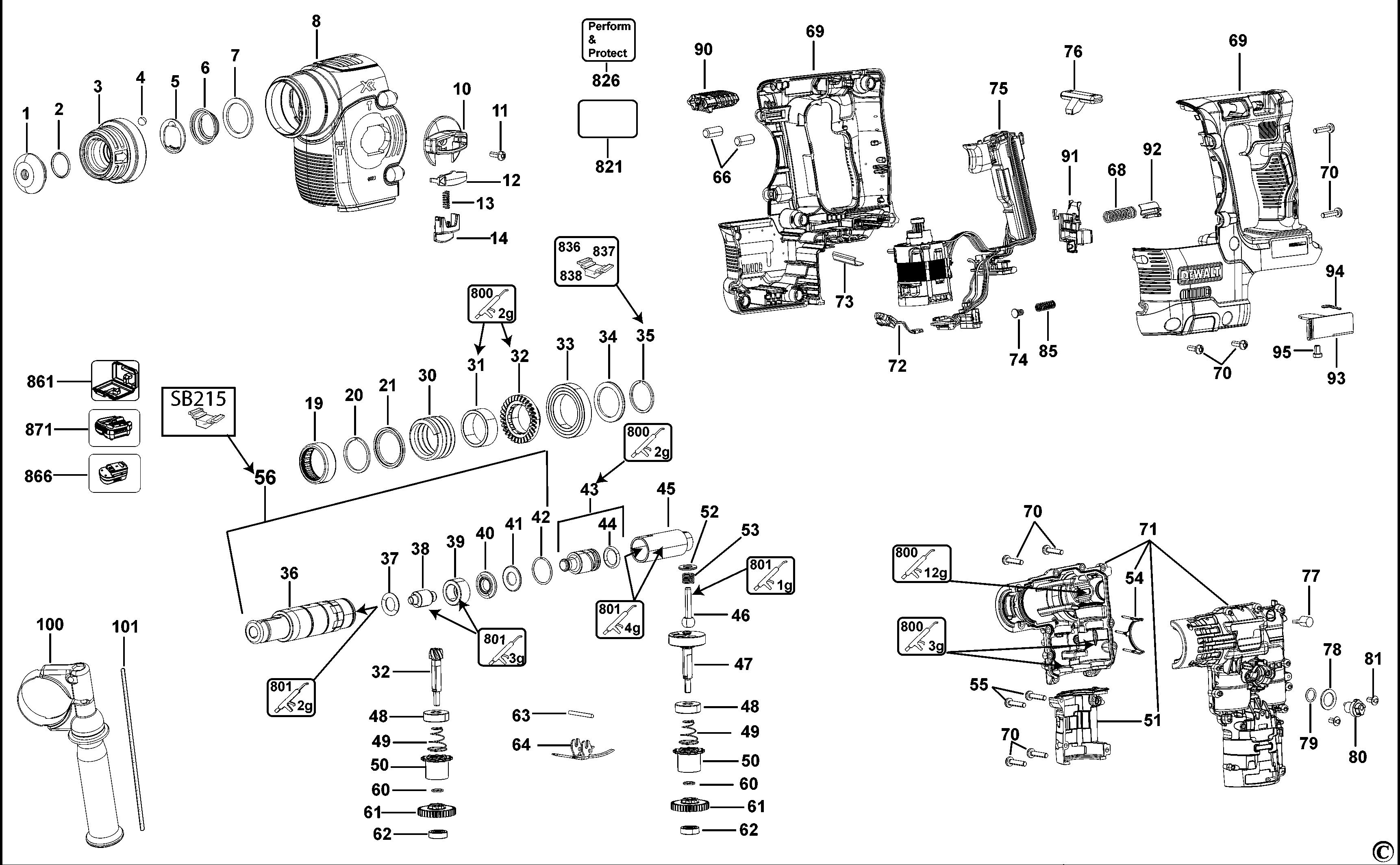

DCH273 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | KR | ||||
| 2 | 579212-00 | 1 | RING | KR | ||||
| 3 | N774198 | 1 | TUBE SA | KR | ||||
| 4 | 583890-00 | 1 | BALL | KR | ||||
| 5 | 578387-00 | 1 | WASHER | KR | ||||
| 6 | 871690 | 1 | SPRING | KR | ||||
| 7 | 590306-00 | 1 | FELT SEAL | KR | ||||
| 8 | N339199 | 1 | GEARCASE COVER | KR | ||||
| 10 | N190510 | 1 | SELECTOR | KR | ||||
| 11 | 324006-16 | 1 | SCREW | KR | ||||
| 12 | N034134 | 1 | COVER | KR | ||||
| 13 | N074923 | 1 | SPRING | KR | ||||
| 14 | N190511 | 1 | BUTTON RELEASE | KR | ||||
| 19 | N149956 | 1 | BEARING NEEDLE | KR | ||||
| 20 | 488105-00 | 1 | CLIP | KR | ||||
| 21 | N043423 | 1 | WASHER | KR | ||||
| 30 | 589346-00 | 1 | SPRING | KR | ||||
| 31 | N410822 | 1 | SLEEVE | KR | ||||
| 32 | N383250 | 1 | GEAR & PINION SA | KR | ||||
| 33 | 479478-00 | 1 | BEARING,BALL | 6906 | KR | |||
| 34 | N043424 | 1 | WASHER | KR | ||||
| 35 | 488390-00 | 1 | CLIP | SW26 1.5mm | KR | |||
| 36 | N719465 | 1 | SPINDLE SA | Upgrade Kit | KR | |||
| 37 | 323711-02 | 1 | O RING | KR | ||||
| 38 | 492808-00 | 1 | BEAT PIECE | NQCC | KR | |||
| 39 | 1005804-00 | 1 | TUBE GUIDE | KR | ||||
| 40 | N451068 | 1 | RETAINER | KR | ||||
| 41 | 327087-00 | 1 | WASHER | KR | ||||
| 42 | 323762-07 | 1 | RING | KR | ||||
| 43 | N178363 | 1 | RAM SA | 19mm; Inc 222+223 | KR | |||
| 44 | N114827 | 1 | O RING | Dynamic 13x3 | KR | |||
| 45 | 492822-00 | 1 | PISTON | KR | ||||
| 46 | 492823-00 | 1 | BALL SPINDLE | KR | ||||
| 47 | N288223 | 1 | CRANKSHAFT | KR | ||||
| 48 | 477133-00 | 2 | BEARING,BALL | KR | ||||
| 49 | N466046 | 1 | SPRING COMPRESSION | KR | ||||
| 50 | N150085 | 2 | COLLAR | KR | ||||
| 51 | N382169 | 1 | MOTOR COVER | KR | ||||
| 52 | N108992 | 1 | WASHER | KR | ||||
| 53 | 490286-00 | 1 | SPRING | KR | ||||
| 54 | N323159 | 1 | SEAL | KR | ||||
| 55 | 330019-81 | 2 | SCREW | KR | ||||
| 56 | N719465 | 1 | SPINDLE SA | Upgrade Kit | see SB125 | KR | ||
| 60 | 323763-10 | 2 | LOCKING RING | 8; | KR | |||
| 61 | N450704 | 2 | GEAR SA | KR | ||||
| 62 | 330003-40 | 2 | BEARING | KR | ||||
| 63 | 590312-00 | 1 | PIN | KR | ||||
| 64 | 575022-00 | 1 | PLATE | KR | ||||
| 66 | 575032-00 | 2 | PIN | KR | ||||
| 68 | 479313-00 | 1 | SPRING | KR | ||||
| 69 | N421939 | 1 | HANDLE SA | KR | ||||
| 70 | 330019-80 | 24 | SCREW | KR | ||||
| 71 | N421951 | 1 | HOUSING GEARBOX | Inc 51 | KR | |||
| 72 | N051450 | 1 | LED | KR | ||||
| 73 | N094649 | 1 | PLATE | KR | ||||
| 74 | N122099 | 1 | BLOCK | KR | ||||
| 75 | N463936 | 1 | MOTOR & SWITCH SA | KR | ||||
| 76 | N072124 | 1 | LEVER | KR | ||||
| 77 | 582865-00 | 1 | FILTER | KR | ||||
| 78 | 1006725-00 | 1 | WASHER SHIM | 12x18x1.2 | KR | |||
| 79 | 323711-34 | 1 | O RING | KR | ||||
| 80 | 575025-00 | 1 | LEVER | KR | ||||
| 81 | 330065-04 | 2 | SCREW | KR | ||||
| 85 | N119679 | 1 | SPRING | KR | ||||
| 90 | N376306 | 1 | SPRING SA | KR | ||||
| 91 | N389213 | 1 | CLIP | KR | ||||
| 92 | N400088 | 1 | CAP | KR | ||||
| 93 | N461541 | 1 | HOOK | Belt | KR | |||
| 94 | N400082 | 1 | SPRING | KR | ||||
| 95 | N400130 | 1 | SCREW | M5x8 | KR | |||
| 100 | N112156 | 1 | HANDLE SIDE SA | KR | ||||
| 101 | N290613 | 1 | DEPTH STOP | KR | ||||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | KR | |||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | KR | |||
| 821 | N402820 | 1 | RATING PLATE | KR | ||||
| 826 | N196274 | 1 | LABEL | PERFORM & PROTECT | KR | |||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | KR | ||||
| 837 | 596006-99 | 1 | S.T.CIRCLIP REMOVER | KR | ||||
| 838 | 596007-99 | 1 | S.T.CIRCLIP INSERTER | KR | ||||
| 861 | 576657-05 | 1 | KITBOX | KR | ||||
| 866 | DCB184-XJ | 2 | BATTERY PACK 18V | 5.0Ah | P2 | KR | ||
| 871 | DCB105-KR | 1 | CHARGER SA | KR | P2 | KR |
