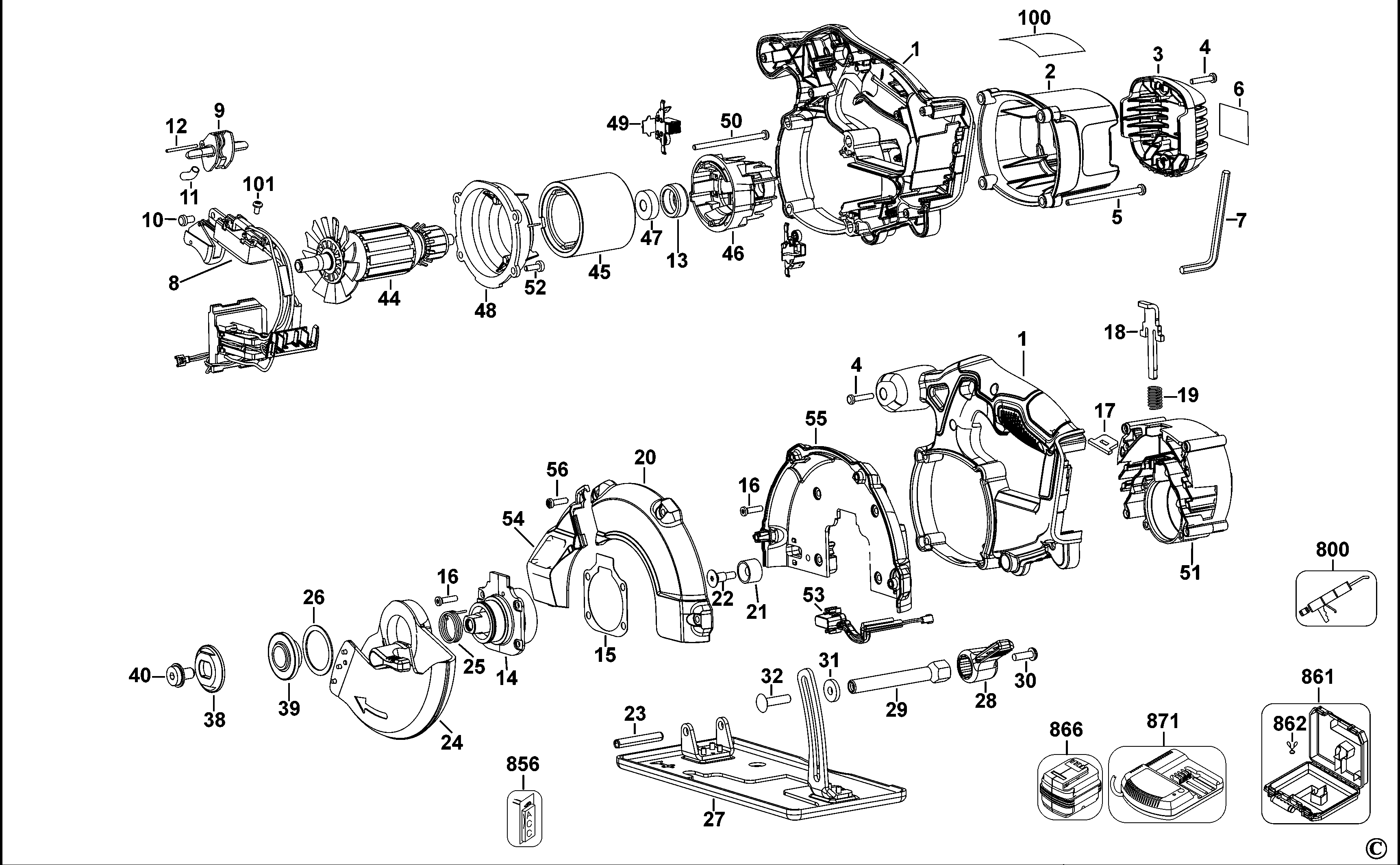

DCS373 CORDLESS CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | N064324 | 1 | CLAMSHELL SET | KR | ||||
| 2 | N054423 | 1 | MOTOR COVER | KR | ||||
| 3 | N173219 | 1 | END CAP | KR | ||||
| 4 | 330019-04 | 8 | SCREW | KR | ||||
| 5 | 398987-00 | 4 | SCREW | KR | ||||
| 6 | N094673 | 1 | BRAND LABEL | KR | ||||
| 7 | 098000-11 | 1 | HEX KEY | KR | ||||
| 8 | N164481 | 1 | SWITCH SA | Euro | KR | |||
| 9 | 605107-00 | 1 | BUTTON LOCK-OFF | KR | ||||
| 10 | 330019-40 | 1 | SCREW | KR | ||||
| 11 | 389120-00 | 1 | SPRING | KR | ||||
| 12 | 388531-00 | 1 | PIN | KR | ||||
| 13 | 631563-00 | 1 | BOOT | KR | ||||
| 14 | 659417-00SV | 1 | SPINDLE SA | KR | ||||
| 15 | 605081-01 | 1 | GASKET | KR | ||||
| 16 | 613783-00 | 8 | SCREW | KR | ||||
| 17 | 605094-00 | 1 | WIPER | KR | ||||
| 18 | 629444-00 | 1 | SPINDLE LOCK | KR | ||||
| 19 | 58698-00 | 1 | SPRING | KR | ||||
| 20 | N095981 | 1 | GUARD UPPER | KR | ||||
| 21 | N248899 | 1 | BUMPER | KR | ||||
| 22 | 610134-00 | 1 | SCREW | KR | ||||
| 23 | 614048-00 | 1 | SPIROL PIN | KR | ||||
| 24 | N275619 | 1 | GUARD LOWER | KR | ||||
| 25 | N035365 | 1 | SPRING | KR | ||||
| 26 | 150383-00 | 1 | RETAINER | KR | ||||
| 27 | N132583 | 1 | SHOE SA | KR | ||||
| 28 | 605105-00 | 1 | LEVER | KR | ||||
| 29 | 618901-00 | 1 | SHAFT | KR | ||||
| 30 | 330045-14 | 1 | SCREW | KR | ||||
| 31 | 142013-00 | 1 | WASHER | KR | ||||
| 32 | 098128-85 | 1 | CARRIAGE BOLT | KR | ||||
| 38 | N621119 | 1 | WASHER OUTER CLAMP | KR | ||||
| 39 | 610046-00 | 1 | WASHER INNER CLAMP | KR | ||||
| 40 | 648697-00 | 1 | BLADE BOLT | KR | ||||
| 44 | N301179 | 1 | ARMATURE SA | PKG'D N216140 | KR | |||
| 45 | 611202-00SV | 1 | MAGNET | KR | ||||
| 46 | N171820 | 1 | SUPPORT BEARING | KR | ||||
| 47 | 330003-60 | 1 | BEARING | KR | ||||
| 48 | 610124-01 | 1 | BAFFLE | KR | ||||
| 49 | 610126-00 | 2 | BRUSHBOX SA | KR | ||||
| 50 | 330019-25 | 2 | SCREW | KR | ||||
| 51 | N225696 | 1 | GEARCASE SA | KR | ||||
| 52 | 330045-45 | 4 | SCREW | KR | ||||
| 53 | N148981 | 1 | LED LIGHT | KR | ||||
| 54 | N218112 | 1 | WINDOW | KR | ||||
| 55 | N095980 | 1 | GUARD UPPER | KR | ||||
| 56 | 330045-06 | 4 | SCREW | KR | ||||
| 100 | N388713 | 1 | RATING LABEL | DCS373M2-KR ty 1 | KR | |||
| 101 | 384127-01 | 4 | SCREW | KR | ||||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | KR | |||
| 856 | N166138 | 1 | BLADE | 5.50 x 30T MTL CTTG | KR | |||
| 861 | N153976 | 1 | KITBOX | KR | ||||
| 862 | 605265-00 | 1 | SPRING CLIP | KR | ||||
| 866 | DCB182-KR | 2 | BATTERY 18V - 4.0AH - 72WH | KR | ||||
| 871 | DCB105-KR | 1 | CHARGER SA | KR | KR |
* These are guideline prices which may vary and do not include VAT or shipping costs.We reserve the right to change prices and conditions without prior notice.
