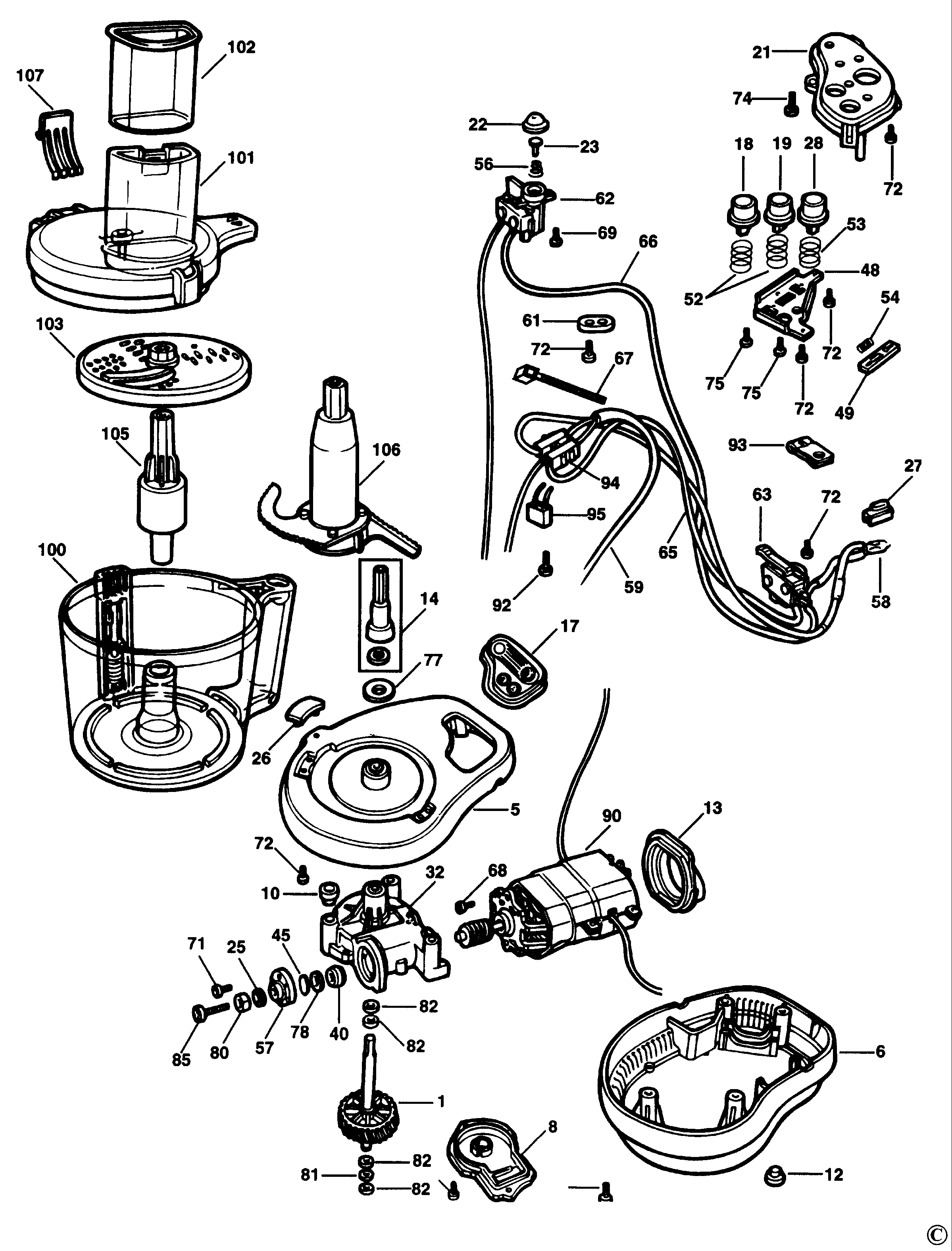

FP35 FOOD PROCESSOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010025-01 | 1 | SHAFT SA | FP1000-1 | XJ | ||
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 6 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 8 | 6010025-08 | 1 | GEARCASE COVER | FP1000-8 | XJ | ||
| 10 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 12 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 13 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 14 | 6010025-14 | 1 | SHAFT SA | FP1000-14 | XJ | ||
| 17 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 19 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 21 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 22 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 23 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 25 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 26 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 27 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 28 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 32 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 40 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 45 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 48 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 49 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 52 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 53 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 54 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 56 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 57 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 58 | 6010025-58 | 1 | NEON | FP1000-58 | XJ | ||
| 59 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 61 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 62 | 6010025-62 | 1 | SWITCH | FP1000-62 | XJ | ||
| 63 | 6010025-63 | 1 | SWITCH SA | FP1000-63 | XJ | ||
| 65 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 66 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 67 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 68 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 69 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 71 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 72 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 74 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 75 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 77 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 78 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 80 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 81 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 82 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 85 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 90 | 6010025-91 | 1 | MOTOR 115V | FP1000-90A | XJ | ||
| 90 | 6010025-90 | 1 | MOTOR 230V | FP1000-90 | XJ | ||
| 92 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 93 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 94 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 95 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 100 | 6010025-20 | 1 | BOWL | FP1000-100 | XJ | ||
| 101 | 6010025-21 | 1 | COVER | FP1000-101 | XJ | ||
| 102 | 6010025-22 | 1 | FOOD PUSHER | FP1000-102 | XJ | ||
| 103 | 6010025-23 | 1 | DISC | FP1000-103 | XJ | ||
| 105 | 6010025-25 | 1 | ADAPTOR | FP1000-105 | XJ | ||
| 106 | 6010025-26 | 1 | BLADE SA | FP1000-106 | XJ | ||
| 107 | 6010025-27 | 1 | FOOD HOLDER | FP1000-107 | XJ |
