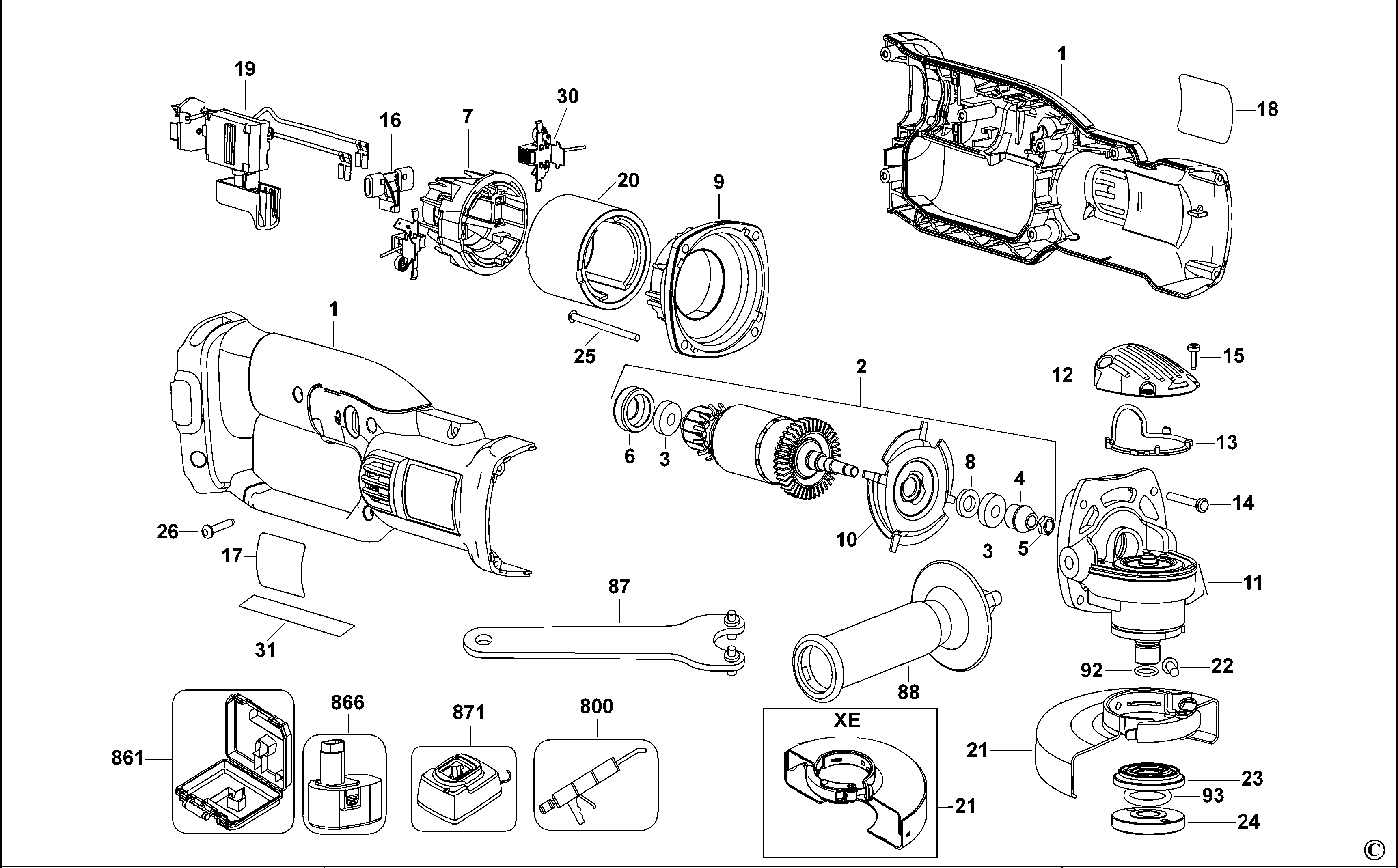

DC411 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 640879-00 | 1 | CLAMSHELL SET | Housing 18 volt | XE | ||
| 2 | 652479-00SV | 1 | ARMATURE SA | XE | |||
| 3 | 330003-60 | 2 | BEARING | XE | |||
| 4 | 623564-00 | 1 | PINION | 9 TOOTH | XE | ||
| 5 | 604484-00 | 1 | NUT | XE | |||
| 6 | 631563-00 | 1 | BOOT | XE | |||
| 7 | N171820 | 1 | SUPPORT BEARING | XE | |||
| 8 | 623617-00 | 1 | FELT SEAL | XE | |||
| 9 | 640579-01 | 1 | BAFFLE FAN | XE | |||
| 10 | N422242 | 1 | RETAINER | XE | |||
| 11 | N286839 | 1 | GEARCASE SA | M14 | XE | ||
| 12 | 623562-00 | 1 | GEARCASE COVER | XE | |||
| 13 | 623618-00 | 1 | GASKET | XE | |||
| 14 | 330065-13 | 4 | SCREW | XE | |||
| 15 | 385676-01 | 4 | SCREW | XE | |||
| 16 | 646976-00 | 1 | BUTTON LOCK-OFF | XE | |||
| 17 | N009259 | 1 | RATING PLATE | XE | |||
| 18 | 646006-00 | 1 | IDENTITY LABEL | XE | |||
| 19 | 650920-01 | 1 | SWITCH SA | XE | |||
| 20 | 611202-00SV | 1 | MAGNET | XE | |||
| 21 | 397661-01 | 1 | GUARD SA | 4.5 IN TYPE 27 | XE | ||
| 21 | 643772-00 | 1 | GUARD SA | 4.5IN CUTOFF (TYPE1) | XE | ||
| 22 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | XE | ||
| 23 | 633257-00SV | 1 | INNER FLANGE SA | INCL 93 | XE | ||
| 24 | 622613-02 | 1 | OUTER FLANGE | M14 | XE | ||
| 25 | 330019-25 | 2 | SCREW | XE | |||
| 26 | 90611830 | 6 | SCREW | XE | |||
| 30 | 610126-00 | 2 | BRUSHBOX SA | XE | |||
| 31 | 659067-00 | 1 | RATING PLATE | XE | |||
| 87 | 401680-00 | 1 | WRENCH | XE | |||
| 88 | N401305 | 1 | SIDE HANDLE | XE | |||
| 92 | 633044-00 | 1 | O RING | XE | |||
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | XE | ||
| 800 | 870889-02 | 1 | GREASE | XE | |||
| 861 | 647578-00 | 1 | KITBOX | XE | |||
| 866 | 389795-23 | 1 | BATTERY 18V - 2.4AH | DC9096 18 V NICD | DC411KA | XE | |
| 866 | N019332 | 1 | BATTERY 18V - 2.0AH - 36WH | Li-Ion - DC9180; Li-Ion - DC9180-XE | DC411KL | XE | |
| 871 | DC9310-XE | 1 | CHARGER 7.2V - 18V | Li-Ion | DC411KL | XE | |
| 871 | DE9116 | 1 | CHARGER 7.2V - 18V | Ni-Cad - NiMH - 1 hr | DC411KA | XE |
