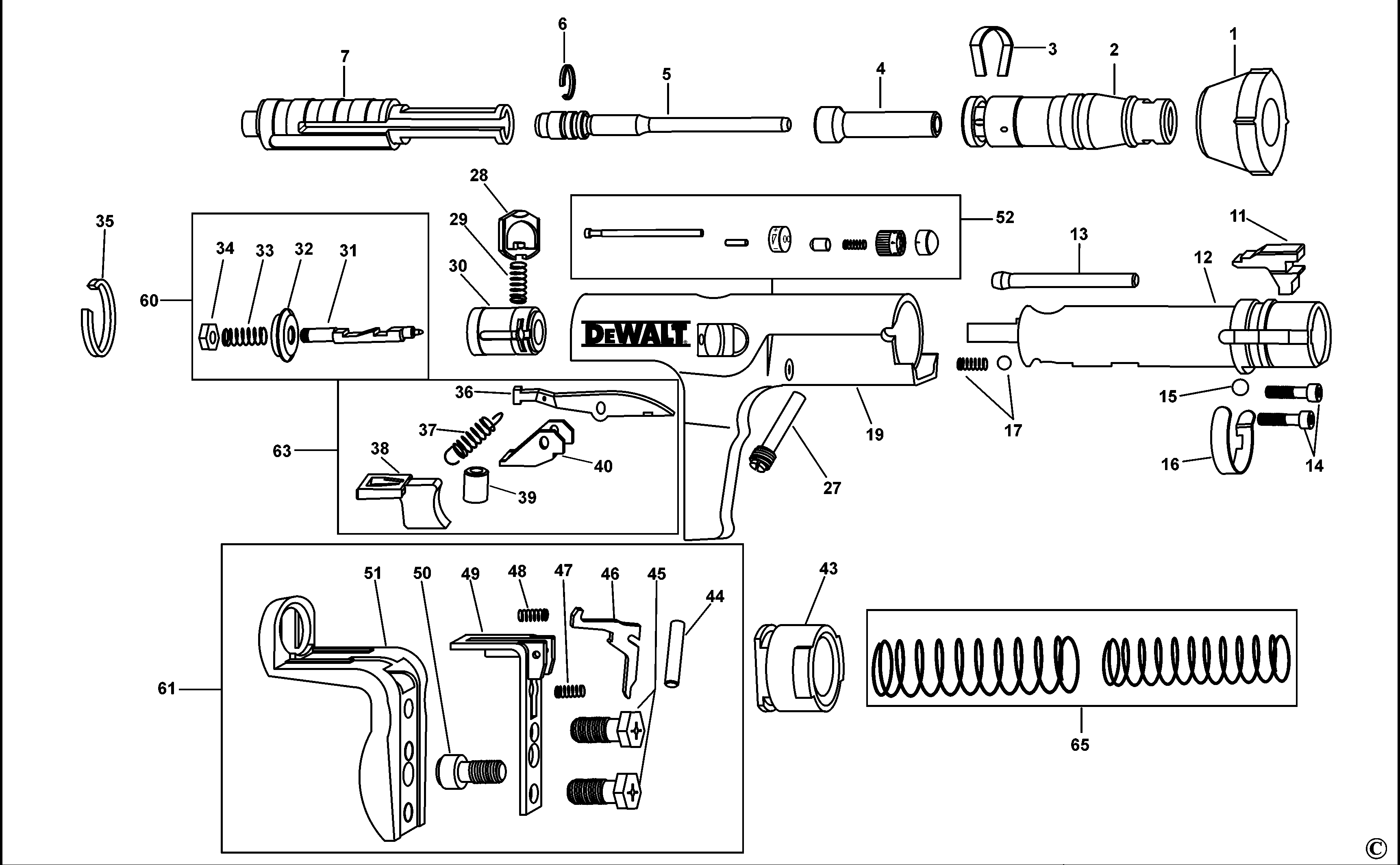

DDF2120400 NAILER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	52166-PWR	1	STABILISER LEG		XJ
2	52110-PWR	1	BASEPLATE		XJ
3	52120-PWR	1	CLIP		XJ
4	52108-PWR	1	GUIDE		XJ
5	52103-PWR	1	PISTON		XJ
6	52106-PWR	1	PISTON RING		XJ
7	52160-PWR	1	GUIDE		XJ
11	52112-PWR	1	STOP		XJ
12	52163-PWR	1	LINER		XJ
13	52152-PWR	1	PIN		XJ
14	52158-PWR	2	SCREW		XJ
15	52122-PWR	1	BALL STEEL		XJ
16	52136-PWR	1	SPRING CLIP		XJ
17	52140-PWR	1	KIT		XJ
19	1004697-07	1	HOUSING	DeWALT	XJ
27	52128-PWR	1	PIN		XJ
28	52146-PWR	1	LEVER		XJ
29	52134-PWR	1	SPRING COMPRESSION		XJ
30	52178-PWR	1	SPRING GUIDE		XJ
31	52148-PWR	1	PIN		XJ
32	52180-PWR	1	DETENT		XJ
33	52138-PWR	1	SPRING COMPRESSION		XJ
34	52156-PWR	1	NUT		XJ
35	52172-PWR	1	RING		XJ
36	52130-PWR	1	LEVER		XJ
37	52142-PWR	1	SPRING		XJ
38	52118-PWR	1	TRIGGER		XJ
39	52176-PWR	1	BUSHING		XJ
40	52132-PWR	1	GUIDE		XJ
43	52150-PWR	1	END CAP		XJ
44	52124-PWR	1	PIN		XJ
45	52182-PWR	2	SCREW		XJ
46	52170-PWR	1	LEVER		XJ
47	52174-PWR	1	SPRING COMPRESSION		XJ
48	52154-PWR	1	SPRING COMPRESSION		XJ
49	52168-PWR	1	GLIDE STRIP		XJ
50	52184-PWR	1	SCREW		XJ
51	52186-PWR	1	GRIP		XJ
52	52159-PWR	1	ADJUSTER SA		XJ
60	52181-PWR	1	KIT		XJ
61	52187-PWR	1	REPAIR KIT		XJ
63	52126-PWR	1	KIT		XJ
65	52144-PWR	1	SPRING SA		XJ
