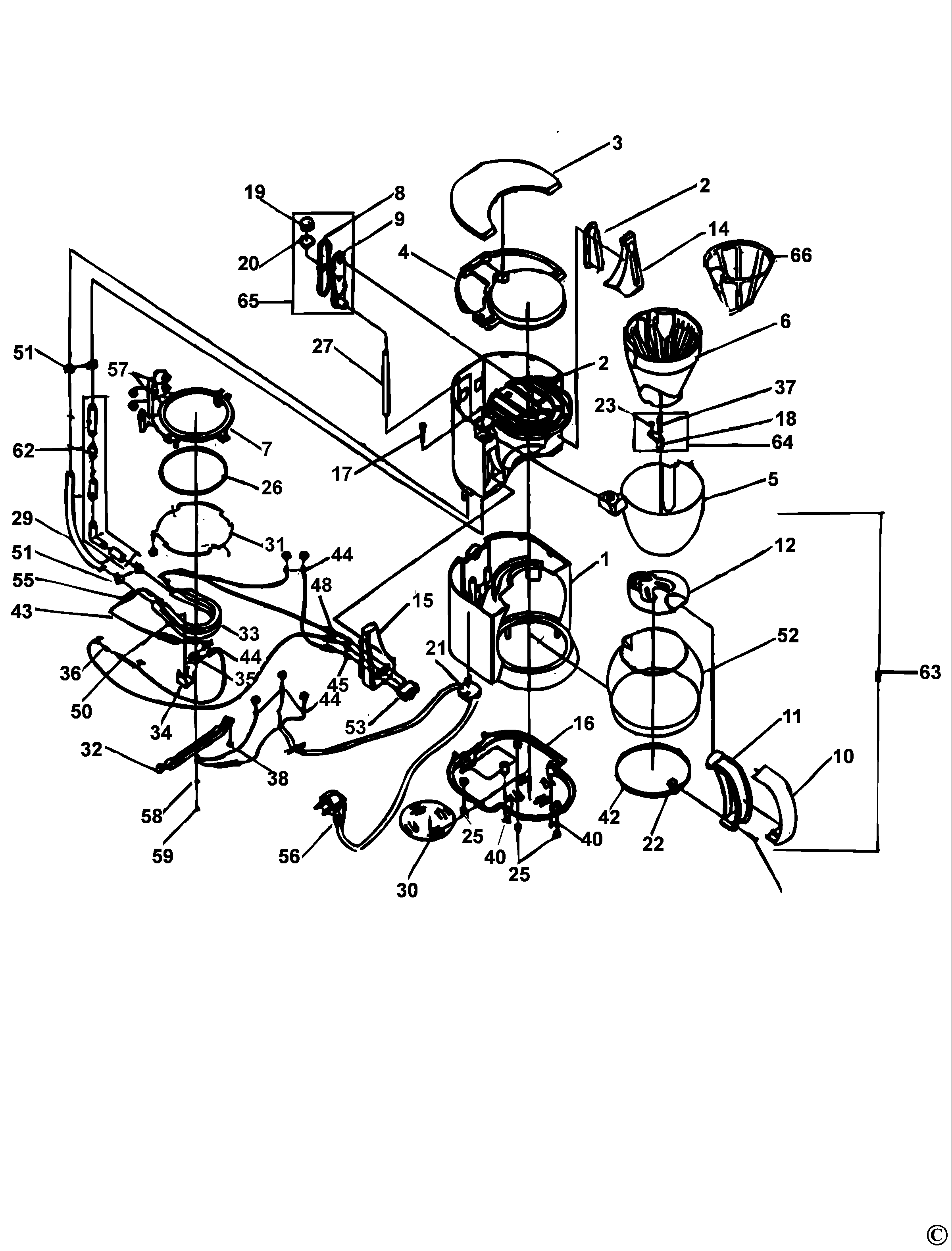

DCM55 COFFEEMAKER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010008-01 | 1 | HOUSING LOWER | B1 |  |
||
| 1 | 6010008-70 | 1 | HOUSING LOWER | B1 | |
||
| 2 | 6010008-02 | 1 | HOUSING UPPER | B1 | |
||
| 2 | 6010008-71 | 1 | HOUSING UPPER | B1 | |
||
| 3 | 6010008-03 | 1 | COVER-TOP | B1 | |
||
| 3 | 6010008-72 | 1 | COVER-TOP | B1 | |
||
| 4 | 6010008-04 | 1 | BRACKET | COVER | B1 | |
|
| 4 | 6010008-73 | 1 | BRACKET | COVER | B1 | |
|
| 5 | 6010008-05 | 1 | HOLDER | FILTER HOLDER,OUTER | B1 | |
|
| 5 | 6010008-74 | 1 | HOLDER | FILTER HOLDER,OUTER | B1 | |
|
| 6 | 6010008-06 | 1 | HOLDER | FILTER HOLDER,INNER | B1 | |
|
| 6 | 6010008-75 | 1 | HOLDER | FILTER HOLDER,INNER | B1 | |
|
| 7 | 6010008-07 | 1 | RING | INSULATION RING | B1 | |
|
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 9 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 10 | 6010008-10 | 1 | HANDLE COVER | B1 | |
||
| 10 | 6010008-76 | 1 | HANDLE COVER | B1 | |
||
| 11 | 6010008-11 | 1 | HANDLE COVER | COVER HANDLE | B1 | |
|
| 11 | 6010008-77 | 1 | HANDLE COVER | COVER HANDLE | B1 | |
|
| 12 | 6010008-78 | 1 | COVER | CARAFE COVER | B1 | |
|
| 12 | 6010008-12 | 1 | COVER | B1 | |
||
| 14 | 6010008-14 | 1 | PANEL RH | B1 | |
||
| 14 | 6010008-79 | 1 | PANEL RH | B1 | |
||
| 15 | 6010008-15 | 1 | PANEL LH | B1 | |
||
| 15 | 6010008-80 | 1 | PANEL LH | B1 | |
||
| 16 | 6010008-81 | 1 | COVER | BASE COVER | B1 | |
|
| 16 | 6010008-16 | 1 | COVER | BASE COVER | B1 | |
|
| 17 | 6010008-82 | 1 | PIN | FUNNEL HINGE PIN | B1 | |
|
| 17 | 6010008-17 | 1 | PIN | FUNNEL HINGE PIN | B1 | |
|
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 19 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 21 | 6010008-21 | 1 | SUPPORT | CORD SUPPORT | B1 | |
|
| 22 | 6010008-22 | 1 | NUT | HANDLE NUT | B1 | |
|
| 23 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 25 | 6010008-25 | 1 | FOOT | RUBBER | B1 | |
|
| 26 | 6010008-26 | 1 | SEAL | SEAL RING | B1 | |
|
| 27 | 6010008-27 | 1 | TUBE | RISER TUBE | B1 | |
|
| 29 | 6010008-29 | 1 | COUPLING | B1 | |
||
| 30 | 6010008-30 | 1 | PLATE | METAL PLATE | B1 | |
|
| 31 | 6010008-31 | 1 | PLATE | WARMING PLATE | B1 | |
|
| 32 | 6010008-32 | 1 | BRACKET | HEATER | B1 | |
|
| 33 | 6010008-33 | 1 | HEATER SA | B1 | |
||
| 34 | 6010008-34 | 1 | BRACKET | THERMOSTAT | B1 | |
|
| 35 | 6010008-35 | 1 | THERMOSTAT | B1 | |
||
| 36 | 6010008-36 | 1 | FUSE | B1 | |
||
| 37 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 38 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 40 | 6010008-40 | 1 | SCREW | B1 | |
||
| 42 | 6010008-42 | 1 | BAND | METAL BAND | B1 | |
|
| 43 | 6010008-43 | 1 | LEADWIRE | B1 | |
||
| 44 | 000000-00 | 2 | NO LONGER AVAILABLE | B1 | |||
| 45 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 48 | 6010008-48 | 1 | SLEEVE | FIBRE GLASS SLEEVING | B1 | |
|
| 50 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 51 | 6010008-51 | 1 | CLAMP | HOSE CLAMP | B1 | |
|
| 52 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 53 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 55 | 6010008-55 | 1 | SLEEVE | FIBRE GLASS SLEEVING | B1 | |
|
| 56 | 6010008-56 | 1 | CORDSET | B1 | |
||
| 56 | 6010008-83 | 1 | CORDSET | B1 | |
||
| 57 | 6010008-57 | 1 | PLATE | BRASS PLATE | B1 | |
|
| 58 | 6010008-58 | 1 | WASHER | B1 | |
||
| 59 | 6010008-59 | 1 | SCREW | B1 | |
||
| 62 | 6010008-62 | 1 | VALVE | B1 | |
||
| 63 | 6010008-84 | 1 | CARAFE | CARAFE ASSY | B1 | |
|
| 63 | 6010008-63 | 1 | CARAFE | B1 | |
||
| 64 | 6010008-87 | 1 | VALVE | ANTY DRIP VALVE BLAC | B1 | |
|
| 64 | 6010008-64 | 1 | VALVE | ANTI-DRIP VALVE WHIT | B1 | |
|
| 65 | 6010008-65 | 1 | SELECTOR SA | AROMA SELECTOR ASSY | B1 | |
|
| 65 | 6010008-85 | 1 | SELECTOR SA | AROMA SELECTOR ASSY | B1 | |
|
| 66 | 6010008-86 | 1 | FILTER | PERMANENT FILTER | B1 | |
|
| 66 | 6010008-66 | 1 | FILTER | B1 | |
