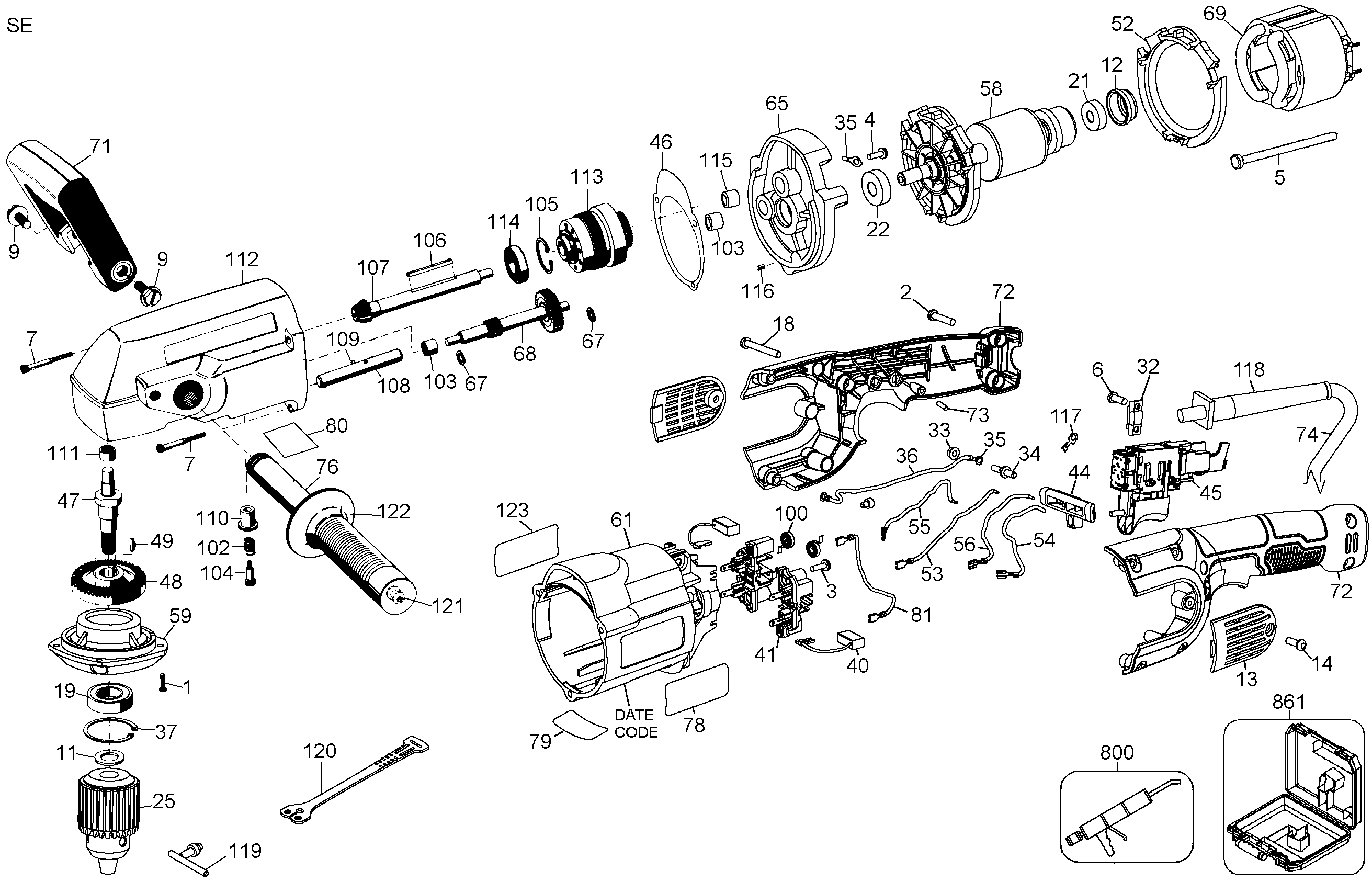

DW124 1/2IN STUD/JOINT DRILL Type 3 | Dibujos
Documentos
Listado de Piezas
Vea el menú desplegable pues algunos productos pueden tener varios dibujos
IMPRIMIR
Ver página completa
| ART. | Referencia | Cant. | Descrip. | Otra descrip. | Otra info. | Mercados | Estado |
|---|---|---|---|---|---|---|---|
| 1 | 98119-16 | 4 | SCREW | M4 x 16mm | QUMX | ||
| 2 | 330019-32 | 3 | SCREW | QUMX |  |
||
| 3 | 176951-00 | 2 | SCREW | QUMX |  |
||
| 4 | 330045-05 | 1 | SCREW | QUMX | |
||
| 5 | 330019-30 | 2 | SCREW | QUMX | |
||
| 6 | 330019-11 | 2 | SCREW | M4.55x13 T20 | QUMX | |
|
| 7 | 631450-00 | 3 | SCREW | M5.28X51 PL THD FMG | QUMX | ||
| 9 | 135576-00 | 2 | SCREW | QUMX | |||
| 11 | 445919-00 | 1 | WASHER | QUMX | |||
| 12 | 445217-02 | 1 | SLEEVE | QUMX | |
||
| 13 | 656362-00 | 2 | BRUSH DOOR | REMOVE RIB ON INSIDE OF DOOR | QUMX | ||
| 14 | 330019-12 | 2 | SCREW | QUMX | |
||
| 18 | 330019-16 | 4 | SCREW | QUMX | |||
| 19 | 605040-31 | 1 | BEARING | QUMX | |||
| 21 | 330003-04 | 1 | BEARING | QUMX | |
||
| 22 | 330003-17 | 1 | BEARING | QUMX | |
||
| 25 | 5140204-44 | 1 | CHUCK & KEY | NPP 1/2in CAP 5/8-16 | QUMX | |
|
| 32 | 450877-00 | 1 | CORD CLAMP | QUMX | |
||
| 33 | 389031-00 | 1 | NUT | QUMX | |
||
| 34 | 389007-00 | 1 | DBL-END SCREW | QUMX | |
||
| 35 | 053650-00 | 2 | TERMINAL | QUMX | |||
| 36 | N411030 | 1 | LEAD ASSY. | GREEN (160MM) | QUMX | ||
| 37 | 046934-00 | 1 | RING | QUMX | |||
| 40 | 655213-02 | 2 | BRUSH 115V | QUMX | |
||
| 41 | 616857-00 | 2 | BRUSH HOLDER | QUMX | |||
| 44 | N404466 | 1 | FWD/REV BUTTON | QUMX | |||
| 45 | N402580 | 1 | VSR SWITCH | QUMX | |||
| 46 | 143692-00 | 1 | GASKET | QUMX | |||
| 47 | 445911-00 | 1 | SPINDLE | 5/8-16 THREAD | QUMX | ||
| 48 | 135517-00 | 1 | GEAR | QUMX | |||
| 49 | 004123-00 | 1 | KEY | QUMX | |||
| 52 | 135524-00 | 1 | BAFFLE,FAN | QUMX | |||
| 53 | N411028 | 1 | LEAD ASSY. | BLACK (120MM), 18GA | QUMX | ||
| 54 | N411026 | 1 | LEAD ASSY. | BLUE (110MM) | QUMX | ||
| 55 | N411027 | 1 | LEAD ASSY. | WHITE (125MM) | QUMX | ||
| 56 | N411029 | 1 | LEAD ASSY. | RED (140MM) | QUMX | ||
| 58 | 642925-01SV | 1 | ARMATURE | QUMX | |||
| 59 | 135526-00 | 1 | BRG MOUNT | QUMX | |||
| 61 | N419022 | 1 | FIELD CASE | QUMX | |||
| 65 | 135535-01 | 1 | COVER,GR.CASE | Incl. 103,115,116 | QUMX | ||
| 67 | 135581-00 | 2 | WASHER | QUMX | |||
| 68 | 135545-00SV | 1 | GEAR&PINION | QUMX | |
||
| 69 | 381711-00SV | 1 | FIELD | QUMX | |||
| 71 | 135567-01 | 1 | HANDLE | QUMX | |||
| 72 | N403550 | 1 | HANDLE SET | QUMX | |||
| 73 | 099229-01 | 1 | ROLLER | QUMX | |||
| 74 | 444518-98 | 1 | CORD | NPP 16-3S | ALSO ORDER 117 | QUMX | |
| 76 | 095957-03 | 1 | HANDLE | INCL 121,122 | QUMX | |
|
| 78 | 626839-00 | 1 | ID LABEL | QUMX | |||
| 79 | N385064 | 1 | WARNING LABEL | TRI-LINGUAL | QUMX | ||
| 80 | 627725-00 | 1 | CAUTION LABEL | QUMX | |||
| 81 | 616851-00 | 1 | LEAD BLUE | BLUE, 105MM | QUMX | |
|
| 100 | 383387-00 | 2 | BRUSH SPRING | QUMX | |||
| 102 | 045550-00 | 1 | SPRING | QUMX | |||
| 103 | 330004-02 | 2 | BEARING NEEDLE | QUMX | |
||
| 104 | 135513-00 | 1 | SCREW,SPECIAL | QUMX | |||
| 105 | 135515-00 | 1 | RING,RETAINING | QUMX | |||
| 106 | 135518-00 | 1 | KEY | QUMX | |||
| 107 | 135519-00 | 1 | PINION & SHAFT | QUMX | |||
| 108 | 135520-00 | 1 | SHIFT BAR | QUMX | |||
| 109 | 055112-00 | 1 | PIN | QUMX | |||
| 110 | N083671 | 1 | SHIFT KNOB | QUMX | |||
| 111 | 135531-00 | 1 | BEARING | QUMX | |
||
| 112 | 157376-00 | 1 | GR.CASE & BRGS. | QUMX | |||
| 113 | 135538-00 | 1 | CLUTCH | QUMX | |||
| 114 | 444748-00 | 1 | BEARING,BALL | QUMX | |||
| 115 | 330004-06 | 1 | BEARING NEEDLE | QUMX | |
||
| 116 | 701070-00 | 1 | PIN | QUMX | |||
| 117 | 88667-00 | 1 | TERMINAL | QUMX | |
||
| 118 | 445338-00 | 1 | CORD PROTECTOR | QUMX | |
||
| 119 | N467152 | 1 | CHUCK KEY | NPP | ONLY FOR UNITS THAT HAVE THE 5140204-44 CHUCK | QUMX | |
| 119 | 330034-16 | 1 | CHUCK KEY | QUMX | |
||
| 120 | 065288-01 | 1 | HOLDER CHUCK KEY | QUMX | |
||
| 121 | 088148-00 | 1 | GROMMET | QUMX | |
||
| 122 | 449881-00 | 1 | GRIP | QUMX | |
||
| 123 | N406339 | 1 | RATING LABEL | DW124 TYPE 3 | QUMX | ||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | QUMX | |
|
| 861 | 609691-01 | 1 | KIT BOX | NOT INCLUDED | QUMX |
