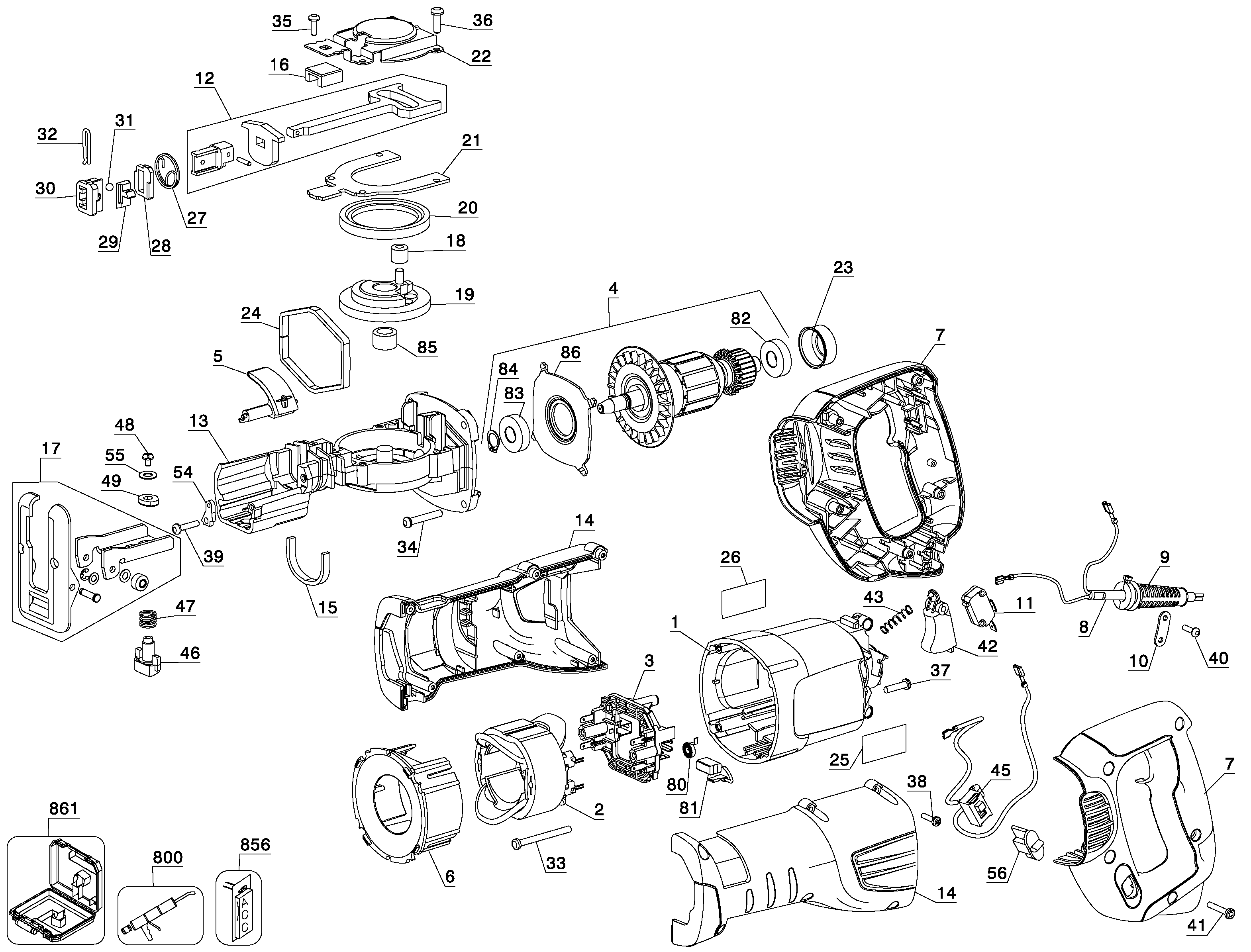

RS601K RECIPROCATING SAW Type 1 | Dibujos
Documentos
Listado de Piezas
Vea el menú desplegable pues algunos productos pueden tener varios dibujos
IMPRIMIR
Ver página completa
| ART. | Referencia | Cant. | Descrip. | Otra descrip. | Otra info. | Mercados | Estado |
|---|---|---|---|---|---|---|---|
| 1 | 606513-00 | 1 | FIELD CASE | QUMX |  |
||
| 2 | 448719-79KP | 1 | FIELD | QUMX | |||
| 3 | 383597-04 | 1 | BRUSH RING | QUMX |  |
||
| 4 | 615581-00 | 1 | ARMATURE & BRGS | QUMX | |||
| 5 | 627744-00 | 1 | LEVER SA | QUMX | |
||
| 6 | 606522-00 | 1 | BAFFLE FAN | QUMX | |
||
| 7 | 629626-04 | 1 | CLAMSHELL SET | QUMX | |||
| 8 | 330123-03 | 1 | CORD | 18-2SJT / 8FT | QUMX | |
|
| 9 | 629648-00 | 1 | CORD PROTECTOR | QUMX | |
||
| 10 | 329301-00 | 1 | CORD CLAMP | QUMX | |||
| 11 | 90534860 | 1 | MICRO SWITCH | QUMX | |||
| 12 | 606550-00S | 1 | SHAFT ASSEMBLY | QUMX | |
||
| 13 | 629631-01 | 1 | GEARCASE SA | QUMX | |
||
| 14 | 629627-02 | 1 | HOUSING & COVER | QUMX | |
||
| 15 | 609470-00 | 1 | FELT SEAL | QUMX | |
||
| 16 | N400905 | 1 | BEARING | QUMX | |
||
| 17 | 629628-00 | 1 | SHOE ASSEMBLY | QUMX | |
||
| 18 | 385238-00 | 1 | BEARING NEEDLE | QUMX | |
||
| 19 | 448503-16S | 1 | GEAR | Inc. 85 | QUMX | |
|
| 20 | 90540337 | 1 | RING | QUMX | |||
| 21 | 143462-02 | 1 | PLATE | QUMX | |
||
| 22 | 609312-00 | 1 | COVERPLATE | QUMX | |
||
| 23 | 137382-02 | 1 | SLEEVE | QUMX | |
||
| 24 | 609479-00 | 1 | FELT SEAL | QUMX | |
||
| 25 | 632061-00 | 1 | ID LABEL | QUMX | |
||
| 26 | 638270-00 | 1 | NAMEPLATE | RS601K | QUMX | ||
| 27 | 615628-00 | 1 | SPRING | QUMX | |
||
| 28 | 612863-00 | 1 | COLLAR | QUMX | |
||
| 29 | 606590-00 | 1 | SLIDER | QUMX | |
||
| 30 | 612805-00 | 1 | COLLAR | QUMX | |
||
| 31 | 000903-00 | 1 | BALL | QUMX | |||
| 32 | 613204-00 | 1 | PIN | QUMX | |
||
| 33 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | QUMX | |
|
| 34 | 330019-15 | 4 | SCREW | QUMX | |
||
| 35 | 158472-00 | 2 | SCREW | QUMX | |
||
| 36 | 616037-00 | 4 | SCREW | QUMX | |
||
| 37 | 330019-13 | 2 | SCREW | M4X19 T20 | QUMX | |
|
| 38 | 330019-03 | 6 | SCREW | QUMX | |||
| 39 | 330045-07 | 1 | SCREW | QUMX | |
||
| 40 | 562097-00 | 2 | SCREW | QUMX | |
||
| 41 | 330019-14 | 5 | SCREW | QUMX | |
||
| 42 | 629635-01 | 1 | ACTUATOR | QUMX | |
||
| 43 | 629647-00 | 1 | SPRING | COMPRESSION | QUMX | |
|
| 45 | 634650-00 | 1 | SWITCH,2-SPD. | QUMX | |||
| 46 | 629655-01 | 1 | BUTTON | QUMX | |
||
| 47 | 627741-00 | 1 | SPRING COMPRESSION | QUMX | |
||
| 48 | 330024-04 | 1 | SCREW | M4x0.7x6 | QUMX | |
|
| 49 | 627738-00 | 1 | LOCK PLATE | QUMX | |
||
| 54 | 627698-00 | 1 | BRACKET | LEVER SUPPORT | QUMX | |
|
| 55 | 098197-03 | 1 | WASHER LOCK | QUMX | |
||
| 56 | 629723-01 | 1 | ACTUATOR | QUMX | |||
| 80 | 383387-00 | 2 | BRUSH SPRING | QUMX | |||
| 81 | 384719-04 | 2 | BRUSH | QUMX | |
||
| 82 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | QUMX | |
|
| 83 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | QUMX | |
|
| 84 | 696060-00 | 1 | RETAINER | QUMX | |||
| 85 | 135531-00 | 1 | BEARING | QUMX | |
||
| 86 | 383476-00 | 1 | PLATE | QUMX | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | QUMX | |
|
| 856 | 610795-00SV | 1 | BLADE PACK | QUMX | |
||
| 861 | 612430-06 | 1 | KIT BOX | QUMX | |
