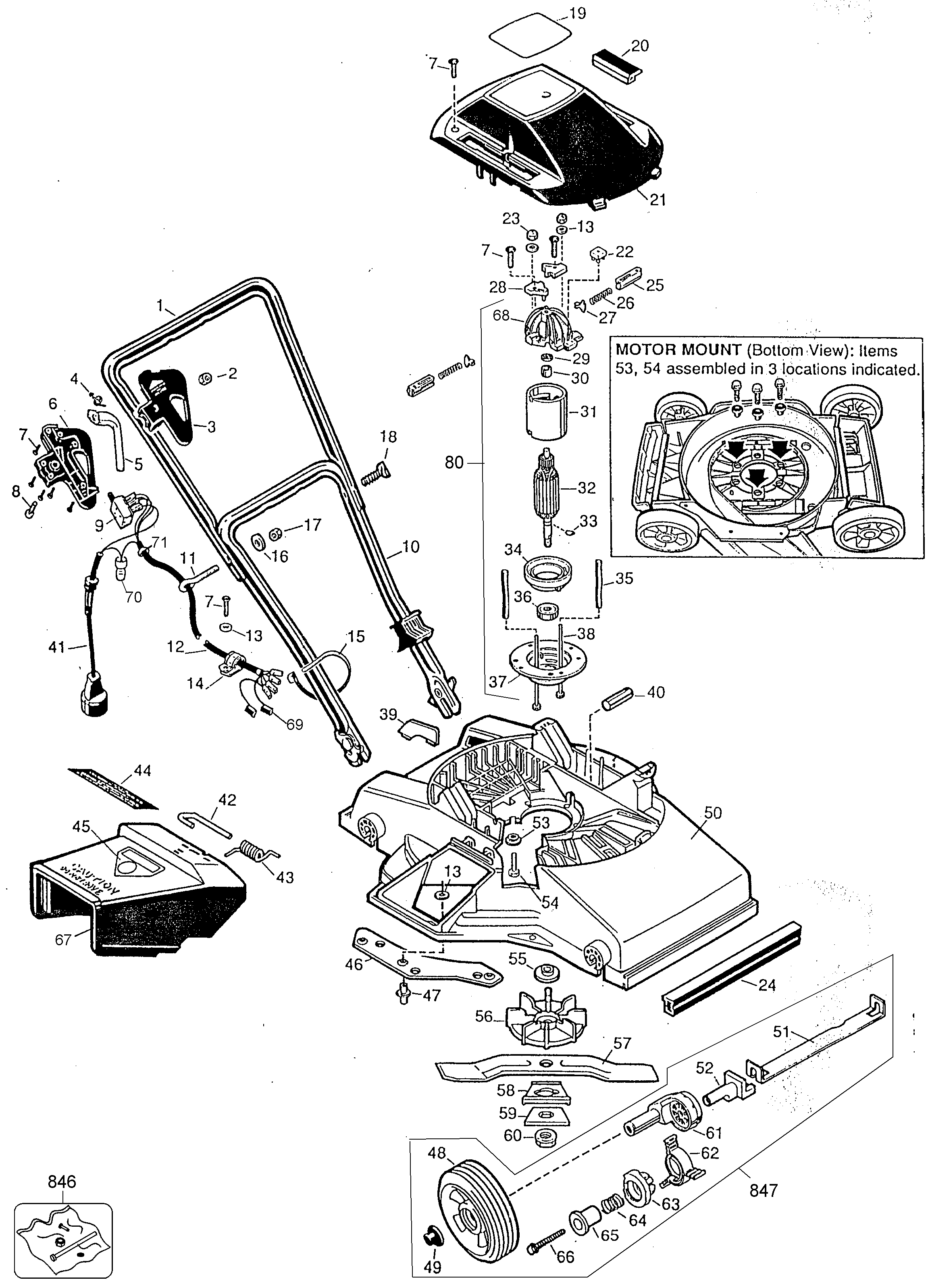

M2240 18 INCH MOWER Type 2 | Dibujos
Documentos
Listado de Piezas
Vea el menú desplegable pues algunos productos pueden tener varios dibujos
IMPRIMIR
Ver página completa
| ART. | Referencia | Cant. | Descrip. | Otra descrip. | Otra info. | Mercados | Estado |
|---|---|---|---|---|---|---|---|
| 1 | 242065-02 | 1 | HANDLE | QUMX |  |
||
| 2 | 038738-00 | 1 | NUT | 1/4-20 | QUMX | |
|
| 3 | 242756-00 | 1 | HOUSNG & COVER | QUMX | |||
| 4 | 681269-00 | 1 | SPRING | QUMX |  |
||
| 5 | 90508746 | 1 | SWITCH LEVER | QUMX | |||
| 6 | 242756-00 | 1 | HOUSNG & COVER | QUMX | |||
| 7 | 330019-13 | 10 | SCREW | M4X19 T20 | QUMX | |
|
| 8 | 99292-16 | 1 | SCREW | QUMX | |
||
| 9 | 681064-01 | 1 | SWITCH,P.BUTTON | QUMX | |
||
| 10 | 241976-08 | 1 | LOWER HANDLE | QUMX | |||
| 11 | 241948-00 | 1 | BOLT,EYE 1/4-28 | QUMX | |
||
| 12 | 241480-13 | 1 | CORD,MOTOR | QUMX | |
||
| 13 | 099361-10 | 6 | WASHER | QUMX | |
||
| 14 | 062443-02 | 1 | CLAMP | QUMX | |||
| 15 | 239715-06 | 1 | TIE | QUMX | |
||
| 16 | 38297-00 | 2 | WASHER LOCK | QUMX | |
||
| 17 | 090914-00 | 2 | WING NUT | QUMX | |
||
| 18 | 241947-00 | 1 | SCREW,CURVED HD | QUMX | |
||
| 19 | 263507-00 | 1 | LABEL,ID | QUMX | |||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | QUMX | |||
| 21 | 241530-01 | 1 | SHROUD | QUMX | |||
| 22 | 72256-03 | 1 | RECTIFIER | QUMX | |||
| 23 | 032699-00 | 2 | NUT | QUMX | |
||
| 24 | 241642-00 | 2 | BUMPER | QUMX | |||
| 25 | 242274-00 | 2 | INSERT | QUMX | |
||
| 26 | 242207-00 | 2 | BRUSH SPRING | QUMX | |
||
| 27 | 070162-00 | 2 | TERMINAL | QUMX | |
||
| 28 | 240808-01 | 2 | BRUSH CAP | QUMX | |
||
| 29 | 681886-00 | 1 | OILER | QUMX | |||
| 30 | 73093-00 | 1 | BEARING,SLEEVE | QUMX | |||
| 31 | 681086-02 | 1 | MAGNET | QUMX | |
||
| 32 | 598793-00 | 1 | MOTOR ASSEMBLY | 120V 6.5A | INC 33 | QUMX | |
| 33 | 137203-00 | 1 | RING | QUMX | |
||
| 34 | 681285-00 | 1 | INSULATOR | QUMX | |
||
| 35 | 60655-04 | 2 | SLEEVE | QUMX | |
||
| 36 | 070055-00 | 1 | BALL BEARING | QUMX | |
||
| 37 | 241590-07 | 1 | PLATE | QUMX | |
||
| 38 | 681298-00 | 2 | SCREW | QUMX | |
||
| 39 | 241540-01 | 1 | PLUG,DECK | QUMX | |||
| 40 | 241578-00 | 2 | PIN | QUMX | |||
| 41 | 242266-00 | 1 | CORD,POWER | QUMX | |
||
| 42 | 241979-00 | 1 | PIN | QUMX | |||
| 43 | 241623-00 | 1 | SPRING | QUMX | |||
| 44 | 264403-00 | 1 | LABEL,WARNING | QUMX | |||
| 45 | 272593-00 | 1 | LABEL,CAUTION | QUMX | |
||
| 46 | 241726-00 | 1 | PLATE | QUMX | |||
| 47 | 241875-00 | 3 | RIVET | QUMX | |||
| 48 | 241159-01 | 4 | WHEEL | 7-INCH | QUMX | ||
| 49 | 56618-06 | 4 | CAP | QUMX | |
||
| 50 | 241998-30 | 1 | CUTTER DECK | INC 13, 40, 46, 47 | QUMX | ||
| 51 | 000000-00 | 1 | NO LONGER AVAILABLE | QUMX | |||
| 52 | 000000-00 | 1 | NO LONGER AVAILABLE | QUMX | |||
| 53 | 241594-02 | 3 | SPACER | QUMX | |
||
| 54 | 243679-00 | 3 | SCREW | QUMX | |
||
| 55 | 680812-00 | 1 | SPACER | QUMX | |
||
| 56 | 241125-00 | 1 | FAN | QUMX | |
||
| 57 | 242059-00 | 1 | BLADE | QUMX | |
||
| 58 | 241381-01 | 1 | INSULATOR | QUMX | |
||
| 59 | 092715-00 | 1 | CARRIER | QUMX | |
||
| 60 | 90561895 | 1 | NUT | 1/2-20 | QUMX | ||
| 61 | 242868-00 | 1 | KIT,HGHT.ADJUST | QUMX | |
||
| 62 | 241664-00 | 4 | CAM | NLS | QUMX | ||
| 63 | 241665-00 | 4 | LOCK,CAM | NLS | QUMX | ||
| 64 | 241666-00 | 4 | SPRING | NO LONGER AVAILABLE | QUMX | ||
| 65 | 242017-01 | 1 | BUSHING | QUMX | |||
| 66 | 000000-00 | 1 | NO LONGER AVAILABLE | QUMX | |||
| 67 | 241527-00 | 1 | CHUTE | QUMX | |||
| 68 | 680476-07 | 1 | SPARE PART | INC 29, 30 | QUMX | |
|
| 69 | 242273-00 | 2 | BRUSH,SHUNTED | QUMX | |||
| 70 | 33314-00 | 2 | CONNECTOR | QUMX | |
||
| 71 | 69181-02 | 1 | RELIEF | QUMX | |
||
| 80 | 598793-00 | 1 | MOTOR ASSEMBLY | 120V 6.5A | QUMX | ||
| 846 | 241691-13 | 1 | BAG,HARDWARE | INC 15-19 | QUMX | ||
| 847 | 242868-00 | 1 | KIT,HGHT.ADJUST | QUMX | |
