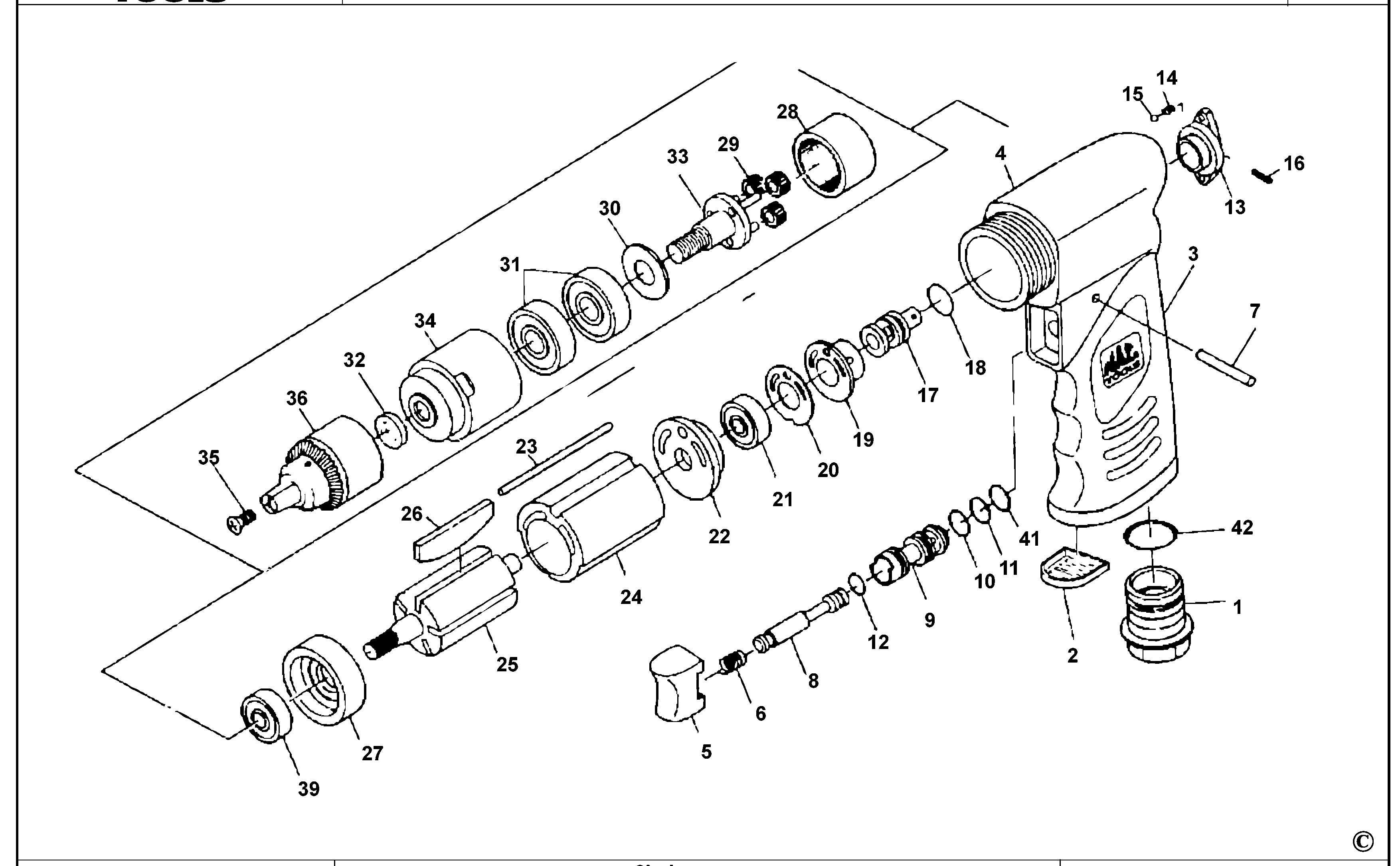

AD900 AIR DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AD901-01 | 1 | BUSHING | GB |  |
||
| 2 | AW435-41 | 1 | DEFLECTOR | GB | |||
| 3 | AD901-03 | 1 | COVER | GB | |
||
| 4 | AD901-04 | 1 | HOUSING | GB | |
||
| 5 | AD527-25 | 1 | TRIGGER | GB | |
||
| 6 | AD901-06 | 1 | SPRING | GB | |
||
| 7 | AN213-03 | 1 | PIN | GB | |
||
| 8 | AD901-08 | 1 | SHAFT | GB | |
||
| 9 | AD901-09 | 1 | BUSHING | GB | |
||
| 10 | AW156TR-51 | 1 | O RING | GB | |||
| 11 | AW148TR-39 | 1 | O RING | GB | |
||
| 12 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 13 | AD901-13 | 1 | KNOB | GB | |
||
| 14 | AW226-06 | 1 | SPRING | GB | |
||
| 15 | AW148TR-27 | 1 | BALL STEEL | GB | |||
| 16 | AD901-16 | 1 | PIN | GB | |
||
| 17 | AD901-17 | 1 | VALVE | GB | |
||
| 18 | AD901-18 | 1 | O RING | GB | |
||
| 19 | AD901-19 | 1 | CASE | GB | |
||
| 20 | AD901-20 | 1 | GASKET | GB | |
||
| 21 | AR133-11 | 1 | BEARING | GB | |||
| 22 | AD901-22 | 1 | PLATE | GB | |
||
| 23 | AD901-23 | 1 | PIN | GB | |
||
| 24 | AD901-24 | 1 | CYLINDER | GB | |
||
| 25 | AD901-25 | 1 | ROTOR | GB | |
||
| 26 | AG70-20 | 1 | BLADE | GB | |||
| 27 | AD901-27 | 1 | PLATE | GB | |
||
| 28 | AD901-28 | 1 | GEAR | GB | |
||
| 29 | AD901-29 | 1 | GEAR | GB | |
||
| 30 | AD527-06 | 1 | SPACER | GB | |
||
| 31 | AD527-04 | 1 | BEARING,BALL | GB | |
||
| 32 | AD527-05 | 1 | SPACER | GB | |
||
| 33 | AD901-33 | 1 | CARRIER | GB | |
||
| 34 | AD901-34 | 1 | RING | GB | |
||
| 35 | AD901-35 | 1 | SCREW | GB | |
||
| 36 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 37 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 38 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 39 | ADG200-20 | 1 | BEARING PLATE | GB | |
||
| 41 | AW375-17 | 1 | O RING | GB | |
||
| 42 | 000000-00 | 1 | NO LONGER AVAILABLE | GB |
