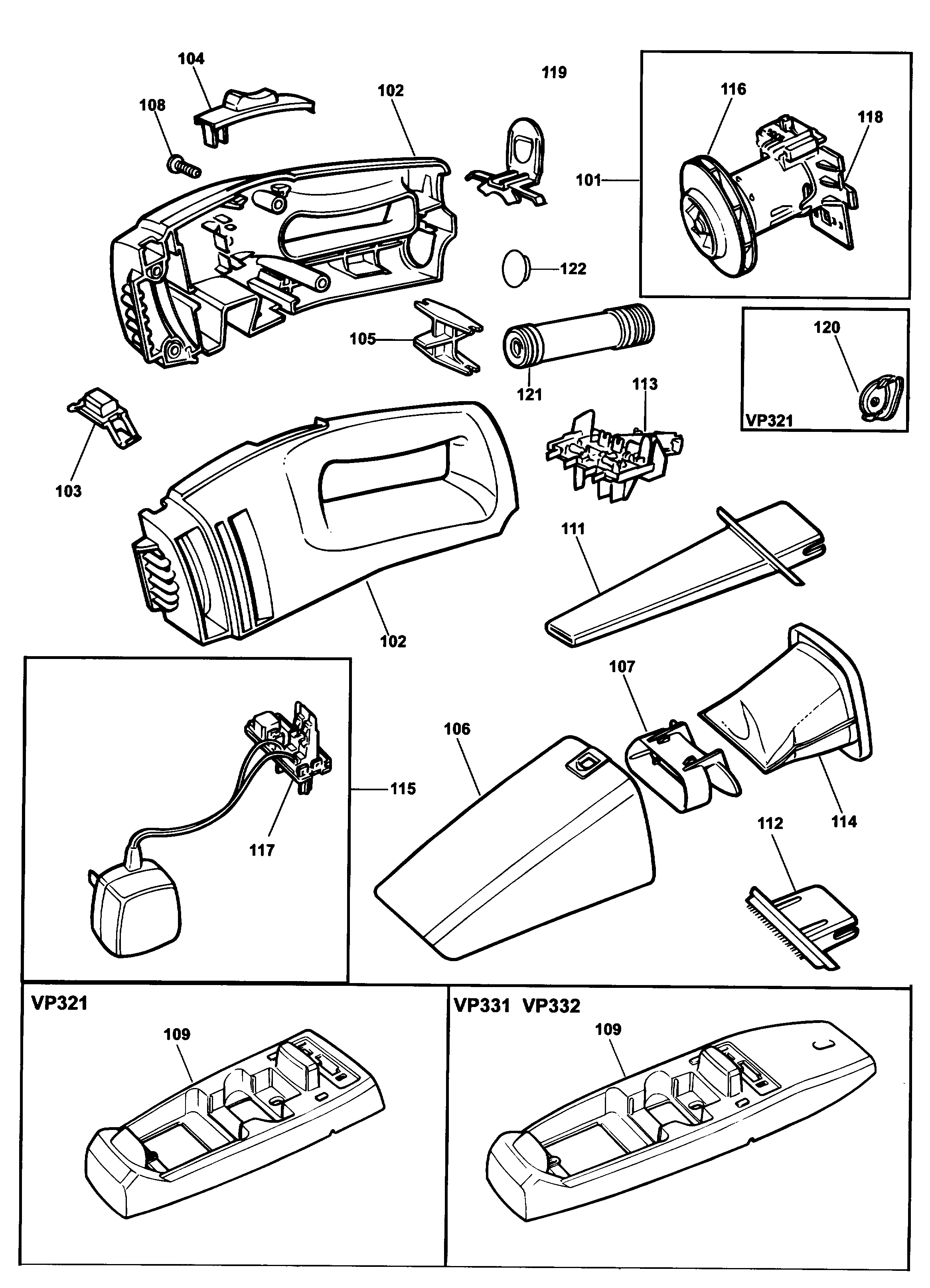

VP332 DUSTBUSTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 808591-02 | 1 | MOTOR SA | VP303 | XD |  |
|
| 101 | 808591-02 | 1 | MOTOR SA | VP331 (TYPE 2) | XD | |
|
| 101 | 808591-02 | 1 | MOTOR SA | VP332 | XD | |
|
| 101 | 808591-01 | 1 | MOTOR SA | VP321 | XD | |
|
| 102 | 808570-11 | 1 | CLAMSHELL | XD | |
||
| 103 | 369668-01 | 1 | LATCH | XD | |
||
| 104 | 808573-02 | 1 | ACTUATOR | VP331 (TYPE 1) | XD | |
|
| 104 | 808573-01 | 1 | ACTUATOR | VP321 | XD | |
|
| 104 | 808573-01 | 1 | ACTUATOR | VP331 (TYPE 2) | XD | |
|
| 104 | 808573-01 | 1 | ACTUATOR | VP303 | XD | |
|
| 105 | 369669 | 1 | GUIDE | XD | |
||
| 106 | 808698-06 | 1 | BOWL | VP331 | XD | |
|
| 106 | 808698-06 | 1 | BOWL | VP303 | XD | |
|
| 106 | 796781 | 1 | BOWL | VP321 | XD | |
|
| 107 | 172330-00 | 1 | DEFLECTOR | XD | |
||
| 108 | 733886 | 5 | SCREW | XD | |
||
| 109 | 808575 | 1 | BASE | VP321 | XD | |
|
| 109 | 808576 | 1 | BASE | VP331 | XD | |
|
| 109 | 808576 | 1 | BASE | VP303 | XD | |
|
| 111 | 796754-06 | 1 | TOOL CREVICE | VP332 | XD | |
|
| 111 | 171745-10 | 1 | TOOL CREVICE | VP321 | XD | |
|
| 111 | 171745-10 | 1 | TOOL CREVICE | VP303 | XD | |
|
| 111 | 171745-10 | 1 | TOOL CREVICE | VP331 | XD | |
|
| 112 | 796785-06 | 1 | BRUSH | VP332 | XD | |
|
| 112 | 798785-02 | 1 | BRUSH | VP321 | XD | |
|
| 112 | 798785-02 | 1 | BRUSH | VP331 | XD | |
|
| 112 | 798785-02 | 1 | BRUSH | VP303 | XD | |
|
| 112 | 798785-02 | 1 | BRUSH | XD | |
||
| 113 | 808577-03 | 1 | CONTACT SA | VP331 (TYPE 2) | XD | |
|
| 113 | 808577-03 | 1 | CONTACT SA | VP303 | XD | |
|
| 113 | 808577-03 | 1 | CONTACT SA | VP331 (TYPE 1) | XD | |
|
| 113 | 808577-01 | 1 | CONTACT SA | VP321 | XD | |
|
| 114 | 798530-00 | 1 | FILTER | XD | |
||
| 115 | 808608-09 | 1 | CHARGER SA | VP303 | XD | |
|
| 115 | 808608-03 | 1 | CHARGER | XD | |
||
| 116 | 499887-00 | 1 | FAN | XD | |
||
| 117 | 807918-06 | 1 | CONTACT SA | XD | |
||
| 118 | 808583-01 | 1 | SWITCH SA | VP321 | XD | |
|
| 118 | 808583-03 | 1 | SWITCH | VP331 (TYPE 1) | XD | |
|
| 118 | 808583-02 | 1 | SWITCH SA | VP332 | XD | |
|
| 118 | 808583-02 | 1 | SWITCH SA | VP331 (TYPE 2) | XD | |
|
| 118 | 808583-02 | 1 | SWITCH SA | VP303 | XD | |
|
| 119 | 808574-01 | 1 | LOCK BUTTON | XD | |
||
| 120 | 808581-04 | 1 | BLANK | VP321 | XD | |
|
| 121 | 151995-02 | 1 | BATTERY PACK | VP100-XJ | VP303 | XD | |
| 121 | 151995-02 | 1 | BATTERY PACK | VP100-XJ | VP331 (TYPE 2) | XD | |
| 121 | 151995-02 | 1 | BATTERY PACK | VP100-XJ | VP332 | XD | |
| 121 | 151995-02 | 1 | BATTERY PACK | VP100-XJ | VP321 | XD | |
| 121 | 567801-00 | 1 | Battery | VP331 (TYPE 1) | XD | |
