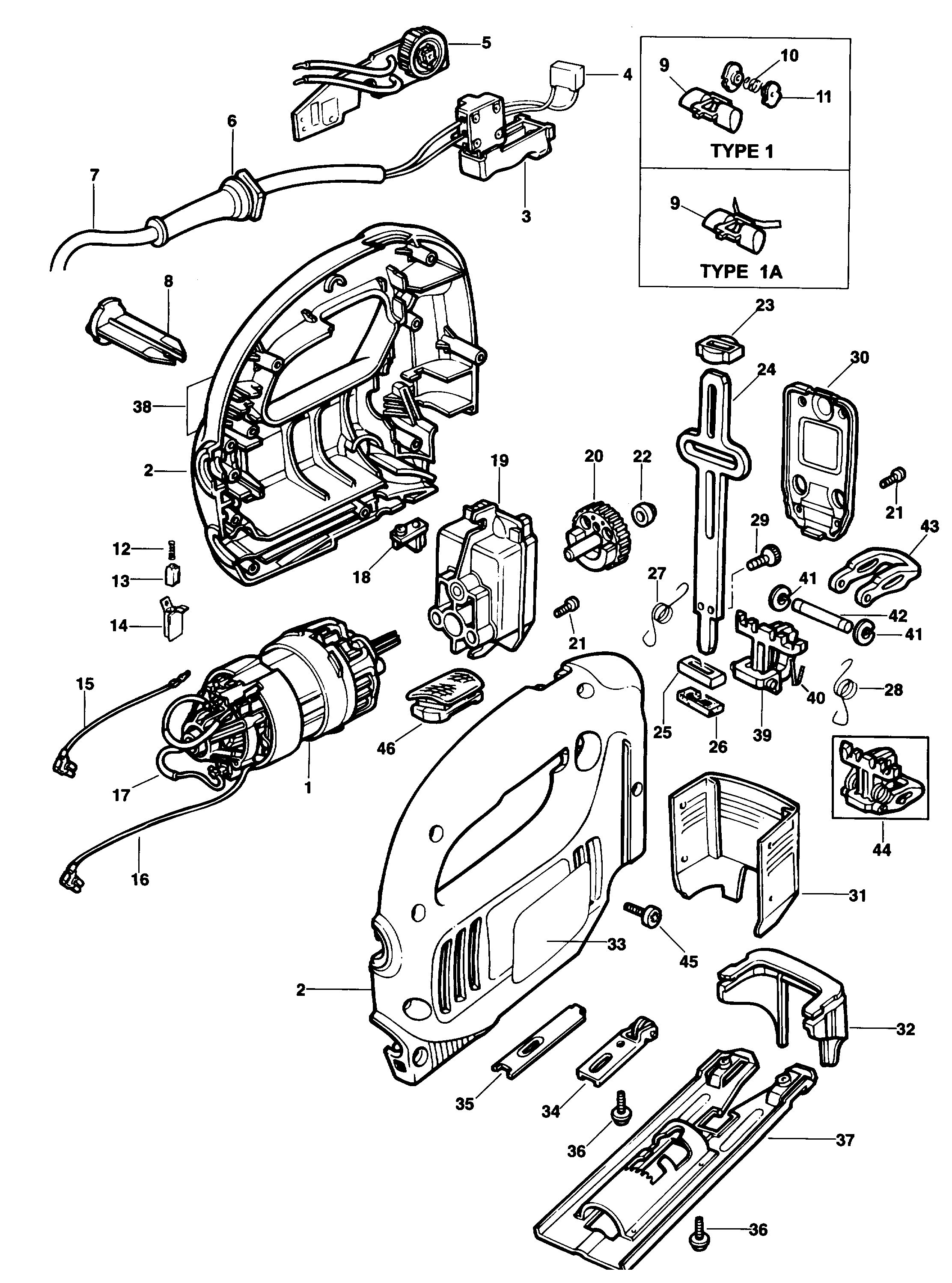

KS631 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | 571299-17 | 1 | MOTOR SA | A9 | ||||
| 1 | 576376-03 | 1 | MOTOR SA | XK | A9 | |||
| 2 | 580151-01 | 1 | CLAMSHELL SET | KS633E | A9 | |||
| 2 | 580151-00 | 1 | CLAMSHELL SET | KS631 | A9 | |||
| 3 | 809483-01 | 1 | SWITCH | A9 | ||||
| 4 | 807285-06 | 1 | CAPACITOR | KS631 | A9 | |||
| 5 | 368329-03 | 1 | PCB SA | KS633E | A9 | |||
| 6 | 770235 | 1 | PROTECTOR | A9 | ||||
| 7 | 372067-01 | 1 | CORDSET | A9 | ||||
| 7 | 330080-03 | 1 | CORDSET | XK | A9 | |||
| 8 | 369328 | 1 | REGULATOR | A9 | ||||
| 9 | 370282-00 | 1 | LOCK SA | TYPE 1 | A9 | |||
| 10 | 748158 | 1 | SPRING | A9 | ||||
| 11 | 370966 | 2 | WASHER | A9 | ||||
| 12 | 847709 | 2 | SPRING | A9 | ||||
| 13 | 372523 | 2 | BRUSH | A9 | ||||
| 14 | 846076 | 2 | BRUSHBOX | A9 | ||||
| 15 | 811504 | 1 | LEAD | KS631 | A9 | |||
| 15 | 811679 | 1 | LEAD | KS633E | A9 | |||
| 16 | 811666 | 1 | LEAD | KS633E | A9 | |||
| 16 | 811529 | 1 | LEAD SA | KS631 | A9 | |||
| 17 | 828446 | 1 | CHOKE SA | XK | A9 | |||
| 18 | 369620 | 1 | NUT | A9 | ||||
| 19 | 368564 | 1 | GEARCASE | A9 | ||||
| 20 | 368562 | 1 | GEAR | A9 | ||||
| 21 | 812171 | 6 | SCREW | A9 | ||||
| 22 | 492994-00 | 1 | ROLLER | A9 | ||||
| 23 | 810897 | 1 | BEARING | A9 | ||||
| 24 | 370164-03 | 1 | SHAFT | A9 | ||||
| 25 | 810893 | 1 | BEARING | A9 | ||||
| 26 | 847216 | 1 | SEAL | A9 | ||||
| 27 | 371951 | 1 | SPRING RH | A9 | ||||
| 28 | 371950 | 1 | SPRING LH | A9 | ||||
| 29 | 370167 | 2 | SCREW | A9 | ||||
| 30 | 368587 | 1 | COVER | A9 | ||||
| 31 | 369008 | 1 | GUARD | A9 | ||||
| 32 | 370584 | 1 | GUARD | A9 | ||||
| 33 | 369002-04 | 1 | BRAND LABEL | KS633E | A9 | |||
| 33 | 369002-06 | 1 | BRAND LABEL | KS631 AU-NZ ONLY | A9 | |||
| 33 | 369002-02 | 1 | BRAND LABEL | KS631 | A9 | |||
| 33 | 369002-07 | 1 | BRAND LABEL | KS633E AU-NZ ONLY | A9 | |||
| 34 | 368375-01 | 1 | SUPPORT SA | A9 | ||||
| 35 | 368857-00 | 1 | CLAMP | A9 | ||||
| 36 | 376409 | 2 | SCREW | A9 | ||||
| 37 | 369304-00 | 1 | SHOE SA | A9 | ||||
| 39 | 581096-00 | 1 | CLAMP | A9 | ||||
| 40 | 370169 | 1 | PLATE | A9 | ||||
| 41 | 370170 | 2 | CIRCLIP | A9 | ||||
| 42 | 571131-00 | 1 | PARTS PACK(KIT) | A9 | ||||
| 43 | 370168-01 | 1 | ACTUATOR | A9 | ||||
| 44 | 581098-02 | 1 | CLAMP SA | A9 | ||||
| 45 | 747329 | 8 | SCREW | A9 |
