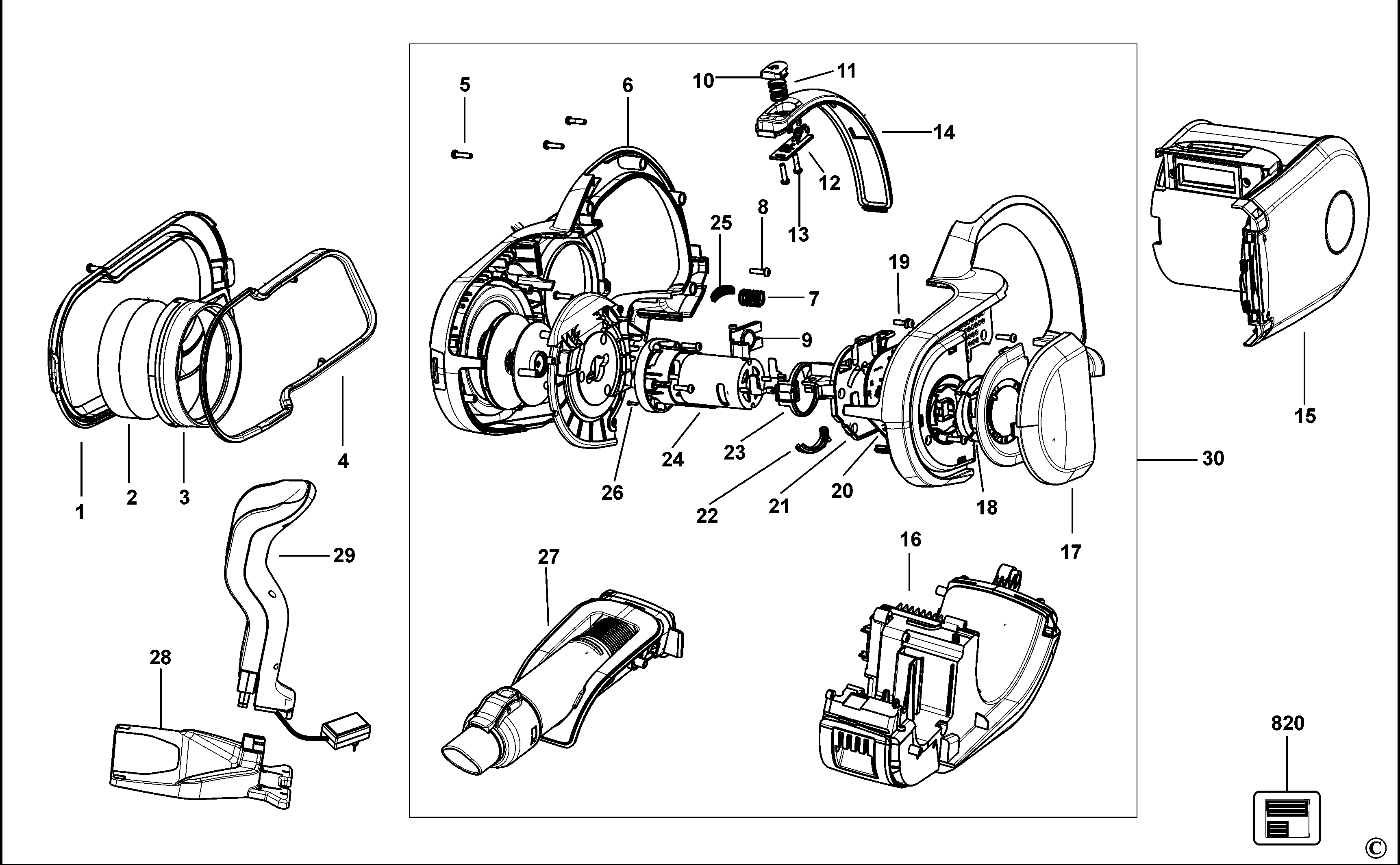

CS3250BLL DUSTBUSTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90610940 | 1 | COVER | KR | |||
| 2 | 90607901 | 2 | FOAM | KR | |||
| 3 | 90596689 | 1 | FRAME | KR | |||
| 4 | 90606003 | 1 | SEAL | KR | |||
| 5 | 143062-02 | 40 | SCREW | KR | |||
| 6 | 90610336-03 | 1 | HOUSING SA | KR | |||
| 7 | 90604593 | 1 | SPRING | KR | |||
| 8 | 499903-00 | 13 | SCREW | KR | |||
| 9 | 90605510 | 1 | BIT | KR | |||
| 10 | 90593719 | 1 | BUTTON | KR | |||
| 11 | 90597744 | 1 | SPRING | KR | |||
| 12 | 90595818 | 1 | PCB SA | KR | |||
| 13 | 419799-05 | 2 | SCREW | KR | |||
| 14 | 90594171-01 | 1 | COVER | KR | |||
| 15 | 90597329-01 | 1 | BOWL | KR | |||
| 16 | 90605622-08 | 1 | BATTERY PACK | KR | |||
| 17 | 90594170 | 1 | MOTOR COVER | KR | |||
| 18 | 90601773 | 1 | LENS | KR | |||
| 19 | 90609722 | 1 | SCREW | KR | |||
| 20 | 90599455-01 | 1 | PCB SA | KR | |||
| 21 | 90601612 | 1 | CARRIER | KR | |||
| 22 | 90616027 | 1 | INSULATOR | KR | |||
| 23 | 90603382 | 1 | CAP | KR | |||
| 24 | 90607900-02 | 1 | MOTOR & FAN | KR | |||
| 25 | 90611150 | 1 | EXHAUST | KR | |||
| 26 | 311940-01 | 2 | SCREW | KR | |||
| 27 | 90599658 | 1 | HOSE SA | KR | |||
| 28 | 90610875-01 | 1 | BASE SA | KR | |||
| 29 | 90613140-07 | 1 | CHARGER SA | KR | |||
| 30 | 90608472-10 | 1 | BODY | KR | |||
| 33 | 90600901-04 | 1 | BRUSH | KR | |||
| 34 | 90552231-07 | 1 | TOOL CREVICE | KR | |||
| 36 | 90600824-02 | 1 | PET HEAD | KR | |||
| 37 | 90602833-01 | 1 | HOLDER | KR | |||
| 39 | 90604088 | 1 | NOZZLE | KR | |||
| 40 | 90610845-01 | 1 | HOUSING UPPER | KR | |||
| 41 | 90604520-03 | 1 | TERMINAL BLOCK | KR | |||
| 42 | 90610948-02 | 1 | HANDLE UPPER | KR | |||
| 43 | 90608240 | 3 | SPRING | KR | |||
| 44 | 90603264 | 1 | BUTTON | KR | |||
| 45 | 90603263 | 1 | BUTTON | KR | |||
| 46 | 90603262-02 | 1 | INSERT | KR | |||
| 47 | 90599456 | 1 | LEAD SWITCH SA | KR | |||
| 48 | 90610041 | 1 | CLAMP | KR | |||
| 50 | 90610848-01 | 1 | LOWER HANDLE | KR | |||
| 51 | 90610949-01 | 1 | LATCH | KR | |||
| 52 | 90599290 | 1 | CONNECTOR | KR | |||
| 53 | 90605266 | 1 | SPRING | KR | |||
| 54 | 90598009 | 1 | LATCH | KR | |||
| 55 | 90610846-03 | 1 | HOUSING LOWER | KR | |||
| 56 | 90601722 | 1 | SCREW | KR | |||
| 57 | 90602729 | 1 | CONTACT | KR | |||
| 58 | 90610859 | 5 | SCREW | KR | |||
| 59 | 90605821 | 1 | CABLE SA | KR | |||
| 60 | 90611233 | 2 | PLATE | KR | |||
| 61 | 90611151 | 1 | EXHAUST | KR | |||
| 62 | 90605566 | 2 | SPRING | KR | |||
| 63 | 90605268 | 1 | CONTACT | KR | |||
| 64 | 90606916 | 1 | CABLE SA | KR | |||
| 102 | 90605480 | 2 | WHEEL | KR | |||
| 103 | 90608269 | 2 | DOWEL | KR | |||
| 104 | 90608273 | 1 | GASKET | KR | |||
| 105 | 90608271-01 | 1 | BRUSH | KR | |||
| 106 | 90592084-01 | 1 | HOUSING LOWER | KR | |||
| 107 | 90599806-01 | 1 | BUMPER | KR | |||
| 108 | 90608509-02 | 1 | MOTOR SA & MOUNT | KR | |||
| 109 | 90599805 | 1 | GRILL | KR | |||
| 110 | 90592088-02 | 1 | COVER | KR | |||
| 111 | 90610341-02 | 1 | HOUSING UPPER | KR | |||
| 112 | 90600096 | 1 | COVER | KR | |||
| 113 | 90591926-02 | 1 | COVER | KR | |||
| 114 | 90608242-01 | 1 | AXLE | KR | |||
| 115 | 90591872-02 | 1 | CAP | KR | |||
| 116 | 90608241 | 2 | SCREW | KR | |||
| 117 | 90592463-02 | 1 | PANEL FRONT | KR | |||
| 118 | 90505371 | 2 | SCREW | M3 x 10mm | KR | ||
| 120 | 90608508 | 1 | ACTUATOR | KR | |||
| 121 | 90619439 | 1 | RUBBER | KR | |||
| 122 | 90606050-01 | 1 | CLIP | KR | |||
| 123 | 90612168-01 | 3 | SCREW | KR | |||
| 124 | 90592464-02 | 1 | BACKPLATE | KR | |||
| 125 | 90608567 | 1 | DUCT | KR | |||
| 126 | 90608172 | 1 | SPRING | KR | |||
| 127 | 90600500 | 1 | CAP | KR | |||
| 128 | 598450-00 | 2 | SCREW | KR | |||
| 129 | 90608727 | 1 | BAR SA | KR | |||
| 130 | 90600094 | 1 | LATCH | KR | |||
| 132 | 90608238 | 1 | SPRING | KR | |||
| 133 | 90605477 | 1 | END CAP | KR | |||
| 134 | 90605481 | 2 | WHEEL LARGE | KR | |||
| 135 | 90608270 | 2 | DOWEL | KR | |||
| 820 | 90634753 | 1 | RATING LABEL | KR | |||
| 821 | 90634754 | 1 | RATING LABEL | KR |
