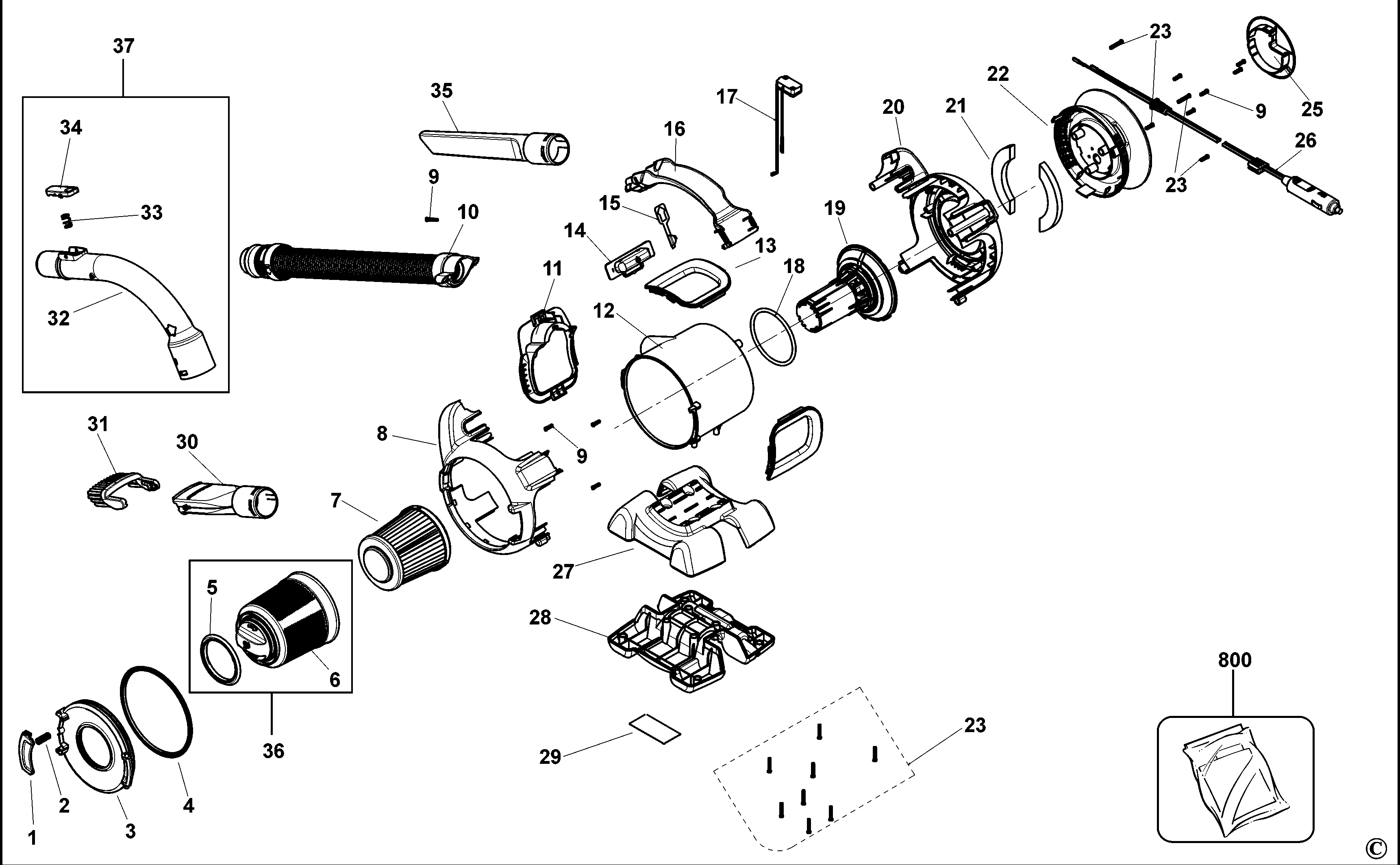

PAD1200 CAR VACUUM Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90542157 | 1 | DOOR | TW | |||
| 2 | 90529371 | 1 | SPRING | TW | |||
| 3 | 90548919-02 | 1 | DOOR | TW | |||
| 4 | 90542195 | 1 | SEAL | TW | |||
| 5 | 90542151 | 1 | SEAL | TW | |||
| 6 | 90542155 | 1 | PRE-FILTER | TW | |||
| 7 | 90529367 | 1 | FILTER | Pleated | TW | ||
| 8 | 90542141-01 | 1 | COVER HOUSING | TW | |||
| 9 | 143062-02 | 7 | SCREW | TW | |||
| 10 | 90529372-05 | 1 | HOSE SA | TW | |||
| 11 | 90542142-08 | 1 | BEZEL | TW | |||
| 12 | 90542144 | 1 | BOWL | TW | |||
| 13 | 90542143-03 | 2 | BEZEL | TW | |||
| 14 | 90542150 | 1 | ACTUATOR | TW | |||
| 15 | 90529376 | 1 | STOP | TW | |||
| 16 | 90542139-01 | 1 | HOUSING HANDLE | TW | |||
| 17 | 90542187 | 1 | SWITCH SA | TW | |||
| 18 | 90529378 | 1 | SEAL | TW | |||
| 19 | 90543767 | 1 | MOTOR & FAN | TW | |||
| 20 | 90542140-01 | 1 | HOUSING LOWER | TW | |||
| 21 | 90542188 | 2 | FILTER | TW | |||
| 22 | 90542178 | 1 | HOUSING | TW | |||
| 23 | 499903-00 | 12 | SCREW | TW | |||
| 25 | 90542179 | 1 | COVER | TW | |||
| 26 | 90542200 | 1 | CABLE & PLUG | TW | |||
| 27 | 90548916 | 1 | HOUSING UPPER | TW | |||
| 28 | 90542181 | 1 | HOUSING LOWER | TW | |||
| 29 | 90545222 | 1 | RATING LABEL | TW | |||
| 30 | 90529365-01 | 1 | BRUSH SA | TW | |||
| 31 | 90529366-01 | 1 | BRUSH SA | TW | |||
| 32 | N496247 | 1 | HOSE SA | TW | |||
| 33 | 90529369 | 1 | SPRING | TW | |||
| 34 | 90542154 | 1 | CLIP | TW | |||
| 35 | N496248 | 1 | TOOL CREVICE | TW | |||
| 36 | 90543784 | 1 | FILTER DRY | TW | |||
| 37 | 90543785 | 1 | HANDLE SA | TW | |||
| 800 | 90547353 | 1 | BAG | TW |
