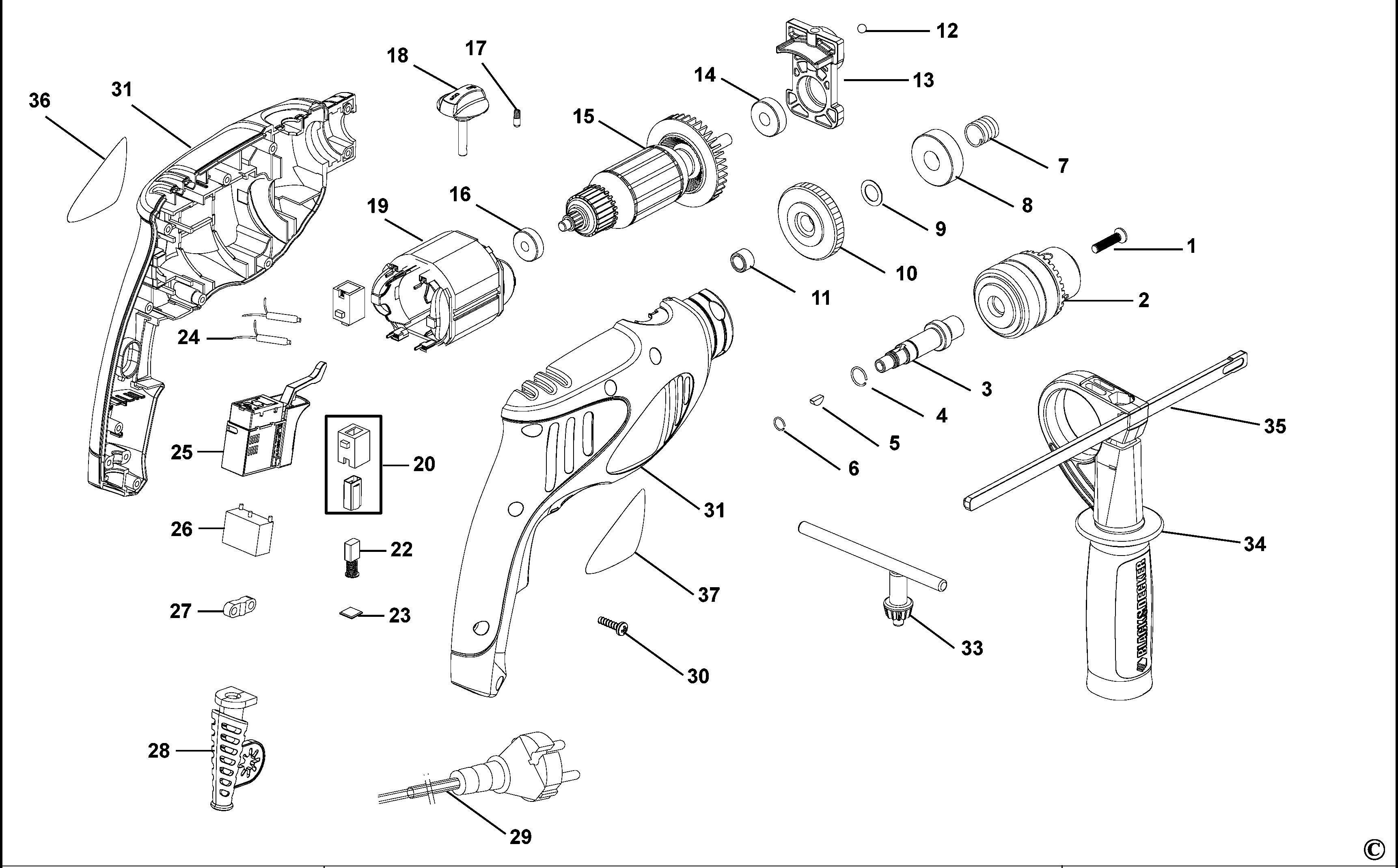

CD50 DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004021-00 | 1 | SCREW | A9 | |||
| 2 | 1004022-00 | 1 | CHUCK | 10MM 3/8" | A9 | ||
| 3 | 1004023-00 | 1 | SHAFT | A9 | |||
| 4 | 1004024-00 | 1 | CIRCLIP | A9 | |||
| 5 | 1004025-00 | 1 | KEY | A9 | |||
| 6 | 1004026-00 | 1 | CIRCLIP | A9 | |||
| 7 | 1004027-00 | 1 | SPRING | A9 | |||
| 8 | 1004028-00 | 1 | BEARING 6201 | A9 | |||
| 9 | 1004029-00 | 1 | WASHER | A9 | |||
| 10 | 1004030-00 | 1 | GEAR | A9 | |||
| 11 | 1004031-00 | 1 | COVER | A9 | |||
| 12 | 1004032-00 | 1 | BALL STEEL | A9 | |||
| 13 | 1004033-00 | 1 | SUPPORT | A9 | |||
| 14 | 1004034-00 | 1 | BEARING 608 | A9 | |||
| 15 | 1004278-00 | 1 | ARMATURE 220/240V | A9 | |||
| 16 | 1004036-00 | 1 | BEARING | 625 | A9 | ||
| 17 | 1004037-00 | 1 | LOCKING KNOB | A9 | |||
| 18 | 1004038-00 | 1 | KNOB SA | A9 | |||
| 19 | 1004280-00 | 1 | STATOR 220V | A9 | |||
| 20 | 1004040-00 | 2 | BRUSH HOLDER SA | A9 | |||
| 22 | 1004282-00 | 2 | BRUSH | A9 | |||
| 23 | 1004043-00 | 2 | BRUSH CAP | A9 | |||
| 24 | 1004283-00 | 2 | INDUCTOR | A9 | |||
| 25 | 1004285-00 | 1 | SWITCH | 6A | A9 | ||
| 26 | 1004046-00 | 1 | CAPACITOR | A9 | |||
| 27 | 1004047-00 | 1 | CABLE CLAMP | A9 | |||
| 28 | 1004048-00 | 1 | CORD PROTECTOR | A9 | |||
| 29 | 1004289-00 | 1 | CORDSET | A9 | |||
| 30 | 1004050-00 | 1 | SCREW | ST4 x 16mm | A9 | ||
| 31 | 1004292-00 | 1 | CLAMSHELL | A9 | |||
| 33 | 1004052-00 | 1 | CHUCK KEY | A9 | |||
| 34 | 1004053-00 | 1 | SIDE HANDLE | A9 | |||
| 35 | 1004054-00 | 1 | DEPTH STOP | A9 | |||
| 36 | 1004293-00 | 1 | BRAND LABEL | A9 | |||
| 37 | 1004294-00 | 1 | RATING PLATE | A9 |
