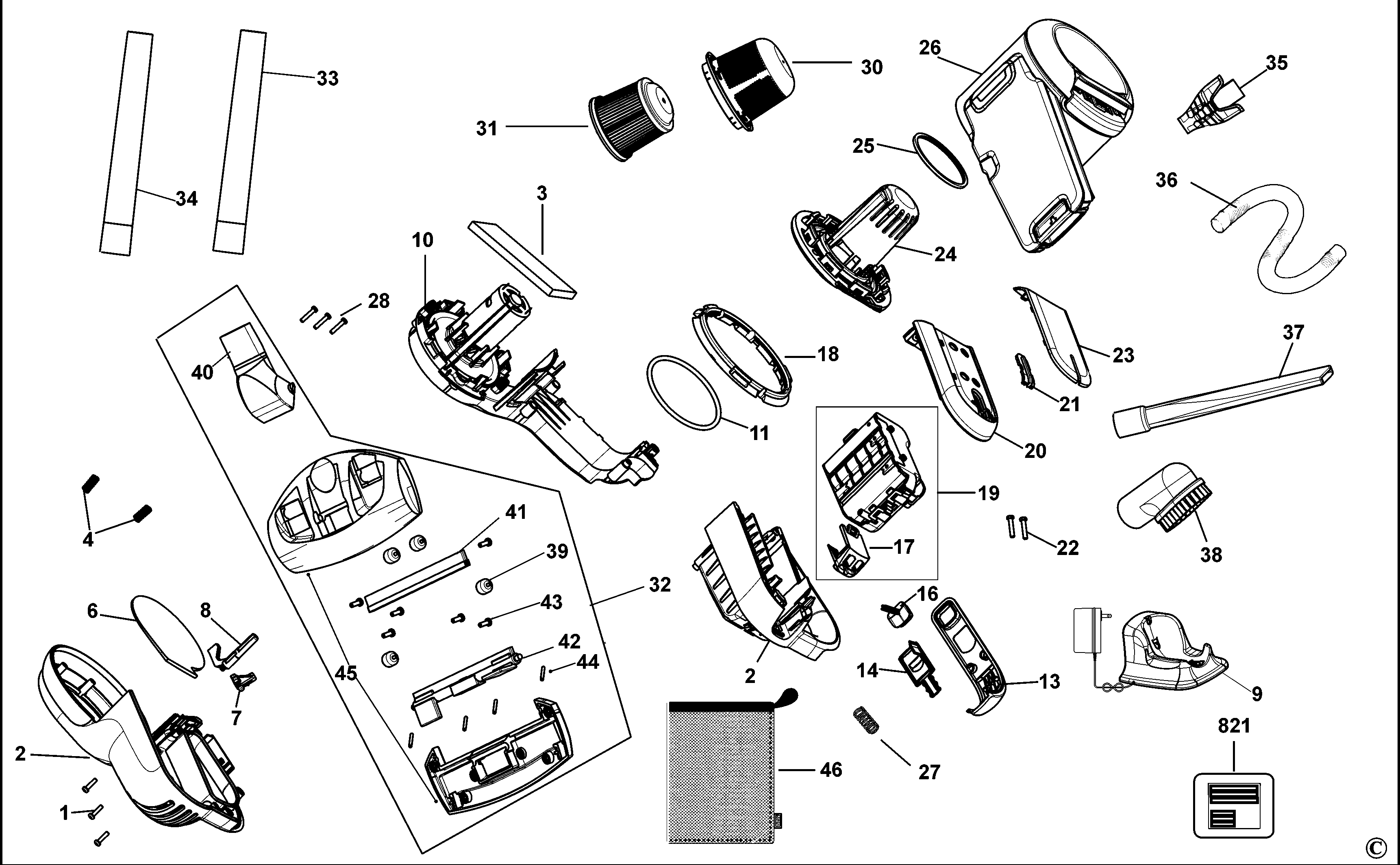

BDH1020CAC DUSTBUSTER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 143062-02 | 11 | SCREW | JP | |||
| 2 | N518419 | 1 | HOUSING SA | JP | |||
| 3 | 90599860 | 1 | FILTER | JP | |||
| 4 | 90586028 | 2 | SPRING | JP | |||
| 6 | 90595965 | 1 | FOAM | JP | |||
| 7 | 90552394-01 | 1 | CAM | JP | |||
| 8 | 90595599 | 1 | RELEASE | JP | |||
| 9 | 90601102-04 | 1 | CHARGER SA | JP | |||
| 10 | N521354 | 1 | MOTOR & FAN | JP | |||
| 11 | 90594124 | 1 | SEAL | JP | |||
| 13 | 90593413 | 1 | INSERT | JP | |||
| 14 | 90593414 | 1 | SLIDER | JP | |||
| 16 | 90603872 | 1 | BUTTON RELEASE | JP | |||
| 17 | N527337 | 1 | LOCK | JP | |||
| 18 | 90600356 | 1 | MOTOR HOUSING SA | JP | |||
| 19 | N514090 | 1 | BATTERY 10.8V - 1.5AH - 16.2WH | JP | |||
| 20 | 90600833-02 | 1 | COVER | JP | |||
| 21 | N512833 | 1 | LENS | JP | |||
| 22 | 90599861 | 2 | SCREW | JP | |||
| 23 | N812827 | 1 | COVER | JP | |||
| 24 | 90600356 | 1 | MOTOR HOUSING SA | JP | |||
| 25 | 90552441 | 1 | SEAL | JP | |||
| 26 | 90595703-02 | 1 | BOWL | JP | |||
| 27 | 90556061 | 1 | SPRING | JP | |||
| 28 | 499903-00 | 3 | SCREW | JP | |||
| 30 | 90552388 | 1 | PRE-FILTER | JP | |||
| 31 | N566707 | 1 | FILTER | JP | |||
| 32 | N552070 | 1 | HEAD SA | JP | |||
| 33 | N540431 | 1 | TUBE LOWER | JP | |||
| 34 | N540430 | 1 | TUBE UPPER | JP | |||
| 35 | N497822 | 1 | CONNECTOR | JP | |||
| 36 | 90637190 | 1 | HOSE SA | JP | |||
| 37 | 5102312-03 | 1 | TOOL CREVICE | JP | |||
| 38 | 5100458-05 | 1 | TOOL BRUSH | JP | |||
| 39 | 5101486-00 | 4 | ROLLER | JP | |||
| 40 | N542510 | 1 | ADAPTOR | JP | |||
| 41 | N540386 | 1 | ACTUATOR | JP | |||
| 42 | 5102327-00 | 1 | BRUSH | JP | |||
| 43 | 5102328-00 | 6 | SCREW | JP | |||
| 44 | 5102329-00 | 4 | PIN | JP | |||
| 45 | N540406 | 1 | HEAD SA | JP | |||
| 46 | 90621745 | 1 | BAG | JP | |||
| 821 | N825571 | 1 | RATING LABEL | JP |
