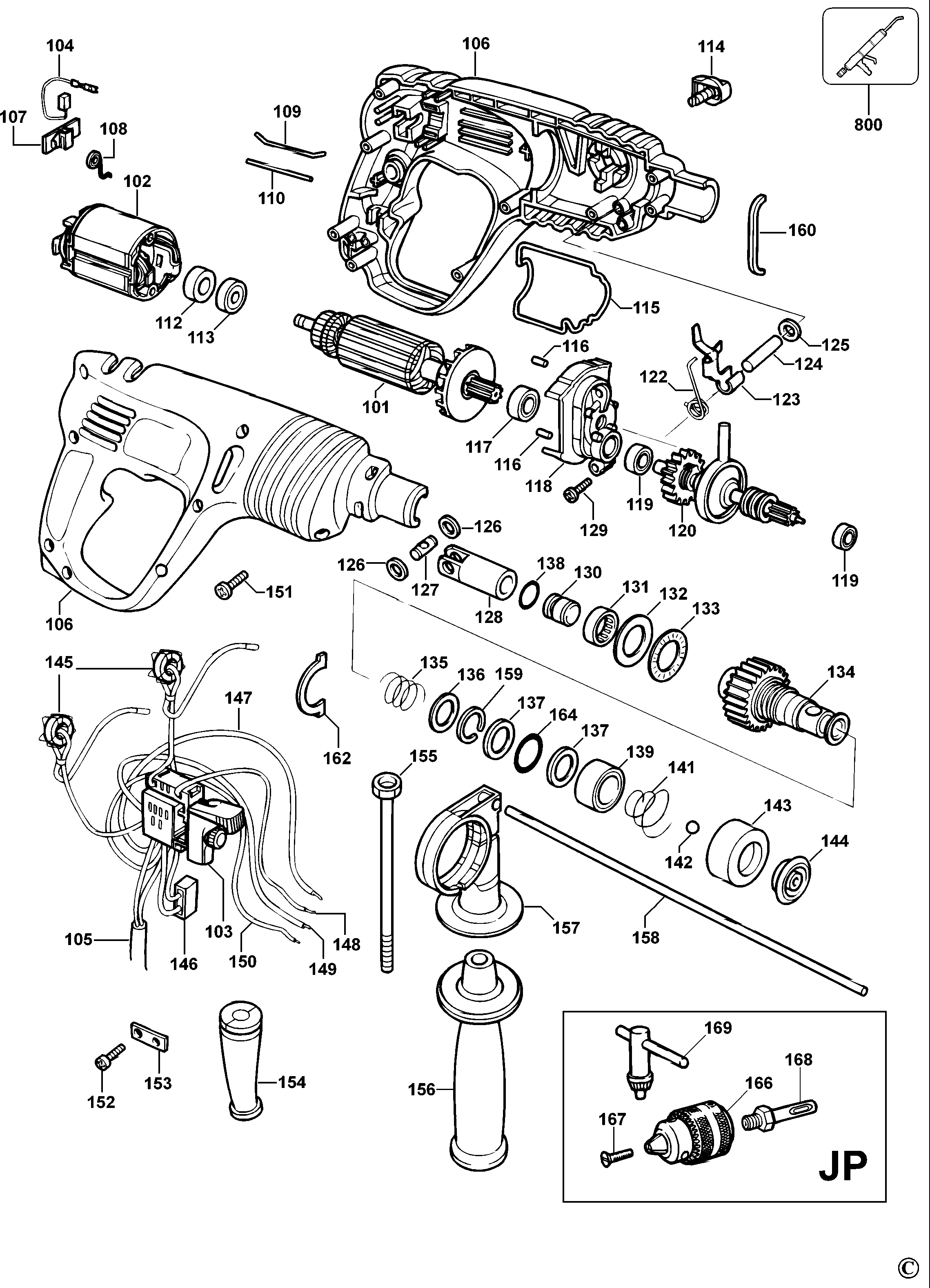

KD950K ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 569301-00 | 1 | ARMATURE 100V | JP | |||
| 102 | 569302-00 | 1 | FIELD SA | JP | |||
| 103 | 569303-00 | 1 | SWITCH SA | JP | |||
| 104 | 568334-00 | 2 | BRUSH | JP | |||
| 105 | 569304-00 | 1 | CORDSET | JP | |||
| 106 | 569148-00 | 1 | CLAMSHELL | JP | |||
| 107 | 568339-00 | 2 | BRUSH HOLDER | JP | |||
| 108 | 568340-00 | 2 | SPRING | JP | |||
| 109 | 568341-00 | 1 | SEAL | JP | |||
| 110 | 568342-00 | 1 | SEAL | JP | |||
| 112 | 568344-00 | 1 | HOLDER | JP | |||
| 113 | 568345-00 | 1 | BEARING | JP | |||
| 114 | 568346-00 | 1 | LEVER SA | JP | |||
| 115 | 568347-00 | 1 | SEAL | JP | |||
| 116 | 568348-00 | 2 | PIN | JP | |||
| 117 | 568349-00 | 1 | BEARING | JP | |||
| 118 | 568350-00 | 1 | GEARCASE SA | JP | |||
| 119 | 568351-00 | 2 | BEARING | JP | |||
| 120 | 568352-00 | 1 | INTERSHAFT SA | JP | |||
| 122 | 568354-00 | 1 | SPRING | JP | |||
| 123 | 568355-00 | 1 | LEVER | JP | |||
| 124 | 568356-00 | 1 | AXLE | JP | |||
| 125 | 568357-00 | 1 | WASHER | JP | |||
| 126 | 568358-00 | 2 | WASHER | JP | |||
| 127 | 568359-00 | 1 | AXLE | JP | |||
| 128 | 568360-00 | 1 | PISTON | JP | |||
| 129 | 568361-00 | 2 | SCREW | JP | |||
| 130 | 568362-00 | 1 | RAM | JP | |||
| 131 | 568363-00 | 1 | BEARING | JP | |||
| 132 | 568364-00 | 1 | WASHER | JP | |||
| 133 | 568365-00 | 1 | THRUST BEARING | JP | |||
| 134 | 568366-00 | 1 | SPINDLE SA | JP | |||
| 135 | 568367-00 | 1 | SPRING | JP | |||
| 136 | 568368-00 | 1 | WASHER | JP | |||
| 137 | 568369-00 | 2 | WASHER | JP | |||
| 138 | 568370-00 | 1 | O RING | JP | |||
| 139 | 568371-00 | 1 | BEARING | JP | |||
| 141 | 568373-00 | 1 | SPRING | JP | |||
| 142 | 568374-00 | 1 | BALL | JP | |||
| 143 | 568375-00 | 1 | SPACER | JP | |||
| 144 | 568376-00 | 1 | LIP SEAL | JP | |||
| 145 | 568377-00 | 2 | LEAD SA | JP | |||
| 146 | 568378-00 | 1 | CAPACITOR | JP | |||
| 147 | 569305-00 | 2 | LEAD | JP | |||
| 148 | 568379-00 | 1 | LEAD | JP | |||
| 149 | 568381-00 | 1 | LEAD | JP | |||
| 150 | 568382-00 | 1 | LEAD | JP | |||
| 151 | 568383-00 | 12 | SCREW | JP | |||
| 152 | 568384-00 | 2 | SCREW | JP | |||
| 153 | 568385-00 | 1 | CORD CLAMP | JP | |||
| 154 | 568386-00 | 1 | CORD PROTECTOR | JP | |||
| 155 | 568387-00 | 1 | BOLT | JP | |||
| 156 | 568388-00 | 1 | SIDE HANDLE | JP | |||
| 157 | 568389-00 | 1 | COLLAR | JP | |||
| 158 | 568390-00 | 1 | DEPTH ROD | JP | |||
| 159 | 568391-00 | 1 | CIRCLIP | JP | |||
| 160 | 568392-00 | 1 | RUBBER SEAL | JP | |||
| 162 | 568393-00 | 1 | RUBBER SEAL | JP | |||
| 164 | 568838-00 | 1 | O RING | JP | |||
| 166 | 569306-00 | 1 | CHUCK | JP | |||
| 167 | 569307-00 | 1 | SCREW.SPECIAL | JP | |||
| 168 | 569308-00 | 1 | ADAPTOR | JP | |||
| 169 | 569309-00 | 1 | CHUCK KEY | JP | |||
| 800 | 870889-02 | 1 | GREASE | JP |
