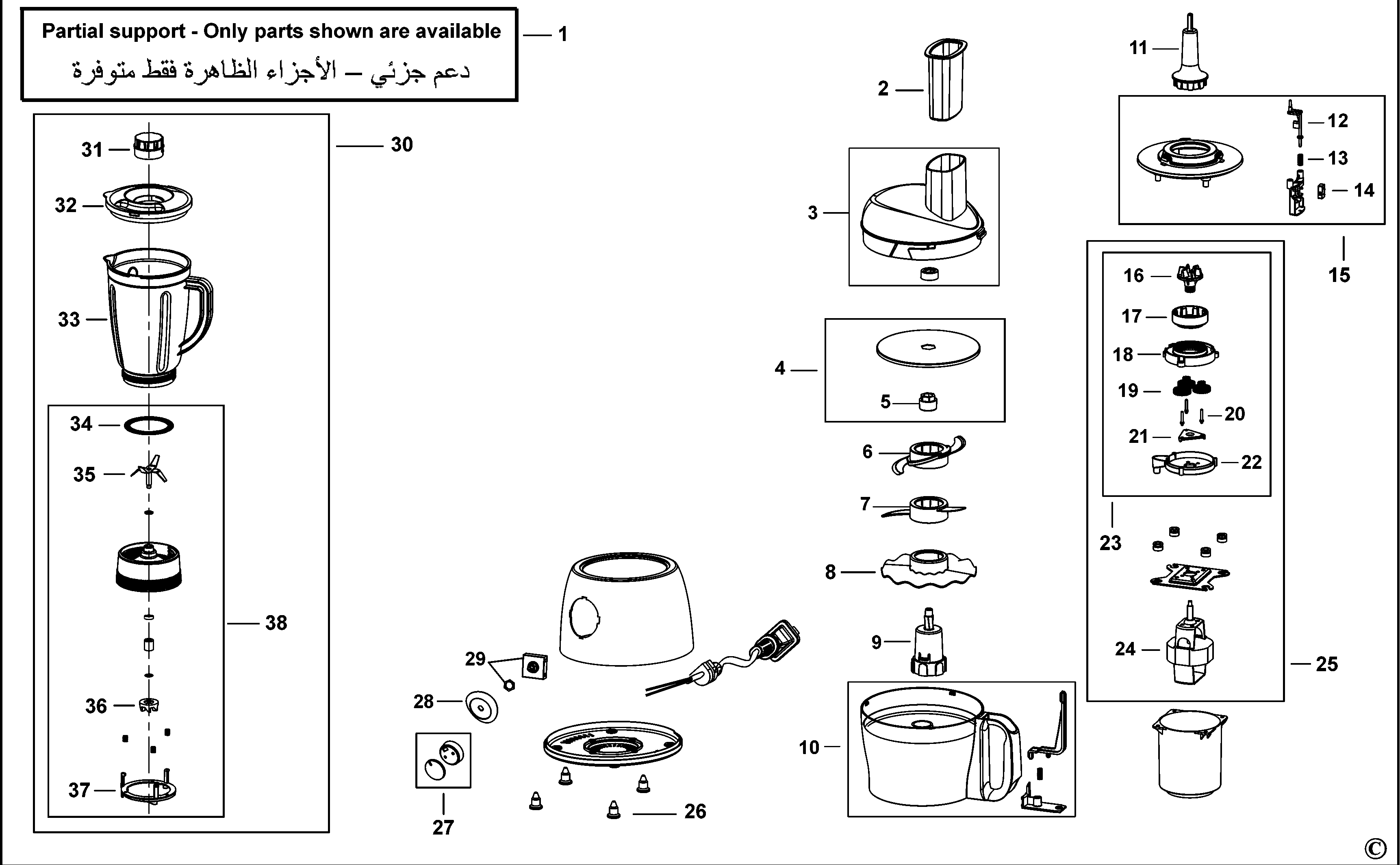

FX400B CHOPPER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 6010403-35 | 1 | PUSHER | B9 | |||
| 3 | 6010403-48 | 1 | LID | B9 | |||
| 4 | 6010403-39 | 1 | DISC | B9 | |||
| 5 | 6010352-90 | 1 | DISC | B9 | |||
| 6 | 6010403-40 | 1 | BLADE | B9 | |||
| 7 | 6010352-92 | 1 | BLADE | B9 | |||
| 8 | 6010403-41 | 1 | BLADE | EMULSIFYING | B9 | ||
| 9 | 6010403-49 | 1 | BLADE HOLDER | B9 | |||
| 10 | 6010352-94 | 1 | BOWL | B9 | |||
| 11 | 6010403-50 | 1 | DRIVE SHAFT | B9 | |||
| 12 | 6010353-02 | 1 | CONNECTING ROD | B9 | |||
| 13 | 6010353-03 | 1 | SPRING | B9 | |||
| 14 | 6010353-04 | 1 | MICRO SWITCH | B9 | |||
| 15 | 6010403-36 | 1 | HOLDER GUIDE | B9 | |||
| 16 | 6010352-96 | 1 | GEAR | B9 | |||
| 17 | 6010352-97 | 1 | GEAR | B9 | |||
| 18 | 6010352-98 | 1 | COVER | B9 | |||
| 19 | 6010353-00 | 3 | WHEEL | B9 | |||
| 20 | 6010356-69 | 3 | SHAFT | B9 | |||
| 21 | 6010356-70 | 1 | RACK | B9 | |||
| 22 | 6010356-71 | 1 | BASE | B9 | |||
| 23 | 6010403-38 | 1 | TRANSMISSION SA | B9 | |||
| 25 | 6010403-37 | 1 | MOTOR SA | B9 | |||
| 26 | 6010403-53 | 4 | FEET | B9 | |||
| 27 | 6010406-43 | 1 | KNOB SA | B9 | |||
| 28 | 6010353-06 | 1 | COVER | B9 | |||
| 29 | 6010353-05 | 1 | SWITCH | B9 | |||
| 30 | 6010403-42 | 1 | JAR | SA | B9 | ||
| 31 | 6010352-61 | 1 | COVER-TOP | B9 | |||
| 32 | 6010403-43 | 1 | LID | B9 | |||
| 33 | 6010403-44 | 1 | JAR | B9 | |||
| 34 | 6010403-45 | 1 | SEAL | B9 | |||
| 35 | 5170022-78 | 1 | BLADE | B9 | |||
| 36 | 6010403-46 | 1 | COUPLING | B9 | |||
| 37 | 6010403-47 | 1 | SUPPORT | B9 | |||
| 38 | 6010403-51 | 1 | BLADE SA | B9 |
