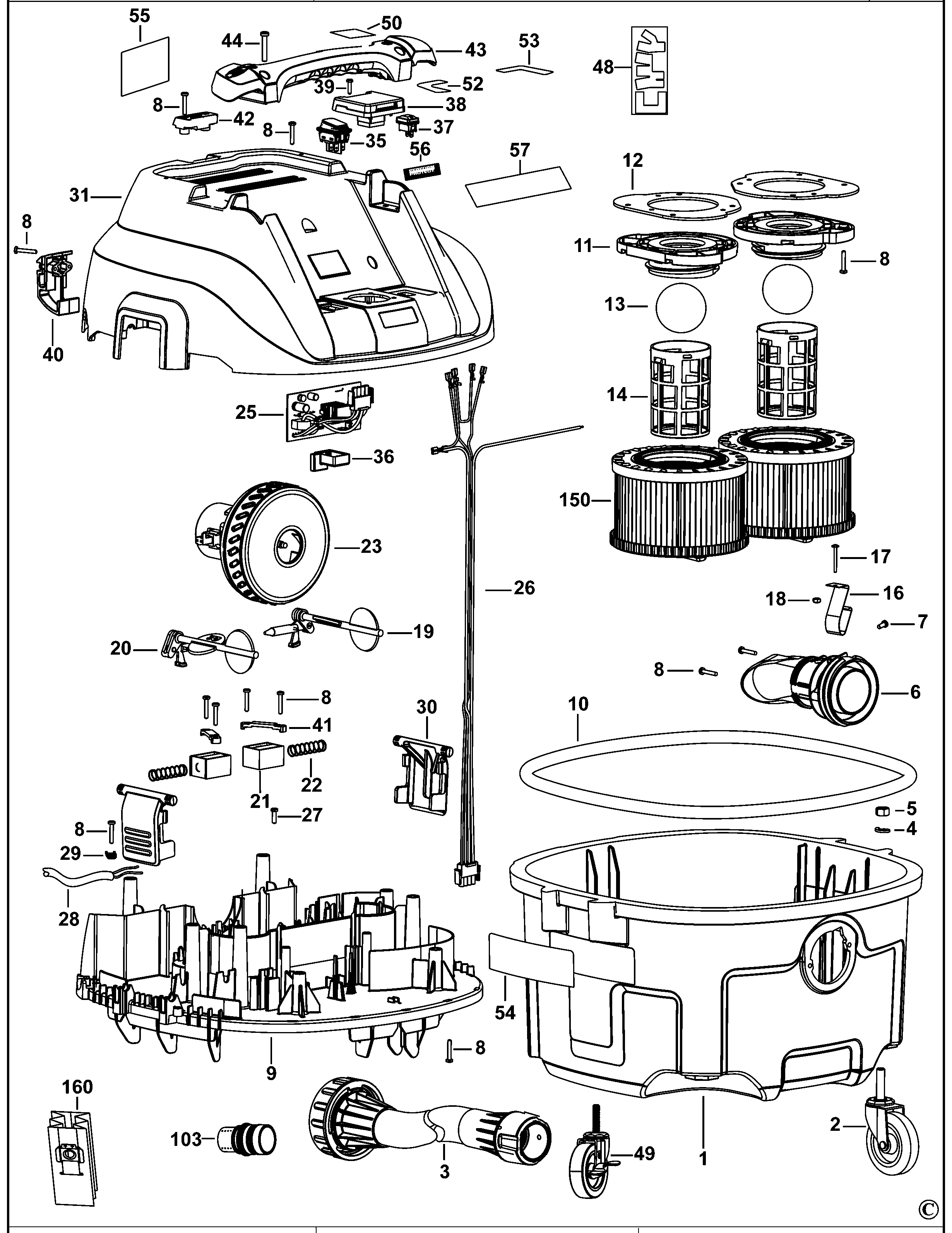

DWV901 VACUUM EXTRACTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N291160 | 1 | TANK | 30LT | KR | ||
| 2 | N289839 | 3 | CASTOR | NON LOCK | KR | ||
| 3 | N431100 | 1 | HOSE SA | KR | |||
| 4 | N371460 | 4 | WASHER LOCK | KR | |||
| 5 | N371459 | 4 | NUT | 3/8 X 16 | KR | ||
| 6 | N294562 | 1 | INLET | KR | |||
| 7 | N142827 | 1 | SCREW | KR | |||
| 8 | 330019-14 | 34 | SCREW | KR | |||
| 10 | N395128 | 1 | GASKET | KR | |||
| 11 | N294525 | 2 | MOUNT | KR | |||
| 12 | N146653 | 2 | GASKET | KR | |||
| 13 | N206771 | 2 | VALVE FLOATING | KR | |||
| 14 | N265199 | 2 | CAGE | KR | |||
| 16 | N137853 | 1 | PLATE | KR | |||
| 17 | N142836 | 1 | SCREW | KR | |||
| 18 | N142838 | 1 | LOCK NUT | KR | |||
| 19 | N409097 | 1 | VALVE | LH | KR | ||
| 20 | N409096 | 1 | VALVE | RH | KR | ||
| 21 | N338941 | 2 | SOLENOID ASSEMBLY | 230V | KR | ||
| 22 | N362634 | 2 | SPRING | KR | |||
| 23 | N483601 | 1 | MOTOR SA 230V | KR | |||
| 25 | N365860 | 1 | CONTROL MODULE SA | 230V | KR | ||
| 26 | N419738 | 1 | LEAD SA | KR | |||
| 27 | 330019-24 | 1 | SCREW | KR | |||
| 28 | N383944 | 1 | CORDSET (EURO) | QS | KR | ||
| 29 | 450877-00 | 1 | CORD CLAMP | KR | |||
| 30 | N294563 | 2 | LATCH | KR | |||
| 31 | N291119 | 1 | HOUSING TOP | KR | |||
| 35 | N296522 | 1 | SWITCH | KR | |||
| 36 | N373779 | 1 | BOOT | SWITCH | KR | ||
| 37 | 656494-00 | 1 | SWITCH | KR | |||
| 38 | N399967 | 1 | OUTLET | KR | |||
| 39 | 330019-03 | 2 | SCREW | KR | |||
| 40 | N378329 | 1 | HOOK | KR | |||
| 41 | N391183 | 2 | STRAP | KR | |||
| 42 | N378050 | 1 | CLAMP | KR | |||
| 43 | N135179 | 1 | HANDLE | KR | |||
| 44 | 330019-21 | 4 | SCREW.TEMP | KR | |||
| 48 | N409100 | 1 | FOAM | KR | |||
| 49 | N380031 | 1 | CASTOR | LOCKING | KR | ||
| 50 | N410277 | 1 | WARNING LABEL | KR | |||
| 52 | N404196 | 1 | LABEL | MAIN SWITCH | KR | ||
| 53 | N404197 | 1 | LABEL | SWITCH CONTROL | KR | ||
| 54 | N405022 | 2 | BRAND LABEL | KR | |||
| 55 | N451448 | 1 | RATING LABEL | KR | |||
| 56 | N177322 | 1 | LABEL | KR | |||
| 57 | N396782 | 1 | WARNING LABEL | KR | |||
| 103 | N070902 | 1 | ADAPTOR | KR | |||
| 150 | N467475 | 2 | FILTER SA | DWV9340 | KR | ||
| 160 | N578449 | 1 | DUST BAG SA | FLEECE | KR |
