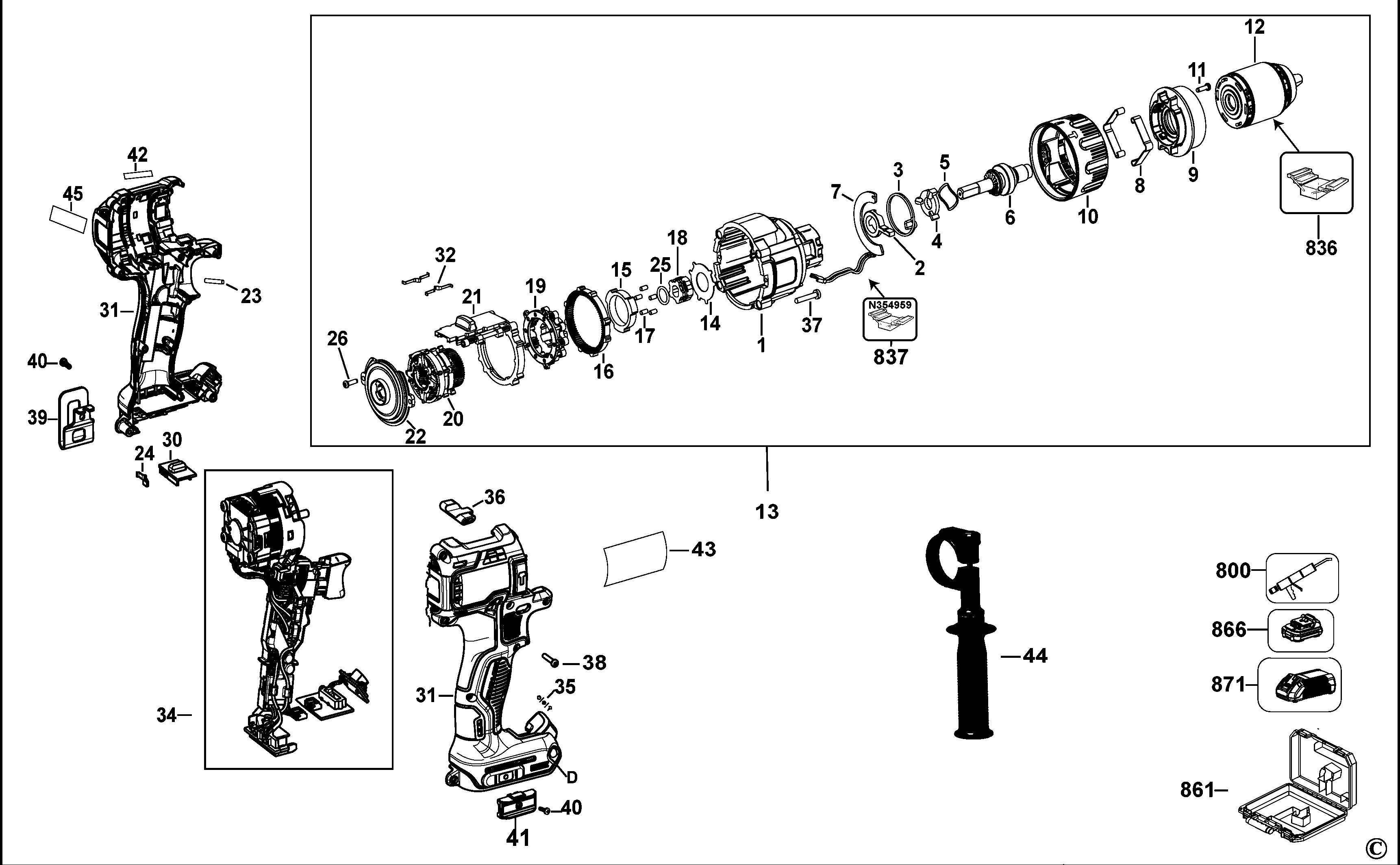

DCD996 CORDLESS DRILL 18V LI-ION Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N484226 | 1 | GEARCASE SA | A9 | |||
| 2 | N146719 | 1 | LEVER | A9 | |||
| 3 | N316079 | 1 | SPRING | A9 | |||
| 4 | N149367 | 1 | GEAR | A9 | |||
| 5 | N269741 | 1 | WASHER SPRING | A9 | |||
| 6 | N481785 | 1 | SPINDLE SA | A9 | |||
| 7 | N481813 | 1 | SENSOR | A9 | |||
| 8 | N165352 | 2 | DETENT | A9 | |||
| 9 | N826871 | 1 | END CAP SA | INC SCREWS | | A9 |
| |
| 9 | N826901 | 1 | END CAP | >=WK29 2020 | A9 | ||
| 10 | N443281 | 1 | COLLAR | A9 | |||
| 11 | N826871 | 1 | END CAP SA | INC SCREWS | | A9 |
| |
| 11 | N691339 | 3 | SCREW | >=WK29 2020 | A9 | ||
| 12 | N454251 | 1 | CHUCK KEYLESS | A9 | |||
| 13 | N470351 | 1 | GEARBOX SA | A9 | |||
| 14 | 652378-00 | 1 | PLATE | A9 | |||
| 15 | N375852 | 1 | LOCKING RING | A9 | |||
| 16 | N375864 | 1 | GEAR | A9 | |||
| 17 | 654110-00 | 5 | ROLLER | A9 | |||
| 18 | N481809 | 1 | ANVIL | A9 | |||
| 19 | N375865 | 1 | GEAR SA | A9 | |||
| 20 | N481798 | 1 | GEAR SA | A9 | |||
| 21 | N375867 | 1 | SLIDER SA | A9 | |||
| 22 | N375868 | 1 | BAFFLE SA | A9 | |||
| 23 | N071836 | 2 | ROLL PIN | A9 | |||
| 24 | N392855 | 1 | DETENT | A9 | |||
| 25 | N309119 | 1 | O RING | A9 | |||
| 26 | N281559 | 2 | SCREW | A9 | |||
| 30 | N393603 | 1 | SELECTOR | A9 | |||
| 31 | N810034 | 1 | CLAMSHELL SA | A9 | |||
| 32 | N014681 | 2 | LEAF SPRING | A9 | |||
| 34 | N481825 | 1 | MOTOR & SWITCH SA | A9 | |||
| 35 | N439418 | 1 | LABEL | A9 | |||
| 36 | N431555 | 1 | ACTUATOR FWD/REV | A9 | |||
| 37 | 330019-52 | 4 | SCREW | A9 | |||
| 38 | 682211-00 | 8 | SCREW | A9 | |||
| 39 | N086039 | 1 | HOOK | A9 | |||
| 40 | N042665 | 2 | SCREW | A9 | |||
| 41 | N095778 | 1 | HOLDER BIT | A9 | |||
| 42 | N237999 | 1 | LABEL | 18V | A9 | ||
| 43 | N596490 | 1 | RATING LABEL | A9 | |||
| 44 | N433408 | 1 | SIDE HANDLE | Length 234 mm | A9 | ||
| 45 | N317859 | 1 | LABEL | BRUSHLESS | A9 | ||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | A9 | ||
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | A9 | |||
| 836 | 596004-99 | 1 | S.T.INSERT | A9 | |||
| 837 | N354959 | 1 | SERVICE TOOL | WIRE HARNESS | A9 | ||
| 861 | N693592 | 1 | KITBOX | A9 | |||
| 866 | DCB182-A9 | 2 | BATTERY 18V - 4.0AH - 72WH | A9 | |||
| 871 | DCB115-A9 | 1 | CHARGER 10.8V - 18V | A9 |
