DCD996 CORDLESS DRILL 18V LI-ION Type 1 | Drawings
Documents

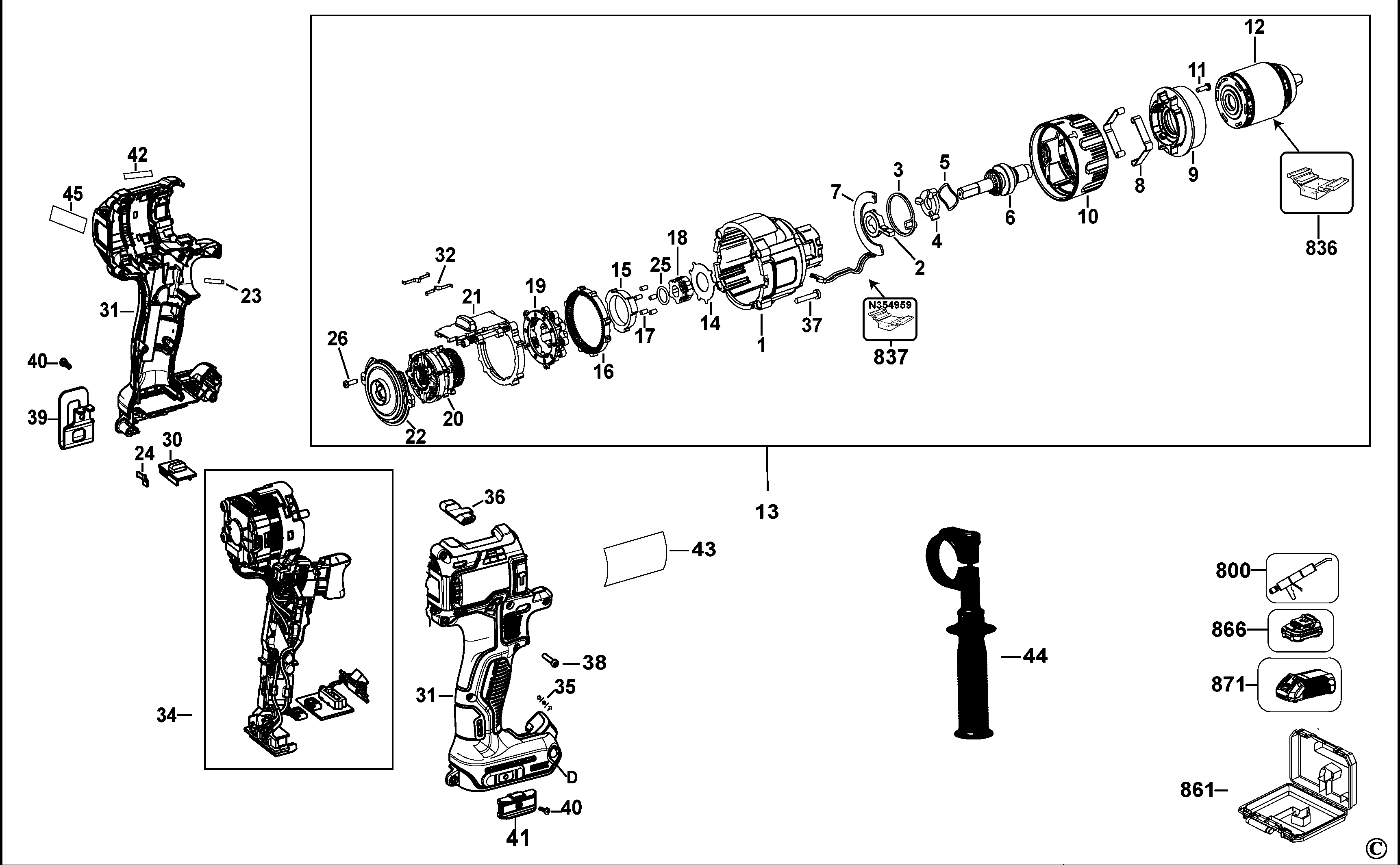

Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N484226 | 1 | GEARCASE SA | TW | |||
| 2 | N146719 | 1 | LEVER | TW | |||
| 3 | N316079 | 1 | SPRING | TW | |||
| 4 | N149367 | 1 | GEAR | TW | |||
| 5 | N269741 | 1 | WASHER SPRING | TW | |||
| 6 | N481785 | 1 | SPINDLE SA | TW | |||
| 7 | N481813 | 1 | SENSOR | TW | |||
| 8 | N165352 | 2 | DETENT | TW | |||
| 9 | N826901 | 1 | END CAP | >=WK29 2020 | TW | ||
| 9 | N826871 | 1 | END CAP SA | INC SCREWS | | TW |
| |
| 10 | N443281 | 1 | COLLAR | TW | |||
| 11 | N691339 | 3 | SCREW | >=WK29 2020 | TW | ||
| 11 | N826871 | 1 | END CAP SA | INC SCREWS | | TW |
| |
| 12 | N454251 | 1 | CHUCK KEYLESS | TW | |||
| 13 | N470351 | 1 | GEARBOX SA | TW | |||
| 14 | 652378-00 | 1 | PLATE | TW | |||
| 15 | N375852 | 1 | LOCKING RING | TW | |||
| 16 | N375864 | 1 | GEAR | TW | |||
| 17 | 654110-00 | 5 | ROLLER | TW | |||
| 18 | N481809 | 1 | ANVIL | TW | |||
| 19 | N375865 | 1 | GEAR SA | TW | |||
| 20 | N481798 | 1 | GEAR SA | TW | |||
| 21 | N375867 | 1 | SLIDER SA | TW | |||
| 22 | N375868 | 1 | BAFFLE SA | TW | |||
| 23 | N071836 | 2 | ROLL PIN | TW | |||
| 24 | N392855 | 1 | DETENT | TW | |||
| 25 | N309119 | 1 | O RING | TW | |||
| 26 | N281559 | 2 | SCREW | TW | |||
| 30 | N393603 | 1 | SELECTOR | TW | |||
| 31 | N810034 | 1 | CLAMSHELL SA | TW | |||
| 32 | N014681 | 2 | LEAF SPRING | TW | |||
| 34 | N481825 | 1 | MOTOR & SWITCH SA | TW | |||
| 35 | N439418 | 1 | LABEL | TW | |||
| 36 | N431555 | 1 | ACTUATOR FWD/REV | TW | |||
| 37 | 330019-52 | 4 | SCREW | TW | |||
| 38 | 682211-00 | 8 | SCREW | TW | |||
| 39 | N086039 | 1 | HOOK | TW | |||
| 40 | N042665 | 2 | SCREW | TW | |||
| 41 | N095778 | 1 | HOLDER BIT | TW | |||
| 42 | N237999 | 1 | LABEL | 18V | TW | ||
| 43 | N517765 | 1 | RATING LABEL | TW | |||
| 44 | N433408 | 1 | SIDE HANDLE | Length 234 mm | TW | ||
| 45 | N317859 | 1 | LABEL | BRUSHLESS | TW | ||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | TW | ||
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | TW | |||
| 836 | 596004-99 | 1 | S.T.INSERT | TW | |||
| 837 | N354959 | 1 | SERVICE TOOL | WIRE HARNESS | TW | ||
| 861 | N693592 | 1 | KITBOX | TW | |||
| 866 | DCB205-TWZZ | 2 | BATTERY | TW | |||
| 871 | DCB115-TW | 1 | CHARGER | TW |
