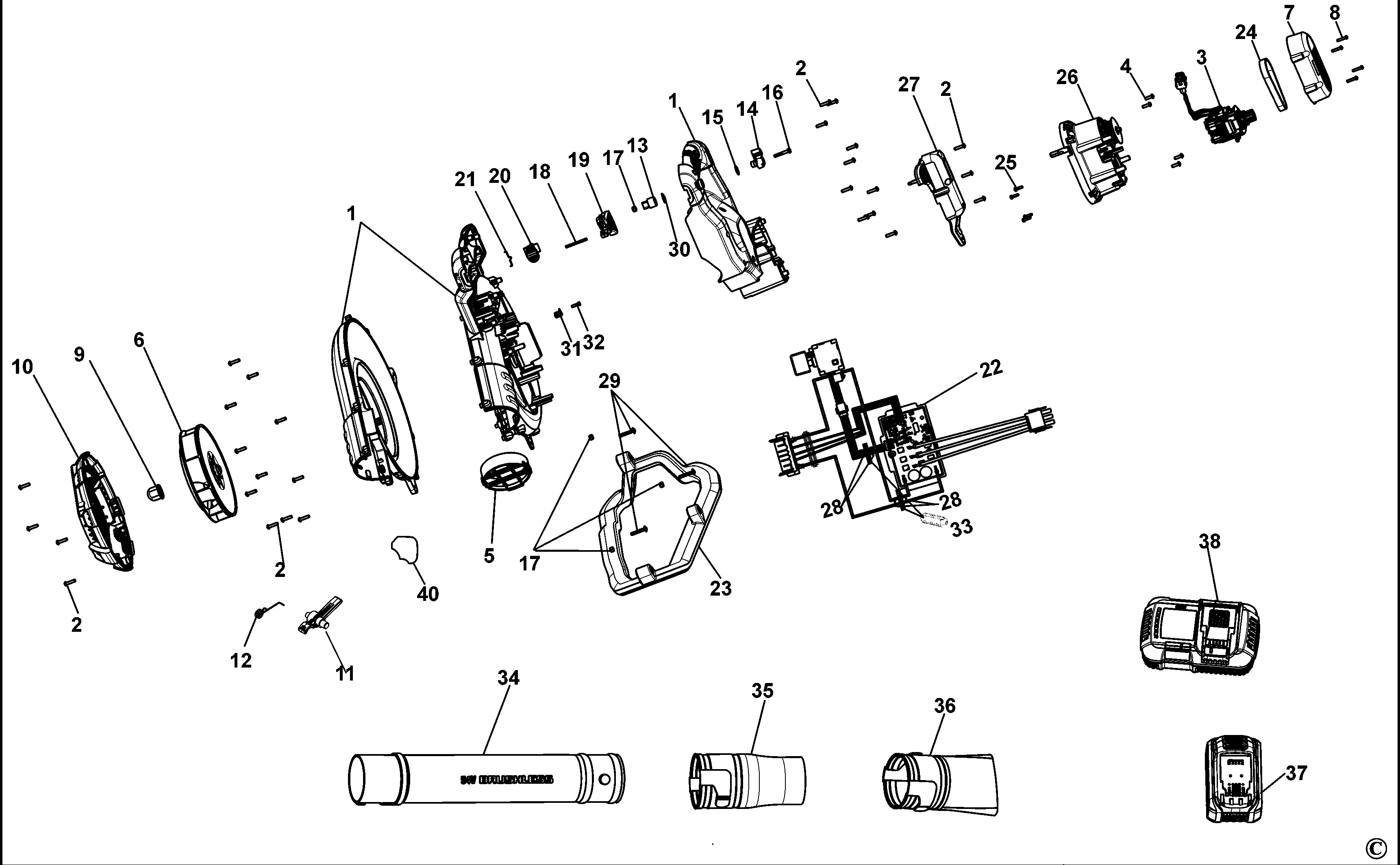

DCM572 BLOWER VAC Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90632092 | 1 | HOUSING | KR | |||
| 2 | 90611830 | 28 | SCREW | KR | |||
| 3 | 90632027 | 1 | MOTOR | KR | |||
| 4 | 90611829 | 4 | SCREW | KR | |||
| 5 | 90638746 | 1 | GRILL | KR | |||
| 6 | 90614555 | 1 | FAN SA | KR | |||
| 7 | 90631881 | 1 | BELT COVER | KR | |||
| 8 | 90611828 | 4 | SCREW | KR | |||
| 9 | 90556361 | 1 | LOCK-NUT | KR | |||
| 10 | 90639117 | 1 | COVER | KR | |||
| 11 | 90605748 | 1 | CLIP | KR | |||
| 12 | 90609997 | 1 | SPRING TORSION | KR | |||
| 13 | 90605734 | 1 | CAM | KR | |||
| 14 | 90605686 | 1 | ACTUATOR | KR | |||
| 15 | 90608646 | 1 | WASHER THRUST | KR | |||
| 16 | 90611827 | 1 | SCREW | M4 X 25 | KR | ||
| 17 | 90610773 | 4 | NUT M4 | KR | |||
| 18 | 90614091 | 1 | PIN | KR | |||
| 19 | 90605685 | 1 | TRIGGER | KR | |||
| 20 | 90610298 | 1 | SWITCH | KR | |||
| 21 | N014681 | 1 | LEAF SPRING | KR | |||
| 22 | N773508 | 1 | MODULE | KR | |||
| 23 | 90628769 | 1 | FOOT | KR | |||
| 24 | 90611527 | 1 | BELT | KR | |||
| 25 | 330019-28 | 4 | SCREW | KR | |||
| 26 | N510859 | 1 | GEAR CASE SA | KR | |||
| 27 | 90631883 | 1 | BATTERY COVER | KR | |||
| 29 | 90638101 | 3 | SCREW | M4x0.7x23.7MM | KR | ||
| 30 | 90605688 | 1 | SPRING | KR | |||
| 31 | 90611771 | 1 | CLIP | KR | |||
| 32 | 330019-31 | 1 | SCREW | KR | |||
| 34 | 90637421 | 1 | TUBE | KR | |||
| 35 | 90632659 | 1 | TOOL | ROUND | KR | ||
| 36 | 90634619 | 1 | TOOL | KR | |||
| 37 | DCB547-KR | 1 | BATTERY PACK 18V | 18V 3.0/9.0AH | KR | ||
| 38 | DCB118-KR | 1 | CHARGER SA | KR | |||
| 40 | N551927 | 1 | RATING LABEL | KR |
