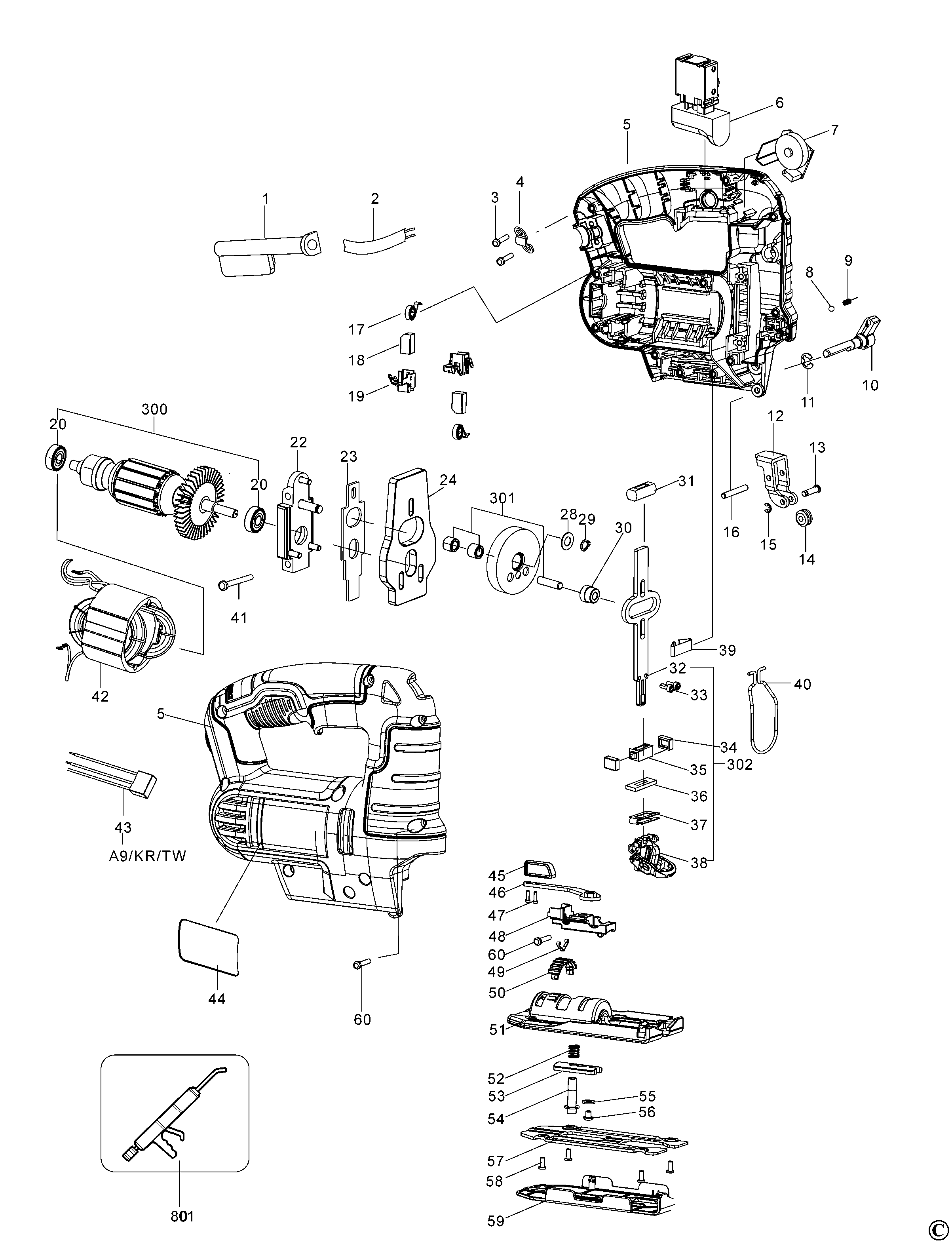

DWE349 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N686256 | 1 | CORD PROTECTOR | TW | |||
| 2 | N871329 | 1 | CORDSET | TW | |||
| 3 | N822470 | 2 | SCREW | TW | |||
| 4 | 4100404604 | 1 | CORD CLAMP | TW | |||
| 5 | N747697 | 1 | HOUSING SA | TW | |||
| 6 | N715263 | 1 | SWITCH | TW | |||
| 7 | N844150 | 1 | PCB CONTROLLER | TW | |||
| 8 | N547089 | 1 | BALL | TW | |||
| 9 | N547090 | 1 | SPRING | TW | |||
| 10 | N688419 | 1 | KNOB | TW | |||
| 11 | N822471 | 1 | RING | TW | |||
| 12 | N688189 | 1 | GUIDE SUPPORT | TW | |||
| 13 | N819789 | 1 | ROLL PIN | TW | |||
| 14 | N547069 | 1 | ROLLER | TW | |||
| 15 | N547073 | 1 | RING | TW | |||
| 16 | N543596 | 1 | PIN | TW | |||
| 17 | 562204-00 | 1 | SPRING | TW | |||
| 18 | N871549 | 1 | BRUSH PAIR | TW | |||
| 19 | N688695 | 2 | BRUSH HOLDER | TW | |||
| 20 | 49111013 | 2 | BEARING | TW | |||
| 22 | N686264 | 1 | PLATE SA | TW | |||
| 23 | N687499 | 1 | SHAFT | TW | |||
| 24 | N543564 | 1 | COUNTER BALANCE | TW | |||
| 28 | N543575 | 1 | WASHER | TW | |||
| 29 | N547068 | 1 | RING | TW | |||
| 30 | N543584 | 1 | DRIVE ROLLER | TW | |||
| 31 | 810893 | 1 | BEARING | TW | |||
| 32 | 479190-00 | 1 | SHAFT | TW | |||
| 33 | N552203 | 2 | SCREW | TW | |||
| 34 | N543592 | 2 | CARRIER | TW | |||
| 35 | N544379 | 1 | BEARING | TW | |||
| 36 | N719332 | 1 | FELT SEAL | TW | |||
| 37 | N719331 | 1 | PLATE | TW | |||
| 38 | 90563039 | 1 | BLADE CLAMP | TW | |||
| 39 | N544380 | 1 | WASHER | TW | |||
| 40 | N688665 | 1 | GUARD | TW | |||
| 41 | N547082 | 2 | SCREW | TW | |||
| 42 | N735628 | 1 | FIELD SA | LV | TW | ||
| 43 | N747956 | 1 | CAPACITOR | TW | |||
| 44 | N814306 | 1 | RATING LABEL | TW | |||
| 45 | N736271 | 1 | LEVER | TW | |||
| 46 | N736267 | 1 | LEVER SA | TW | |||
| 47 | N520083 | 2 | SCREW | TW | |||
| 48 | N736251 | 1 | BLOCK | TW | |||
| 49 | N736250 | 1 | DETENT | TW | |||
| 50 | N736266 | 1 | INSERT | TW | |||
| 51 | N736259 | 1 | SHOE | TW | |||
| 52 | N736258 | 1 | SPRING | TW | |||
| 53 | N736257 | 1 | PLATE LOCK | TW | |||
| 54 | N736248 | 1 | BOLT | TW | |||
| 55 | N736256 | 1 | WASHER | TW | |||
| 56 | N736249 | 1 | SCREW | TW | |||
| 57 | N736264 | 1 | PLATE | TW | |||
| 58 | N736265 | 4 | SCREW | TW | |||
| 59 | N736272 | 1 | COVER | TW | |||
| 60 | N468889 | 11 | SCREW | TW | |||
| 300 | N868597 | 1 | ARMATURE SA | TW | |||
| 301 | N868598 | 1 | GEAR SA | TW | |||
| 302 | N868599 | 1 | SHAFT SA | TW | |||
| 801 | N505291 | 1 | GREASE | TW |
