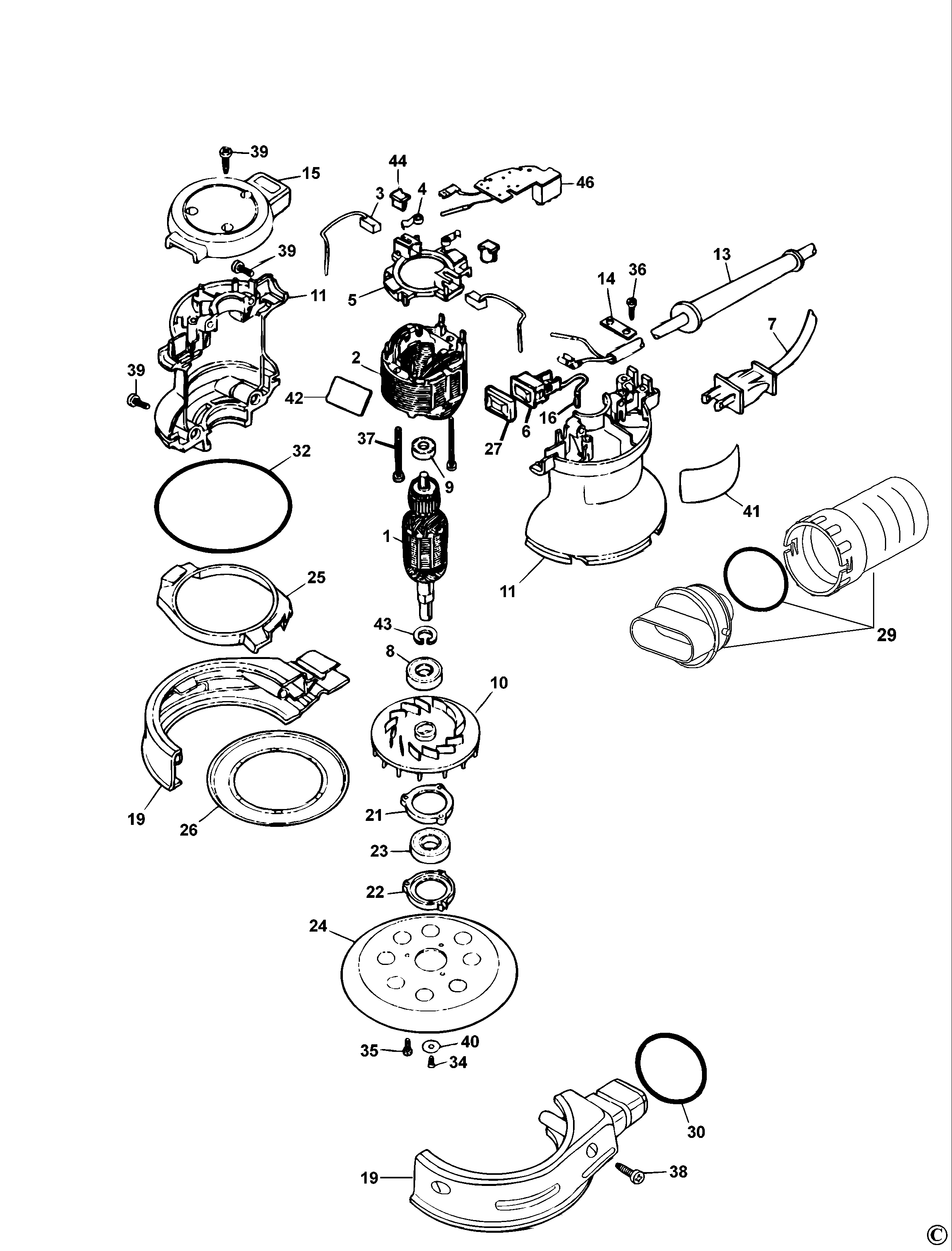

DW421 RANDOM ORBITAL SANDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 578863-04 | 1 | ARMATURE 230V | KR | |||
| 2 | 807254-10 | 1 | FIELD 230V | KR | |||
| 3 | 445861-13 | 2 | BRUSH 230V | KR | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | KR | |||
| 5 | 449899-05 | 1 | RING | KR | |||
| 6 | 656494-00 | 1 | SWITCH | KR | |||
| 6 | 656494-00 | 1 | SWITCH | KR | |||
| 7 | 330120-86 | 1 | CORDSET | KR | |||
| 8 | 330003-17 | 1 | BEARING | KR | |||
| 9 | 605040-05 | 1 | BEARING | KR | |||
| 10 | 151548-01 | 1 | FAN | KR | |||
| 11 | 380382-04 | 1 | CLAMSHELL PAIR | KR | |||
| 13 | 403395-00 | 1 | CORD PROTECTOR | KR | |||
| 14 | 380414-00 | 1 | CORD CLAMP | KR | |||
| 15 | 151670-10 | 1 | CAP | KR | |||
| 16 | 144989-00 | 1 | TERMINAL & LEAD | BLACK, 20GA | KR | ||
| 19 | 610078-00 | 1 | SHROUD SA | KR | |||
| 21 | 603664-00 | 1 | RETAINER | KR | |||
| 22 | 603637-00 | 1 | RETAINER | KR | |||
| 23 | N570313 | 1 | BEARING | KR | |||
| 24 | 151281-08 | 1 | PAD | H&L, 5IN, MEDIUM | KR | ||
| 25 | 151549-00 | 1 | BAFFLE | KR | |||
| 26 | 151553-01 | 1 | Brake | KR | |||
| 27 | 144983-07 | 1 | COVER | KR | |||
| 29 | 386856-00 | 1 | DUST BAG SA | KR | |||
| 30 | 56194-00 | 1 | O RING | KR | |||
| 32 | 700871-00 | 1 | O RING | KR | |||
| 34 | 098012-11 | 1 | SCREW | KR | |||
| 35 | 383516-00 | 3 | SCREW | KR | |||
| 36 | 330019-02 | 2 | SCREW | KR | |||
| 37 | 330019-08 | 2 | SCREW | KR | |||
| 38 | 330019-03 | 2 | SCREW | KR | |||
| 39 | 330019-13 | 7 | SCREW | M4X19 T20 | KR | ||
| 40 | 151652-00 | 1 | WASHER | KR | |||
| 41 | 577385-00 | 1 | BRAND LABEL | KR | |||
| 43 | 151669-00 | 1 | CIRCLIP | KR | |||
| 44 | 144956-00 | 2 | NUT | KR | |||
| 46 | 145283-03 | 1 | PCB | Tyco | KR |
