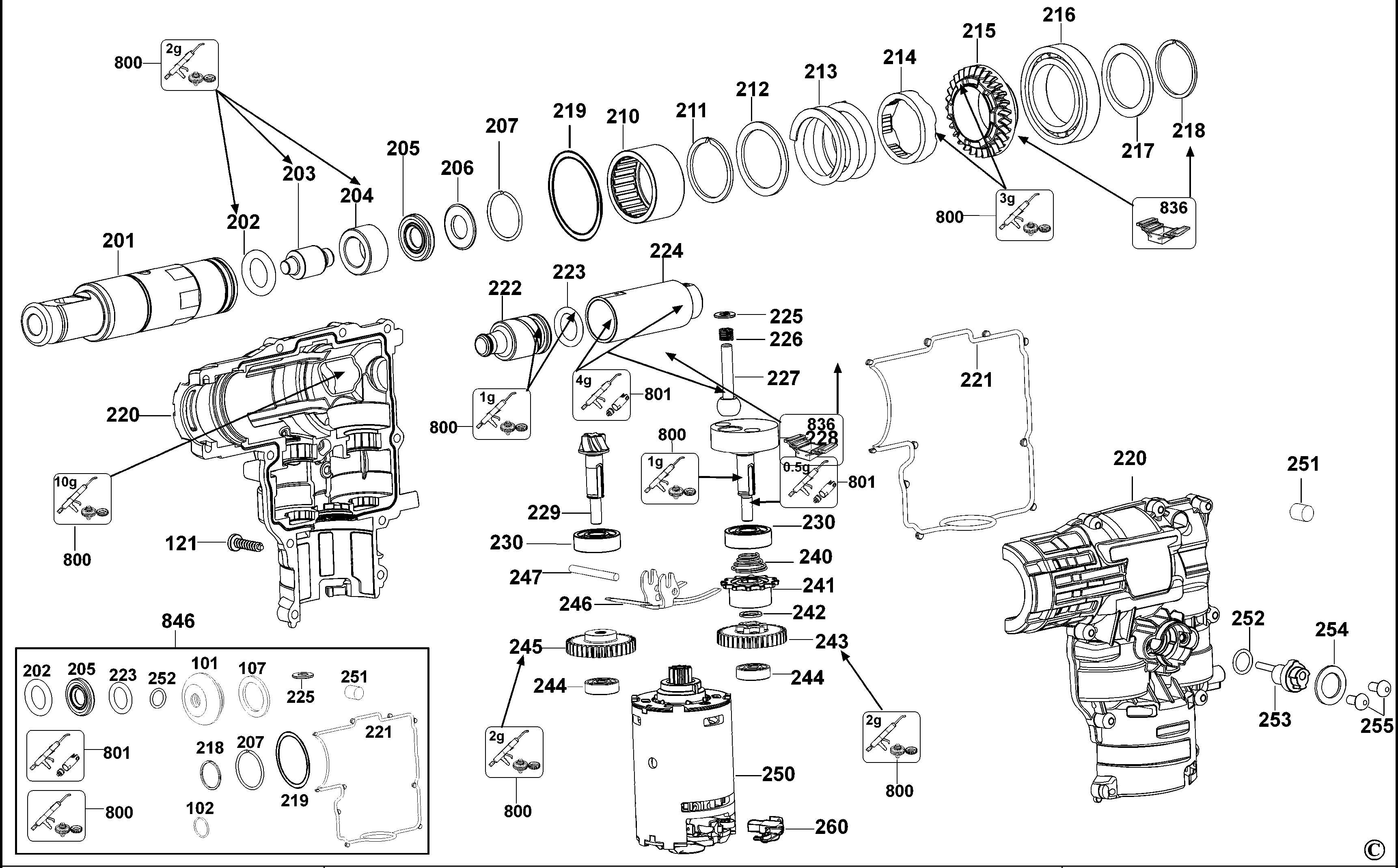

DC212K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 323489-00 | 1 | CAP | KR | |||
| 102 | 579212-00 | 1 | RING | KR | |||
| 103 | 577928-00 | 1 | TUBE | KR | |||
| 104 | 583890-00 | 1 | BALL | KR | |||
| 105 | 578387-00 | 1 | WASHER | KR | |||
| 106 | 871690 | 1 | SPRING | KR | |||
| 107 | 590306-00 | 1 | FELT SEAL | KR | |||
| 110 | 574937-01 | 1 | GEARCASE COVER | 2 mode | KR | ||
| 111 | 490785-00 | 1 | SLEEVE | KR | |||
| 112 | 575023-00 | 1 | SELECTOR | KR | |||
| 113 | 324006-16 | 1 | SCREW | KR | |||
| 114 | 478843-00 | 1 | SPRING | KR | |||
| 115 | 575026-00 | 1 | CAP | KR | |||
| 116 | 575024-00 | 1 | BUTTON RELEASE | KR | |||
| 120 | N191970 | 1 | BATTERY COVER | EMI | KR | ||
| 120 | N191970 | 1 | BATTERY COVER | EMI | KR | ||
| 121 | 330065-08 | 21 | SCREW | M4x18 T20 | KR | ||
| 122 | 578218-00 | 1 | SLIDER | KR | |||
| 123 | 575030-00 | 1 | SPRING | KR | |||
| 124 | 575032-00 | 2 | PIN | KR | |||
| 125 | 479313-00 | 1 | SPRING | KR | |||
| 126 | N191962 | 1 | HANDLE & COVER | EMI Inc129 | KR | ||
| 127 | 1005987-00 | 1 | CHANGE LEVER SA | KR | |||
| 128 | 368832-09 | 1 | SWITCH SA | KR | |||
| 129 | 1006234-00 | 1 | HANDLE COVER | Omega3 | KR | ||
| 131 | 495610-00 | 1 | LEAD BROWN | KR | |||
| 132 | 495610-01 | 1 | LEAD BLACK | KR | |||
| 140 | 930026-01 | 1 | BUMPER | KR | |||
| 160 | 493687-00 | 1 | HANDLE SIDE SA | KR | |||
| 170 | 580787-00 | 1 | DEPTH STOP | KR | |||
| 201 | 492807-00 | 1 | SPINDLE | NQCC | KR | ||
| 202 | 323711-02 | 1 | O RING | KR | |||
| 203 | 492808-00 | 1 | BEAT PIECE | NQCC | KR | ||
| 204 | 492809-00 | 1 | GUIDE BUSH | KR | |||
| 205 | N451068 | 1 | RETAINER | KR | |||
| 206 | 327087-00 | 1 | WASHER | KR | |||
| 207 | 323762-07 | 1 | RING | KR | |||
| 210 | 590302-00 | 1 | BEARING NEEDLE | KR | |||
| 211 | 488105-00 | 1 | CLIP | KR | |||
| 212 | 589350-00 | 1 | WASHER | KR | |||
| 213 | 589346-00 | 1 | SPRING | KR | |||
| 214 | 492817-00 | 1 | BUSH | KR | |||
| 215 | N071966 | 1 | REPAIR KIT | Inc 215, 229, 216 | KR | ||
| 216 | N071966 | 1 | REPAIR KIT | Inc 215, 229, 216 | KR | ||
| 217 | 589348-00 | 1 | WASHER | KR | |||
| 218 | 488390-00 | 1 | CLIP | SW26 1.5mm | KR | ||
| 219 | 491536-00 | 1 | O RING | KR | |||
| 220 | 492821-00 | 1 | HOUSING PAIR | 2 MODE | KR | ||
| 221 | 478909-00 | 1 | SEAL | KR | |||
| 222 | N178363 | 1 | RAM SA | 19mm; Inc 222+223 | KR | ||
| 223 | 577168-00 | 1 | O RING | KR | |||
| 224 | 492822-00 | 1 | PISTON | KR | |||
| 225 | N108992 | 1 | WASHER | KR | |||
| 226 | 490286-00 | 1 | SPRING | KR | |||
| 227 | 492823-00 | 1 | BALL SPINDLE | KR | |||
| 228 | 492824-00 | 1 | CRANKSHAFT | KR | |||
| 229 | N071966 | 1 | REPAIR KIT | Inc 215, 229, 216 | KR | ||
| 230 | 477133-00 | 2 | BEARING,BALL | KR | |||
| 240 | N466046 | 1 | SPRING COMPRESSION | KR | |||
| 241 | 492826-00 | 1 | COLLAR | KR | |||
| 242 | 323763-10 | 1 | LOCKING RING | KR | |||
| 243 | N450704 | 1 | GEAR SA | KR | |||
| 244 | 330003-40 | 1 | BEARING | KR | |||
| 245 | 492827-00 | 1 | GEAR | 2 MODE | KR | ||
| 246 | 575022-00 | 1 | PLATE | KR | |||
| 247 | 590312-00 | 1 | PIN | KR | |||
| 250 | 492829-00 | 1 | MOTOR SA | 18V | KR | ||
| 251 | 582865-00 | 1 | FILTER | KR | |||
| 252 | 323711-34 | 1 | O RING | KR | |||
| 253 | 478898-00 | 1 | LEVER SA | KR | |||
| 254 | 577802-00 | 1 | WASHER SHIM | KR | |||
| 255 | 330065-04 | 2 | SCREW | KR | |||
| 260 | 493511-00 | 1 | BRUSH PAIR | KR | |||
| 800 | 870889-02 | 2 | GREASE | KR | |||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | KR | ||
| 818 | 493152-00 | 1 | LABEL | 18V | KR | ||
| 821 | 576660-00 | 1 | RATING PLATE | DCH 212 | KR | ||
| 821 | 000000-00 | 1 | NO LONGER AVAILABLE | KR | |||
| 821 | 642311-00 | 1 | RATING PLATE | XE | KR | ||
| 821 | 576660-13 | 1 | RATING PLATE | KR | |||
| 836 | 596006-99 | 1 | S.T.CIRCLIP REMOVER | KR | |||
| 836 | 596007-99 | 1 | S.T.CIRCLIP INSERTER | KR | |||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | KR | |||
| 846 | N178341 | 1 | SERVICE KIT | NQCC | KR | ||
| 861 | 574931-20 | 1 | KITBOX | KR | |||
| 866 | DE9096 | 1 | BATTERY 18V - 2.4AH | Ni-Cad | DC212KA | KR | |
| 866 | 1006628-00 | 1 | BATTERY 18V - 2.6AH | DC212KB | KR | ||
| 866 | 1006623-00 | 1 | BATTERY 18V - 2.0AH - 36WH | DC212KA | KR | ||
| 870 | DE9116 | 1 | CHARGER 7.2V - 18V | Ni-Cad - NiMH - 1 hr | DC212KA | KR | |
| 870 | 572576-00 | 1 | CHARGER 7.2V - 18V | DC212KA - DC212KB | KR | ||
| 870 | 572576-01 | 1 | CHARGER 7.2V - 18V | DC212KA - DC212KB | KR |
