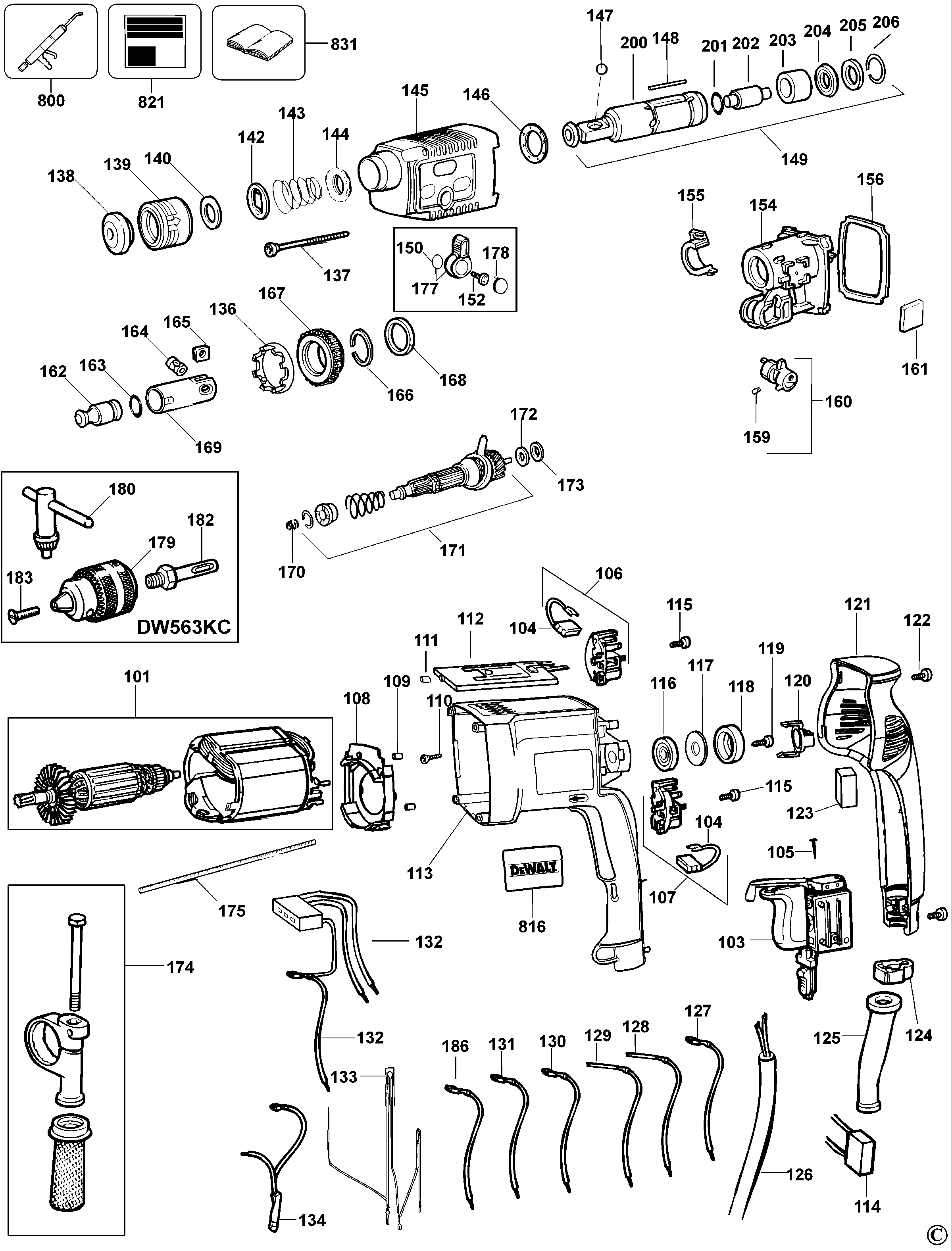

DW563K ROTARY HAMMER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 585289-04 | 1 | ARMATURE 115V | TW | |||
| 102 | 585290-04 | 1 | FIELD 115V | TW | |||
| 103 | 176830-19 | 1 | SWITCH | TW | |||
| 104 | 401853-00 | 2 | BRUSH 115V | TW | |||
| 105 | 590480-00 | 1 | PIN | TW | |||
| 106 | 403222-02 | 1 | BRUSH HOLDER | TW | |||
| 107 | 403222-05 | 1 | BRUSH HOLDER | TW | |||
| 108 | 327293-00 | 1 | BAFFLE FAN | TW | |||
| 109 | 949638-01 | 2 | BUFFER | TW | |||
| 110 | 747329 | 2 | SCREW | TW | |||
| 113 | 327290-05 | 1 | HOUSING SA | Yellow | TW | ||
| 115 | 330065-07 | 2 | SCREW | TW | |||
| 116 | 330003-19 | 1 | BEARING | TW | |||
| 117 | 949876-25 | 1 | WASHER | TW | |||
| 118 | 870052 | 1 | SLEEVE | TW | |||
| 119 | 329794-00 | 1 | SCREW | TW | |||
| 120 | 327296-00 | 1 | CAP | TW | |||
| 121 | 327298-01 | 1 | SWITCH COVER | TW | |||
| 122 | 330065-07 | 3 | SCREW | TW | |||
| 123 | 930026-01 | 1 | BUMPER | TW | |||
| 124 | 402648-00 | 1 | CORD CLAMP | TW | |||
| 125 | 403395-00 | 1 | CORD PROTECTOR | TW | |||
| 126 | 330113-05 | 1 | CORDSET | TW | |||
| 131 | 329645-01 | 1 | LEAD BROWN | TW | |||
| 133 | 493785-00 | 1 | CHOKE SA | TW | |||
| 134 | 945402-19 | 1 | CHOKE SA | TW | |||
| 136 | 327110-00 | 1 | SPACER | TW | |||
| 137 | 324044-02 | 4 | SCREW | TW | |||
| 138 | 323489-00 | 1 | CAP | TW | |||
| 139 | 576756-00 | 1 | COLLAR | TW | |||
| 142 | 578387-00 | 1 | WASHER | TW | |||
| 143 | 871690 | 1 | SPRING | TW | |||
| 144 | 324432-00 | 1 | SEAL SA | TW | |||
| 145 | 329968-00 | 1 | GEARCASE SA | TW | |||
| 146 | 329907-00 | 1 | WASHER | TW | |||
| 147 | 583890-00 | 1 | BALL | TW | |||
| 148 | 325880-05 | 1 | PIN | TW | |||
| 149 | 577080-01 | 1 | SPINDLE SA | TW | |||
| 150 | 916323 | 1 | O RING | TW | |||
| 152 | 323924-08 | 1 | SCREW | TW | |||
| 154 | 327100-00 | 1 | CASTING SA | TW | |||
| 155 | 328507-00 | 1 | SHIELD | TW | |||
| 156 | 323572-00 | 1 | SEAL | TW | |||
| 159 | 326467-00 | 1 | DETENT | TW | |||
| 160 | 327094-01 | 1 | CAM | TW | |||
| 161 | 327093-00 | 1 | FILTER | TW | |||
| 162 | N032136 | 1 | RAM SA | TW | |||
| 163 | 577168-00 | 1 | O RING | TW | |||
| 164 | 487143-00 | 1 | AXLE | TW | |||
| 165 | 327072-00 | 1 | SHIM | TW | |||
| 166 | 323762-02 | 1 | CIRCLIP | TW | |||
| 167 | 487401-01 | 1 | CLUTCH SA | TW | |||
| 168 | 327074-00 | 1 | RING | TW | |||
| 169 | 487067-00 | 1 | PISTON | TW | |||
| 170 | 323395-33 | 1 | SPRING | TW | |||
| 171 | 327101-01 | 1 | INTERSHAFT SA | TW | |||
| 172 | 324430-03 | 1 | BEARING AXIAL | TW | |||
| 173 | 324431-03 | 1 | WASHER 7 | TW | |||
| 174 | 939794-02 | 1 | HANDLE SIDE SA | TW | |||
| 175 | 580787-00 | 1 | DEPTH STOP | TW | |||
| 177 | 327119-00 | 1 | LEVER | TW | |||
| 178 | 328809-00 | 1 | COVER | TW | |||
| 800 | 870889-02 | 1 | GREASE | TW | |||
| 816 | 395047-00 | 1 | BRAND LABEL | TW | |||
| 821 | 495636-00 | 1 | RATING PLATE | TW |
