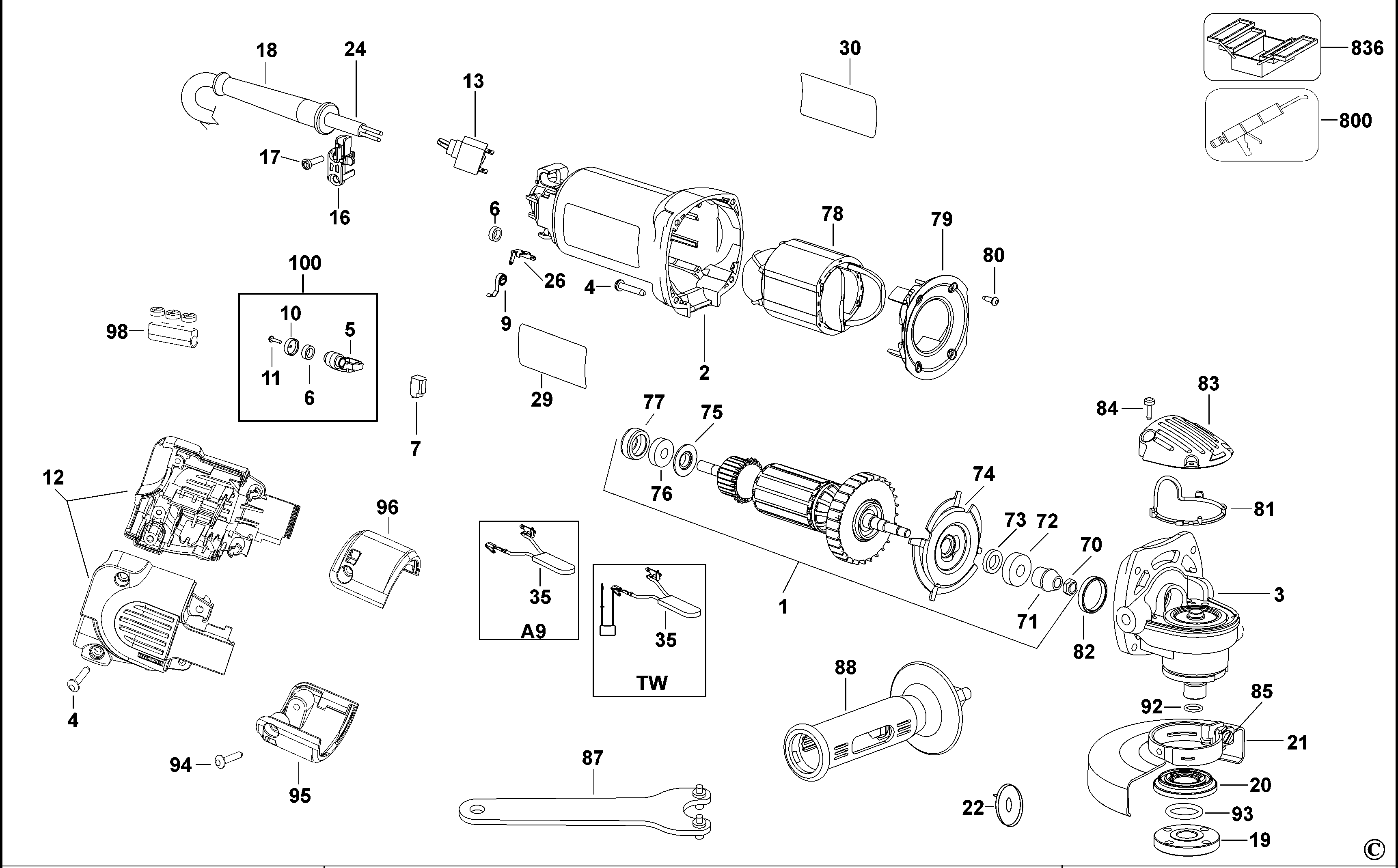

D28803 SMALL ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N014340 | 1 | ARMATURE 120V | TW | |||
| 2 | N025289 | 1 | FIELDCASE | CAD | TW | ||
| 2 | N025289 | 1 | FIELDCASE | CAD | TW | ||
| 3 | 623586-08 | 1 | GEARCASE SA | TW | |||
| 4 | 330065-31 | 6 | PLASTIC SCREW | TW | |||
| 5 | 648743-00 | 2 | ARM | BRUSH | TW | ||
| 6 | 623592-00 | 4 | FELT SEAL | TW | |||
| 7 | N035673 | 1 | BRUSH PAIR 120V | TW | |||
| 9 | 648613-00 | 2 | BRUSH SPRING | TW | |||
| 10 | 623591-00 | 2 | BRUSH CAP | TW | |||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | TW | ||
| 12 | N191768 | 1 | HANDLE SA | TW | |||
| 13 | N032282 | 1 | SWITCH | TW | |||
| 16 | 652147-00 | 1 | CORD CLAMP | TW | |||
| 17 | 330019-03 | 2 | SCREW | TW | |||
| 18 | 403395-00 | 1 | CORD PROTECTOR | TW | |||
| 19 | 656927-00 | 1 | NUT | TW | |||
| 20 | 636573-00 | 1 | INNER FLANGE | TW | |||
| 21 | 636734-00 | 1 | GUARD SA | TW | |||
| 22 | 639694-00 | 1 | WASHER SPECIAL | TW | |||
| 24 | 330113-15 | 1 | CORDSET | TW | |||
| 26 | 623593-00 | 2 | TERMINAL | TW | |||
| 29 | 655535-00 | 1 | RATING PLATE | TW | |||
| 30 | 635892-00 | 1 | BRAND LABEL | TW | |||
| 30 | 628885-00 | 1 | BRAND LABEL | TW | |||
| 35 | 655061-01 | 1 | CAPACITOR | TW | |||
| 70 | 604484-00 | 1 | NUT | TW | |||
| 71 | 657180-00 | 1 | PINION | TW | |||
| 72 | 605040-11 | 1 | BEARING,BALL | 608 (8 x 22 x 7) | TW | ||
| 73 | 623617-00 | 1 | FELT SEAL | TW | |||
| 74 | N422242 | 1 | RETAINER | TW | |||
| 75 | 623613-00 | 1 | WASHER | TW | |||
| 76 | 605040-02 | 1 | BEARING | TW | |||
| 77 | 641823-00 | 1 | SLEEVE | TW | |||
| 78 | 624764-13 | 1 | FIELD SA | TW | |||
| 79 | 623572-00 | 1 | BAFFLE FAN | TW | |||
| 79 | 650997-00 | 1 | BAFFLE FAN | TW | |||
| 80 | 330065-25 | 4 | SCREW | TW | |||
| 80 | 626360-00 | 4 | SCREW | M3 x 10 | TW | ||
| 81 | 623618-00 | 1 | GASKET | TW | |||
| 82 | 611492-00 | 1 | SLEEVE | TW | |||
| 83 | 623562-00 | 1 | GEARCASE COVER | TW | |||
| 84 | 385676-01 | 4 | SCREW | TW | |||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | TW | ||
| 87 | 401253-00 | 1 | WRENCH ROUND-PINS | TW | |||
| 88 | N401305 | 1 | SIDE HANDLE | TW | |||
| 92 | 637162-01 | 1 | O RING | TW | |||
| 93 | 637162-00 | 1 | O RING | TW | |||
| 94 | 330065-33 | 2 | SCREW | TW | |||
| 95 | N019967 | 1 | BRUSH COVER | TW | |||
| 96 | N019966 | 1 | BRUSH COVER | TW | |||
| 98 | 655615-00 | 1 | TERMINAL BLOCK | TW | |||
| 100 | 656374-00 | 1 | BRUSH HOLDER SA | INCL - 5, 6, 10, 11 | TW | ||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | TW | ||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | TW | ||
| 836 | 233804-36 | 1 | DRIVER | T6 | TW |
