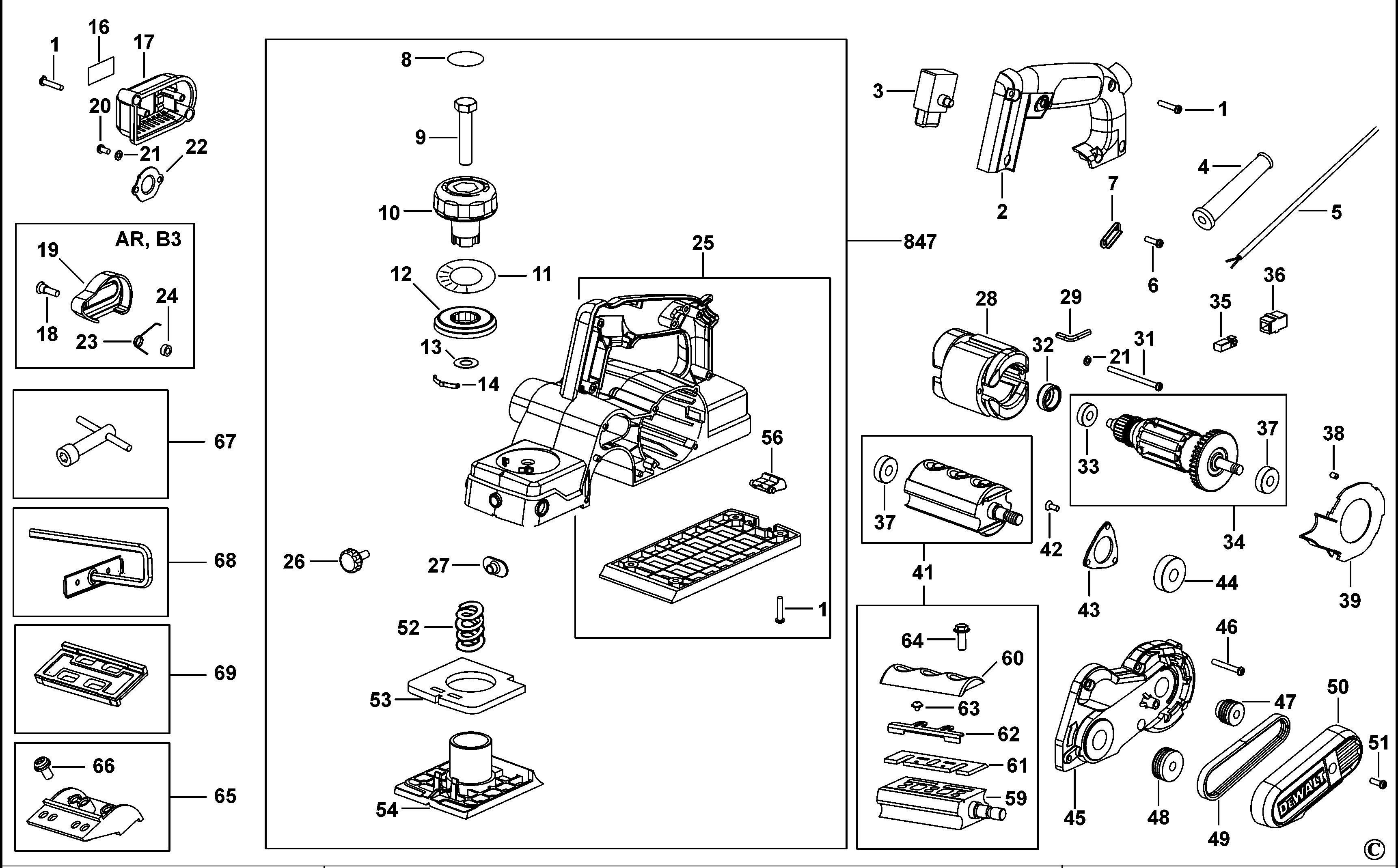

D26676 PLANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 663234-00 | 11 | SCREW | A9 | |||
| 2 | 663235-00 | 1 | HANDLE COVER | A9 | |||
| 3 | 663236-00 | 1 | SWITCH | A9 | |||
| 4 | 663238-00 | 1 | CORD PROTECTOR | A9 | |||
| 5 | 663241-00 | 1 | CORDSET | A9 | |||
| 6 | 663246-00 | 2 | SCREW | M4 x 14 | A9 | ||
| 7 | 663247-00 | 1 | CORD CLAMP | A9 | |||
| 8 | 663248-00 | 1 | LABEL | A9 | |||
| 9 | 663249-00 | 1 | BOLT | A9 | |||
| 10 | 663250-00 | 1 | GRIP | A9 | |||
| 11 | 663251-00 | 1 | SCALE | A9 | |||
| 12 | 663252-00 | 1 | COVER | A9 | |||
| 13 | 663253-00 | 1 | WASHER | A9 | |||
| 14 | 663254-00 | 1 | LEAF SPRING | A9 | |||
| 16 | N631280 | 1 | RATING LABEL | A9 | |||
| 17 | 663264-00 | 1 | COVER REAR | A9 | |||
| 18 | 663265-00 | 1 | SCREW | A9 | |||
| 19 | 663266-00 | 1 | GUARD RH | A9 | |||
| 20 | 663267-00 | 2 | SCREW | A9 | |||
| 21 | 663268-00 | 4 | WASHER SPRING | A9 | |||
| 22 | 663269-00 | 1 | COVER BEARING | A9 | |||
| 23 | 663270-00 | 1 | SPRING | A9 | |||
| 24 | 663271-00 | 1 | SPACER | A9 | |||
| 25 | N039175 | 1 | HOUSING SA | A9 | |||
| 26 | 663273-00 | 1 | KNOB | A9 | |||
| 27 | 663274-00 | 1 | NUT | A9 | |||
| 28 | 663276-00 | 1 | FIELD 220/240V | A9 | |||
| 29 | 663277-00 | 1 | ELBOW TUBE | A9 | |||
| 31 | 663278-00 | 2 | SCREW | A9 | |||
| 32 | 663279-00 | 1 | HOLDER BEARING | A9 | |||
| 33 | 663280-00 | 1 | BEARING | A9 | |||
| 34 | N039177 | 1 | ARMATURE 220/240V | A9 | |||
| 35 | N040350 | 1 | BRUSH PAIR 230V SA | A9 | |||
| 36 | 663284-00 | 2 | BRUSH HOLDER | A9 | |||
| 37 | 663285-00 | 2 | BEARING | A9 | |||
| 38 | 663286-00 | 1 | BUNG | A9 | |||
| 39 | 663287-00 | 1 | FAN COVER | A9 | |||
| 41 | N039180 | 1 | CUTTER BLOCK SA | A9 | |||
| 42 | 663295-00 | 3 | SCREW | A9 | |||
| 43 | 663296-00 | 1 | CLAMP | A9 | |||
| 44 | 663297-00 | 1 | BEARING | A9 | |||
| 45 | 663298-00 | 1 | BRACKET | A9 | |||
| 46 | 663299-00 | 6 | SCREW | A9 | |||
| 47 | 663300-00 | 1 | PULLEY,ARMATURE | A9 | |||
| 48 | 663301-00 | 1 | PULLEY SHAFT | A9 | |||
| 49 | 663302-00 | 1 | BELT DRIVE | A9 | |||
| 50 | 663303-00 | 1 | BELT COVER | A9 | |||
| 51 | 663304-00 | 1 | SCREW | A9 | |||
| 52 | 663305-00 | 1 | SPRING COMPRESSION | A9 | |||
| 53 | 663306-00 | 1 | SEAL | A9 | |||
| 54 | 663307-00 | 1 | SHOE | A9 | |||
| 56 | 663309-00 | 1 | TAILSTOCK | A9 | |||
| 58 | 663310-00 | 1 | CONDENSOR | A9 | |||
| 59 | 663289-00 | 1 | CUTTER BLOCK | A9 | |||
| 60 | 663290-00 | 2 | BLADE CLAMP | A9 | |||
| 61 | 663291-00 | 2 | BLADE | A9 | |||
| 62 | 663292-00 | 2 | ADJUSTER | A9 | |||
| 63 | 663293-00 | 4 | SCREW | A9 | |||
| 64 | 663294-00 | 6 | BOLT | A9 | |||
| 65 | 663311-00 | 1 | RETAINER SA | A9 | |||
| 66 | 663312-00 | 4 | SCREW | A9 | |||
| 67 | 663313-00 | 1 | WRENCH SPECIAL | A9 | |||
| 68 | 663314-00 | 1 | FENCE | A9 | |||
| 69 | 663315-00 | 1 | GAUGE | A9 | |||
| 847 | N039181 | 1 | HOUSING REPAIR KIT | A9 |
